Bimec TCA/64C year 2017
Bimec TCA/64C is a slitter rewinder designed to work with LDPE, BOPP, OPP, CPP, PET, PVC, PET+ALU+LDPE, HDPE. Machine’s maximum speed is 600 meters per minute.
Bimec TCA/64C year 2017
- Brand: Bimec
- Model: TCA/64C
- Year: 2017
- Materials: LDPE, BOPP, OPP, CPP, PET, PVC, PET+ALU+LDPE, HDPE
- Double Turret Rewinder
- Maximum width: 1350 mm
- Maximum parent roll diameter: 1000 mm
- Maximum finished roll diameter: 610 mm
- Maximum parent roll weight: 1500 kg
- Minimum cutting width: 45 mm (the owner successfully ran 36 mm and 42 mm widths for tea packaging)
- System for batch roll lifting and arm movement

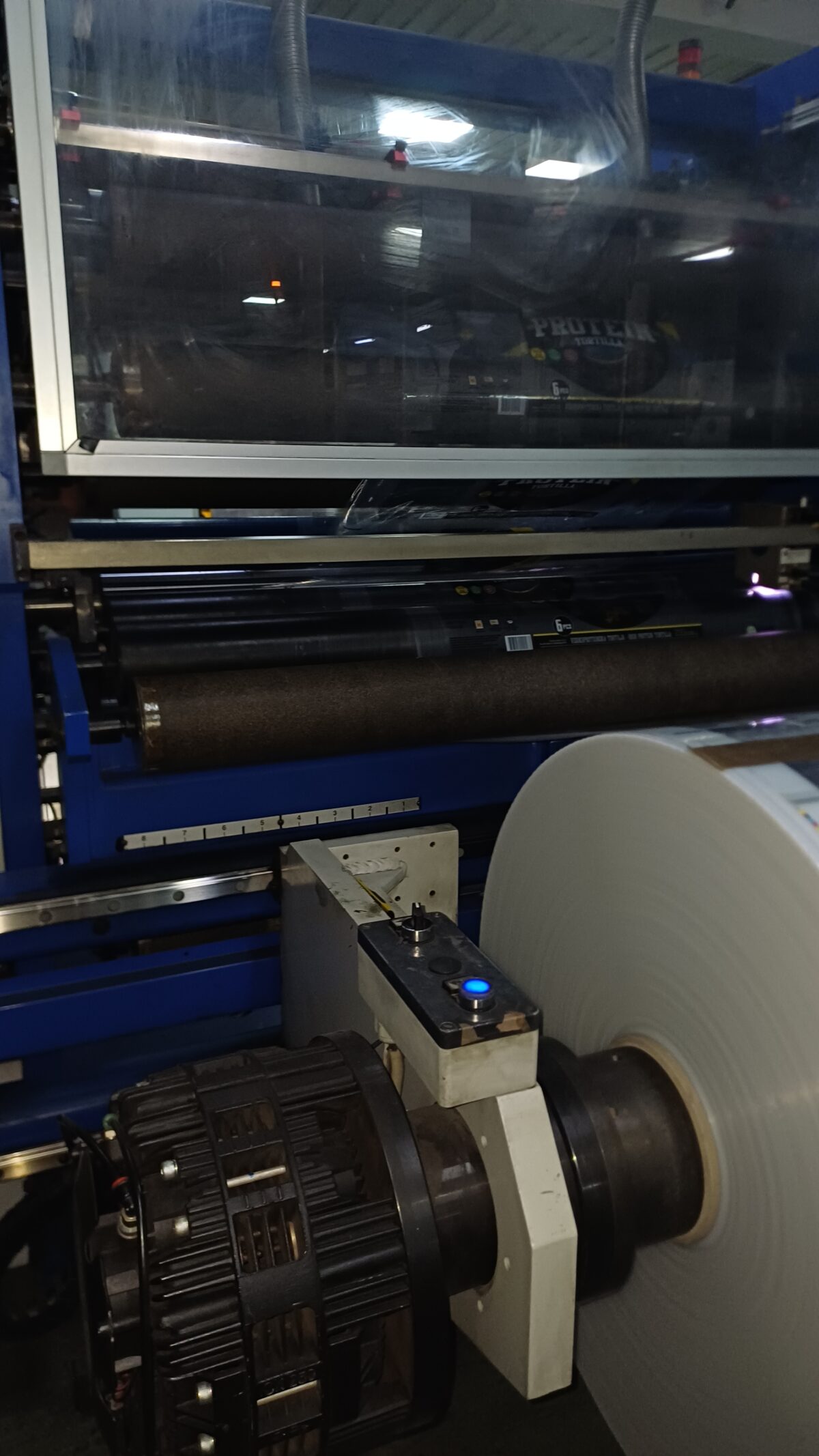

- Shaftless unwinder chuck – 76 and chuck adaptors for 152 mm
- Shaft rewinder core: 76 mm
- Unwind stand side shift: ±50
- Main AC. asynchronous motor
- Rewind AC. asynchronous motor
- Rotating turret AC. gearmotor
- System automatic web guide FIFE with line sensor SE-46C
- Servo ventilated pneumatic brake
- Unwind tension control by dancer roller
- 12 female knives included
- Digital manual razor blade holder and female knife positioning system (by means of laser pointer)
- Trim exhauster AR5C (4 Kw) with pipes, nozzles and silencer
- Programmable rewinding tension control
- Cross cutting system at rewind
- Computerised control system by and operator panel (Siemens 12’’ touch screen)
- Max load capacity per shaft 300 kg in case of multislitting; 230 kg in case of slit in 2 finished reels.
- Core positioning system through manual laser beam system
- Set of antistatic bars complete with feeder

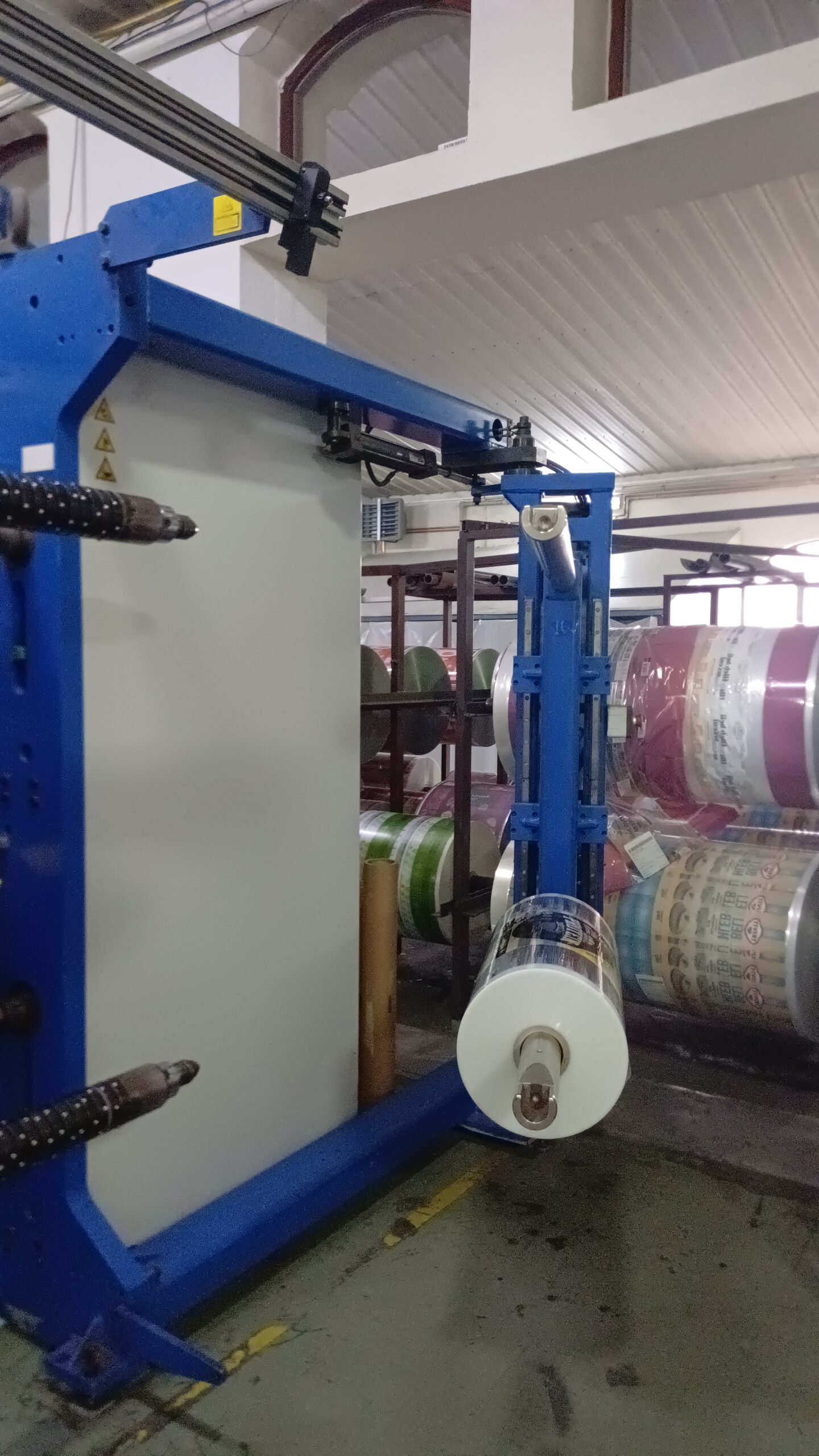

- Side stand model SBP 1.0 with 45° rotation with respect to the vertical axis for the quick unloading of the rewound rolls (up to 900 mm web width)
- Ethernet card for remote fault/help by Bimec engineers or intercompany (for PLC diagnostic only)
- Control panel incorporated in the machine
- All drivers are Parker and Siemens. HMI is Siemens
- Speed: 600 m/min
- No CE certificate
- Voltage : 400 V, 3 phase, 50 Hz. (L1 + L2 + L3 + PE, without neutral)
- Visible in production
- Immediately available
