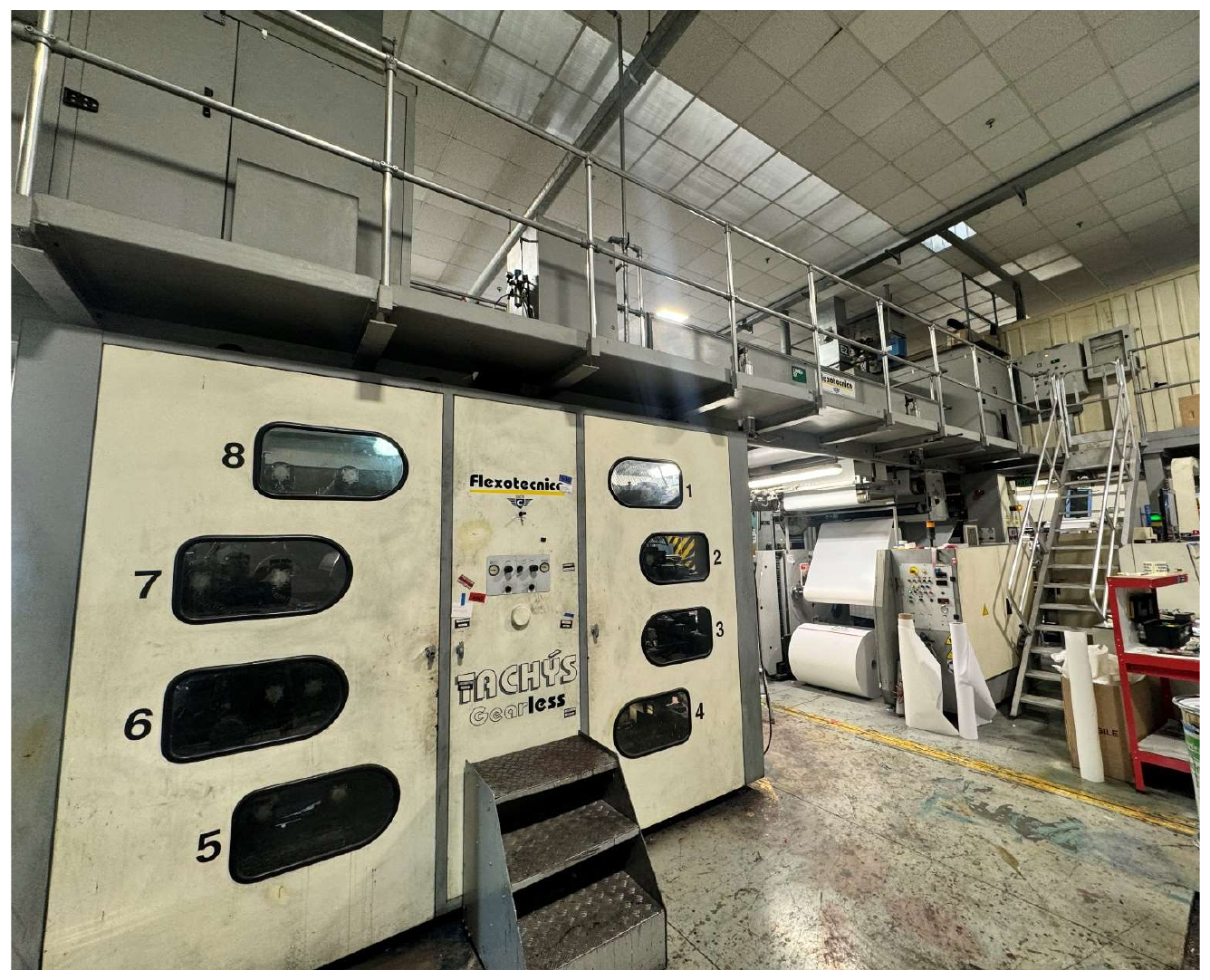

Flexotecnica Tachys Gearless 8 colors
Flexotecnica Tachys is gearless flexo printer of 8 colors. The machine is designed to work with film.
Flexotecnica Tachys Gearless 8 colors
- Brand: Flexotecnica
- Model: Tachys
- Year: 2003
- C.I.
- Gearless
- 8 colors (8+0)
- Min – max web width: 550 – 1050 mm
- Printing width: 1000 mm

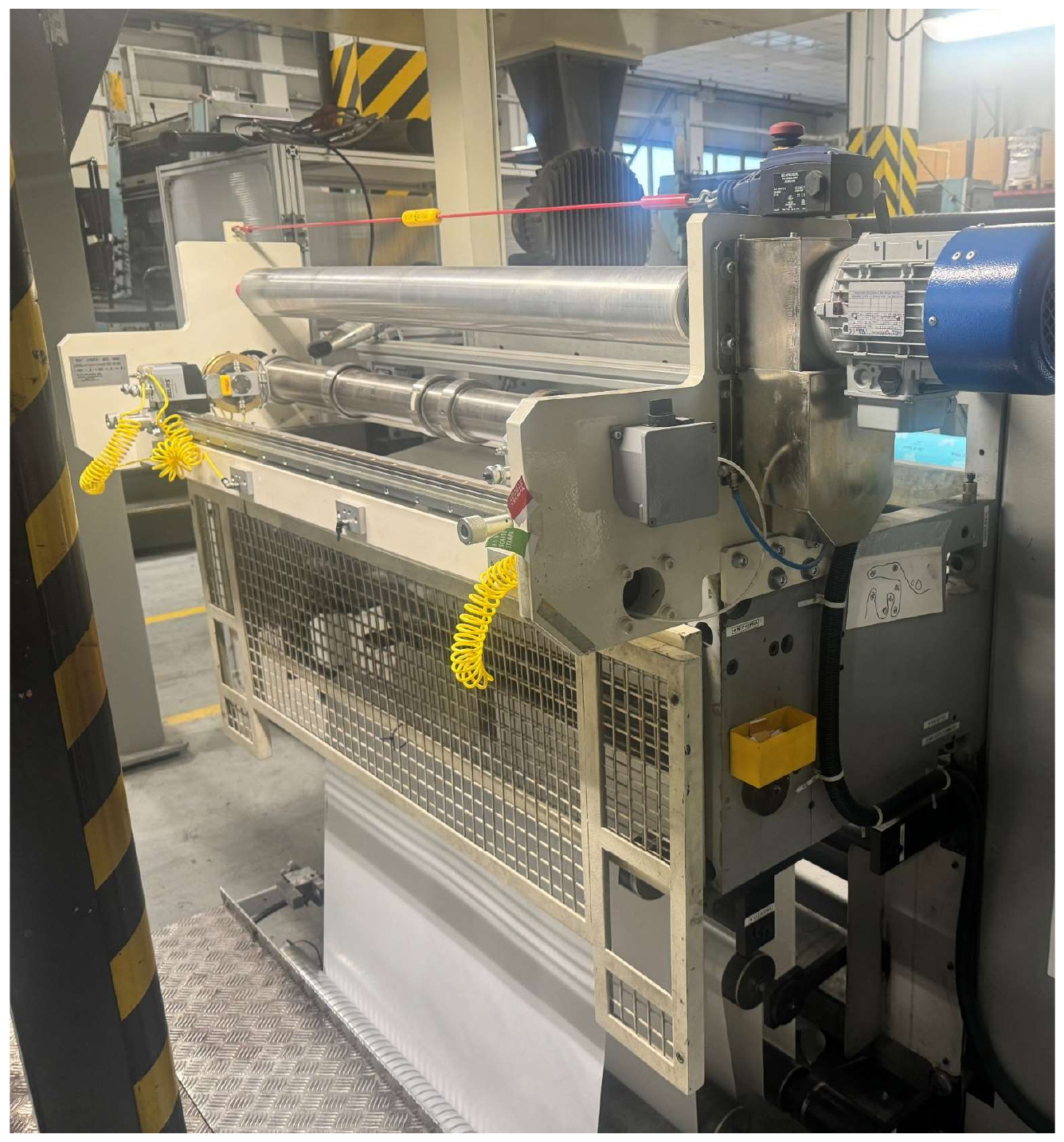

- Automatic unwinder, 800 mm diameter
- Automatic rewinder , 800 mm diameter
- Inner core diameter unwinder and rewinder: Ø70/90 ±0.5 mm, Ø76/96±0.5 mm, Ø153/182 (adaptors)mm, plates 1.14 mm, adhesive tapes 0.55 mm
- Central drum is double-walled cylinder in steel, 1700 mm diameter, with water circulation for drum conditioning. Drum surface is protected with Hastalloy coating
- Sleeve anilox: diameter: 150 mm

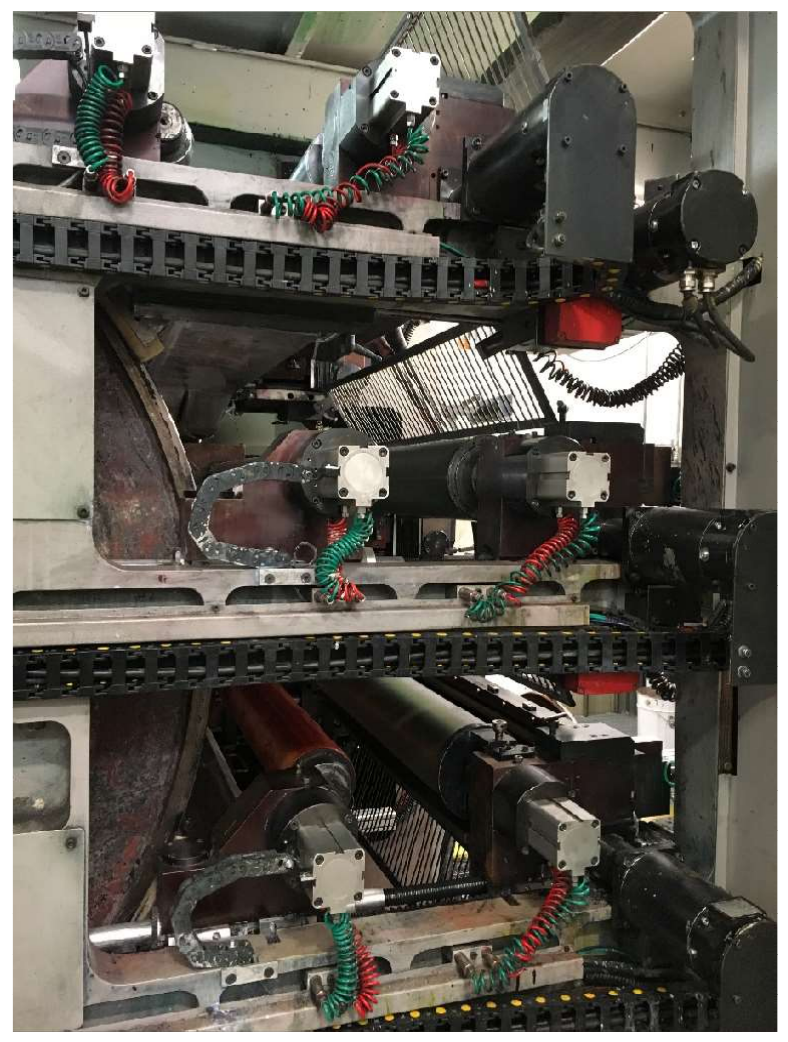

- Printing cylinder circumference range: 340 – 740 mm
- Sleeve circumference – plates 1,14: 1 x 340, 1 x 360, 1 x 380, 1 x 390, 1 x 400, 1 x 410, 1 x 420, 1 x 440, 1 x 450, 1 x 460, 1 x 470, 1 x 480, 1 x 500, 1 x 510, 1 x 520, 1 x 530, 1 x 540, 1 x 560, 1 x 580, 1 x 600, 1 x 610, 1 x 620, 1 x 640, 1 x 660, 1 x 670, 1 x 680, 1 x 690, 1 x 700
- Sleeve circumference – plates 2,84: 380 n.8

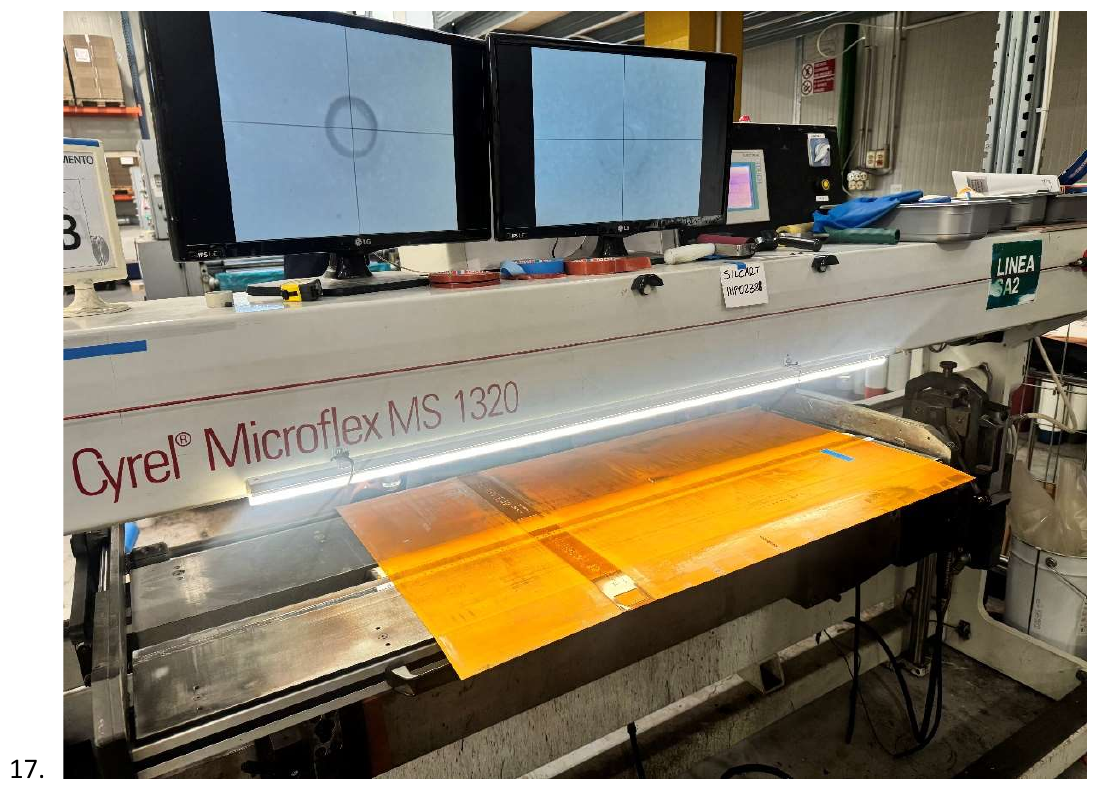

- DuPont Cyrel Microflex MS 1320 plate mounter

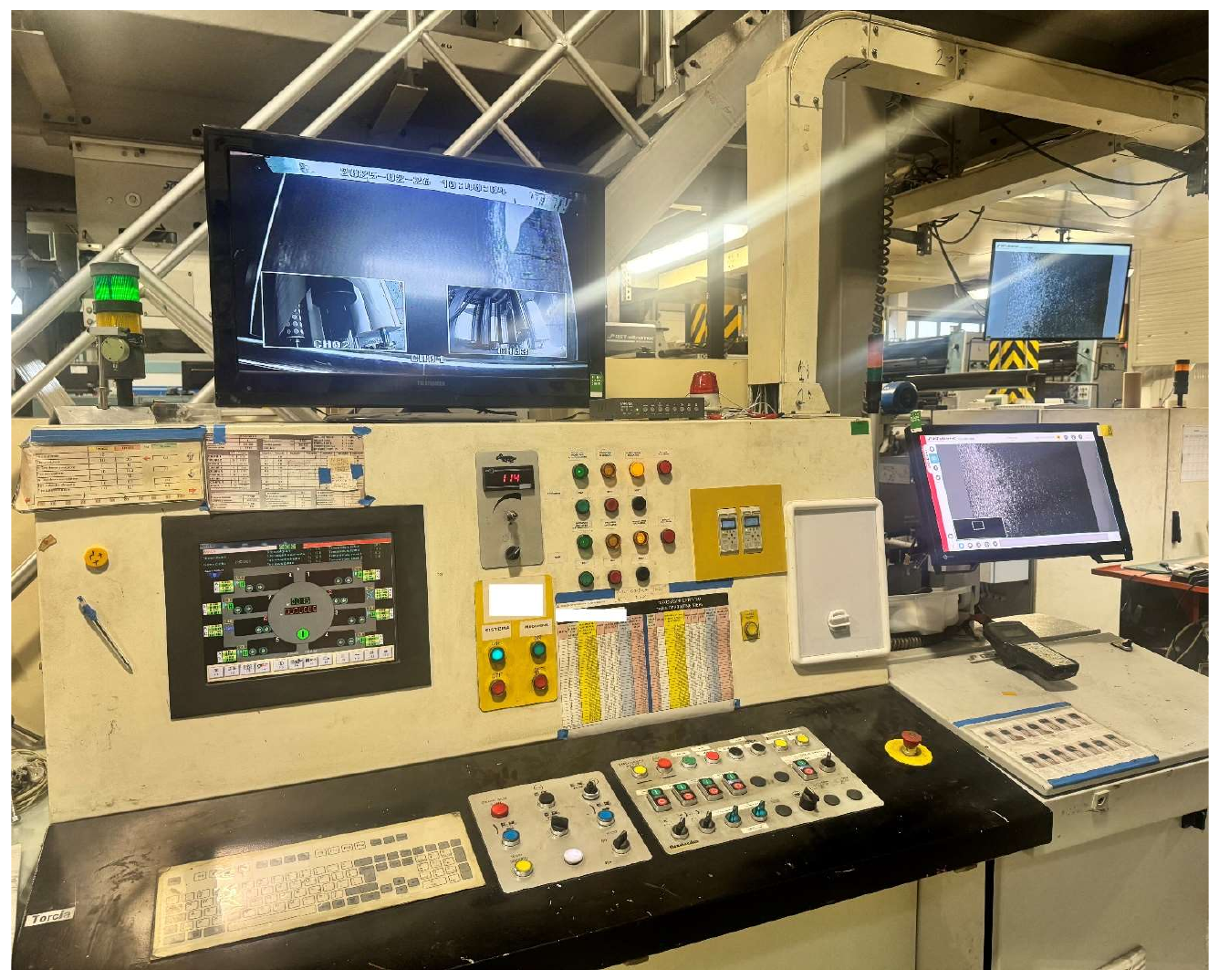

- Control desk with press control and monitor for the FNC system

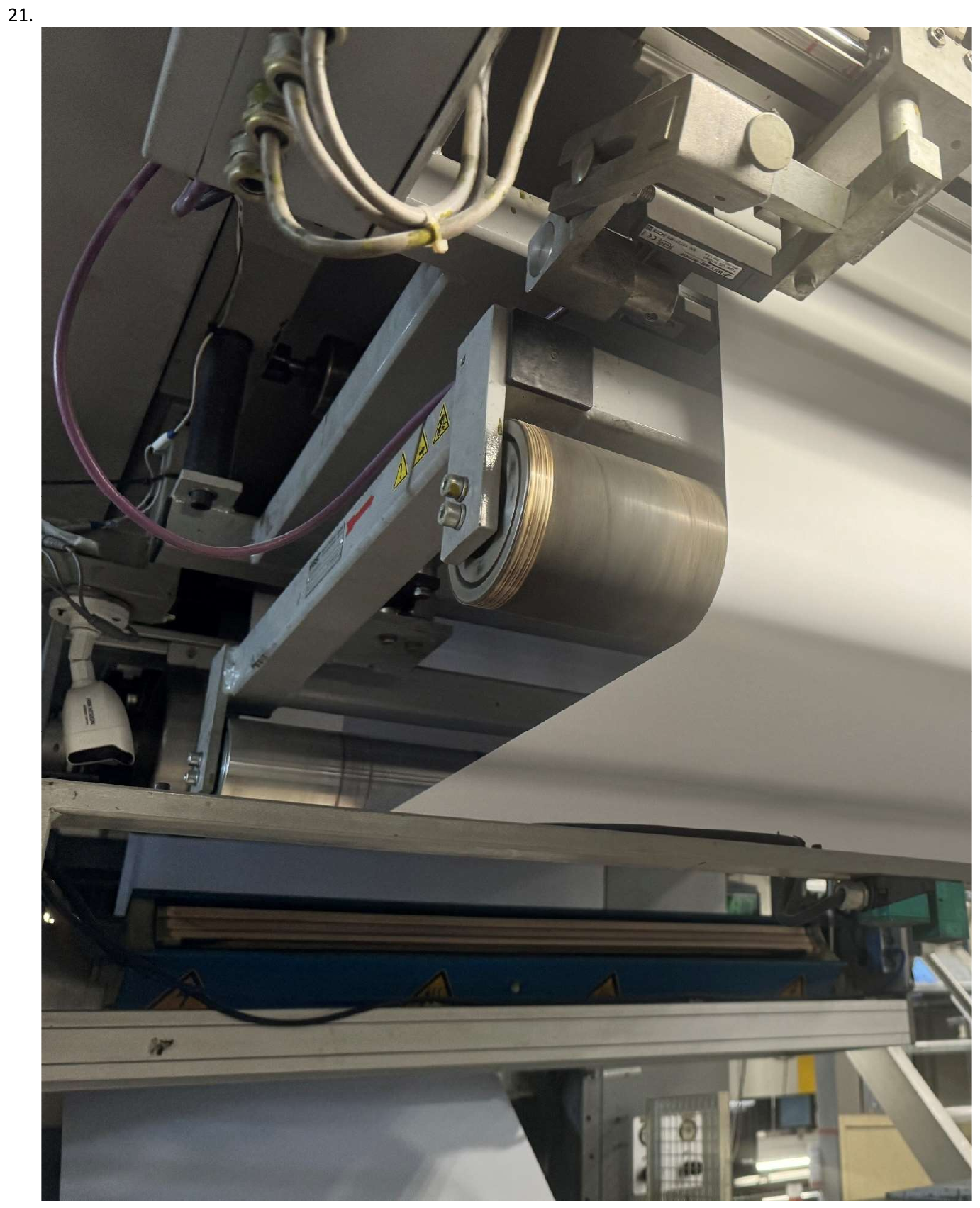

- An infeed before printing ,172 mm in diameter,driven by an AC motor with inverter and one chill roll after the drying tunnel,400 mm in diameter,with rotary joints for water circulation,driven by an AC motor with inverter.

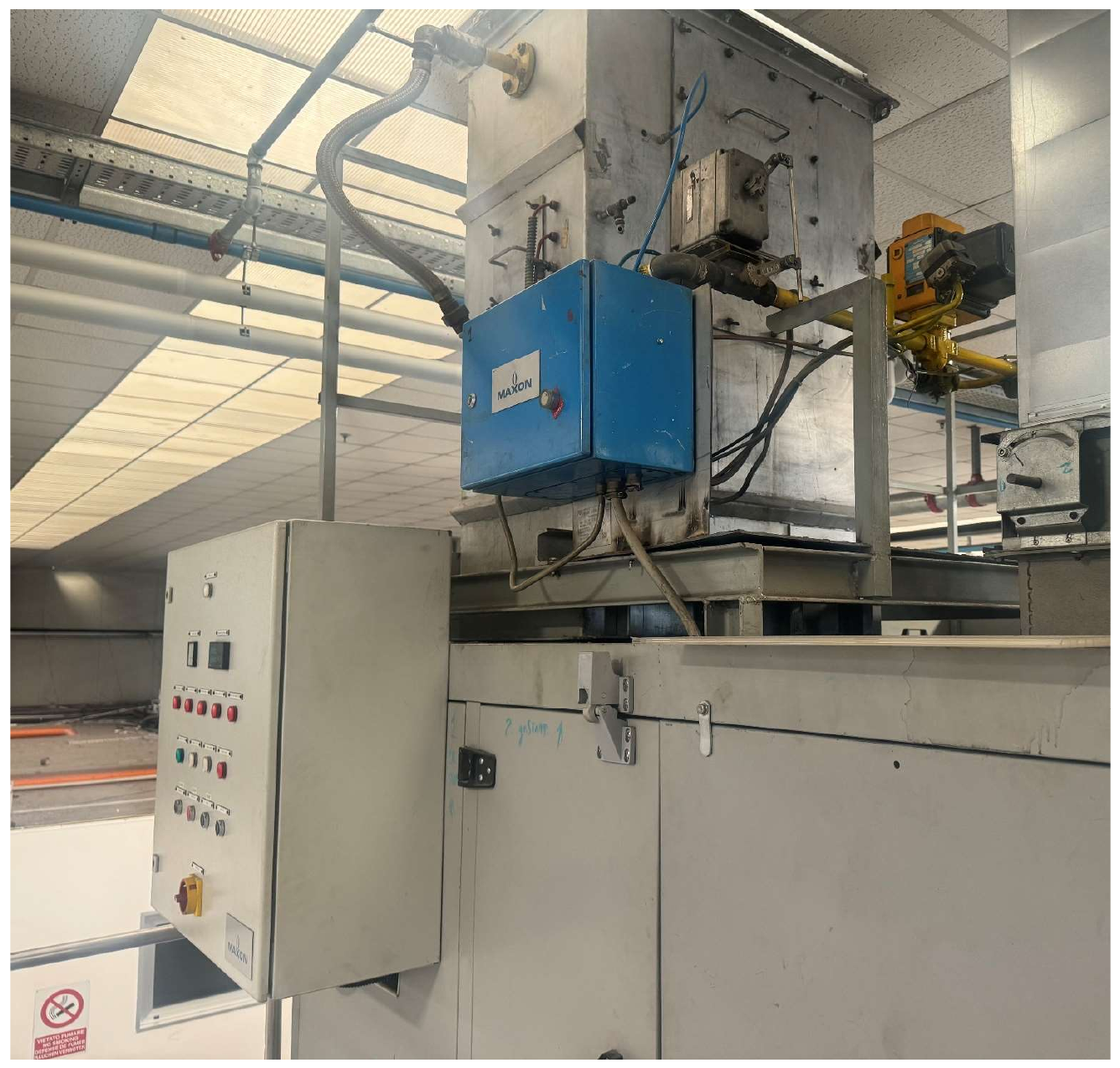

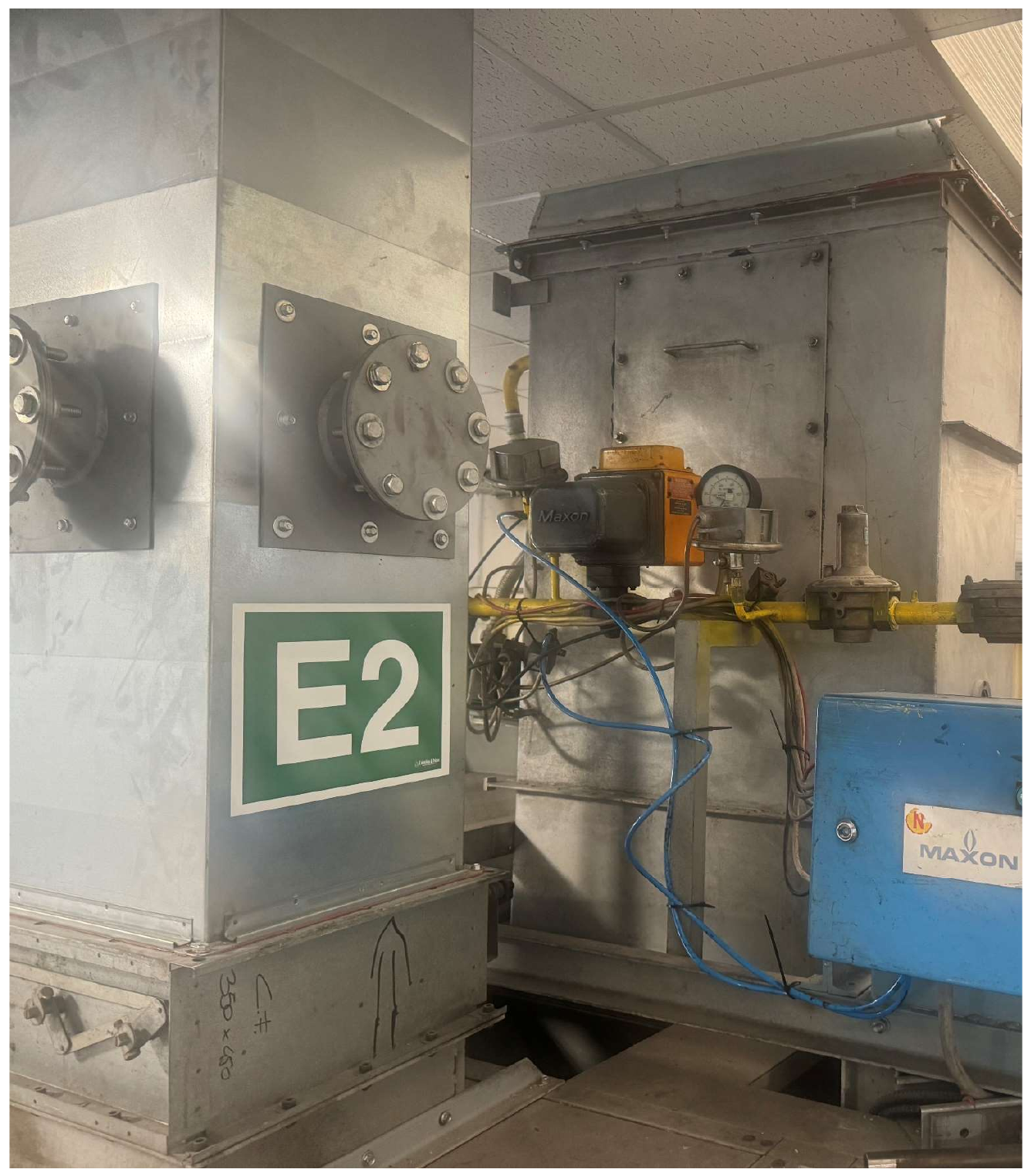

- Drying section: by means of 4 fans with air recycling and 16 nozzles bridge
- Upgrades and retrofit carried out:

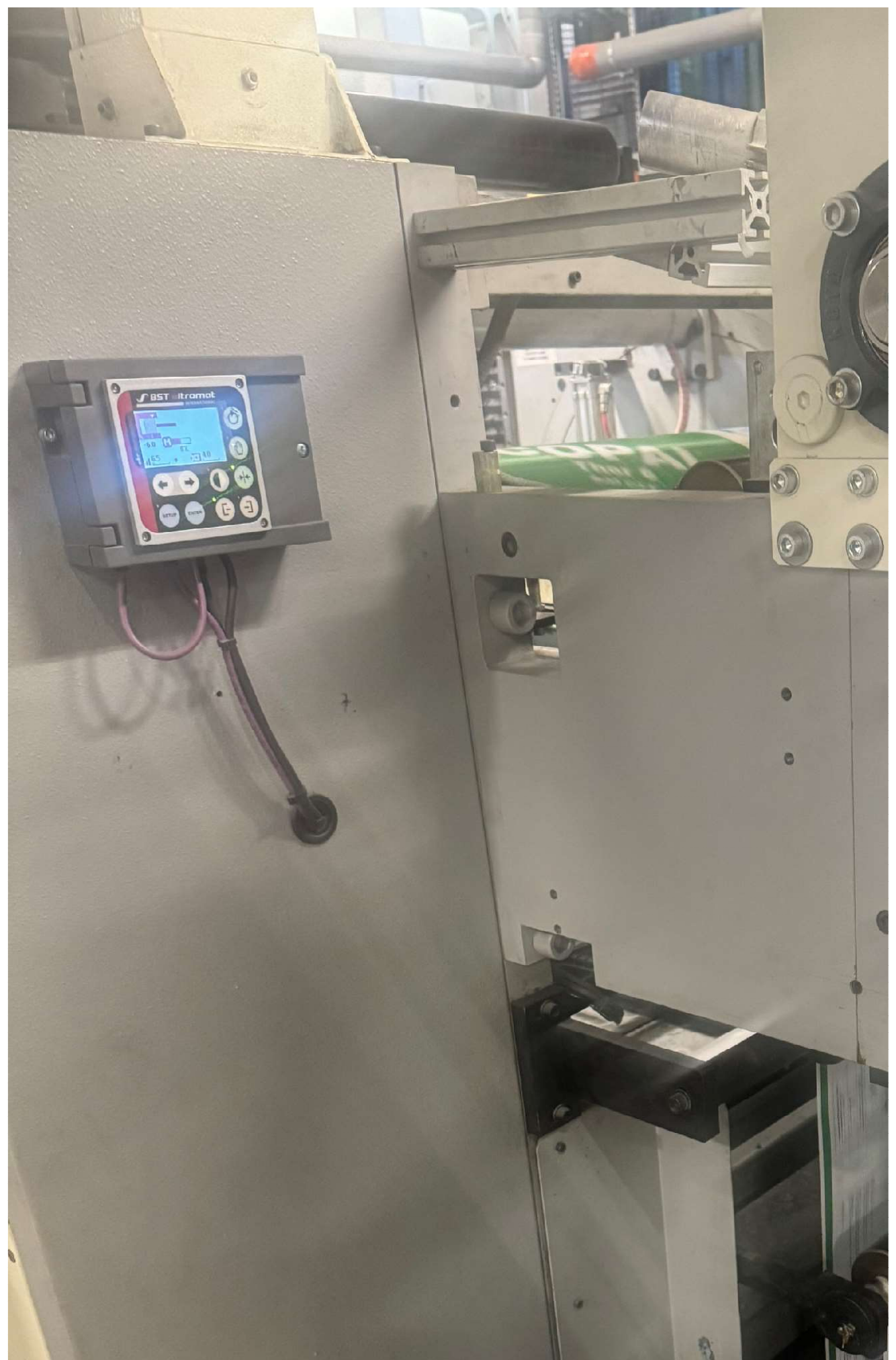

- BST inspection camera – 2018

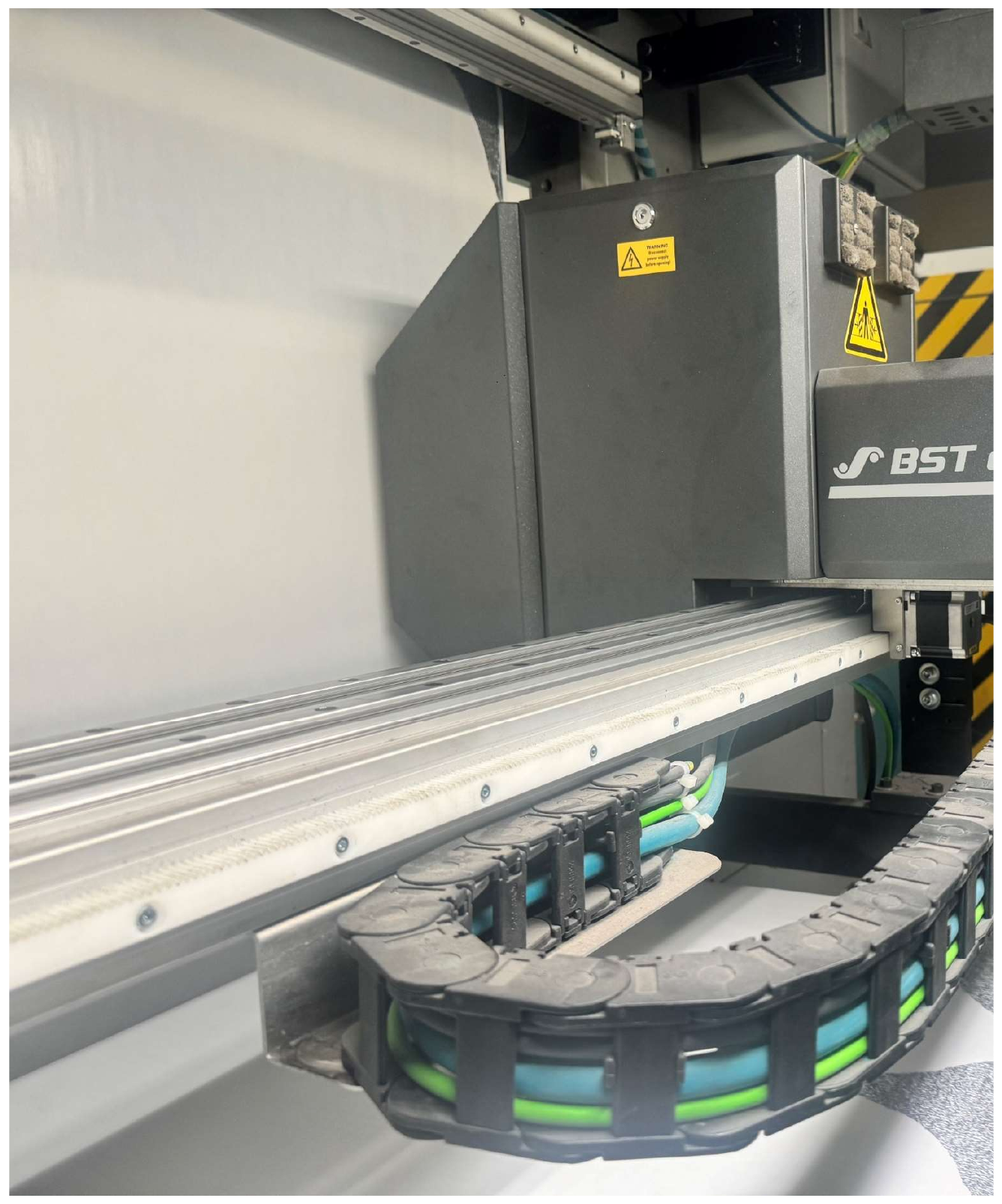

- BST film guide, input/output – 2018
- NSA fume safety system (Crami) – 2018/2022

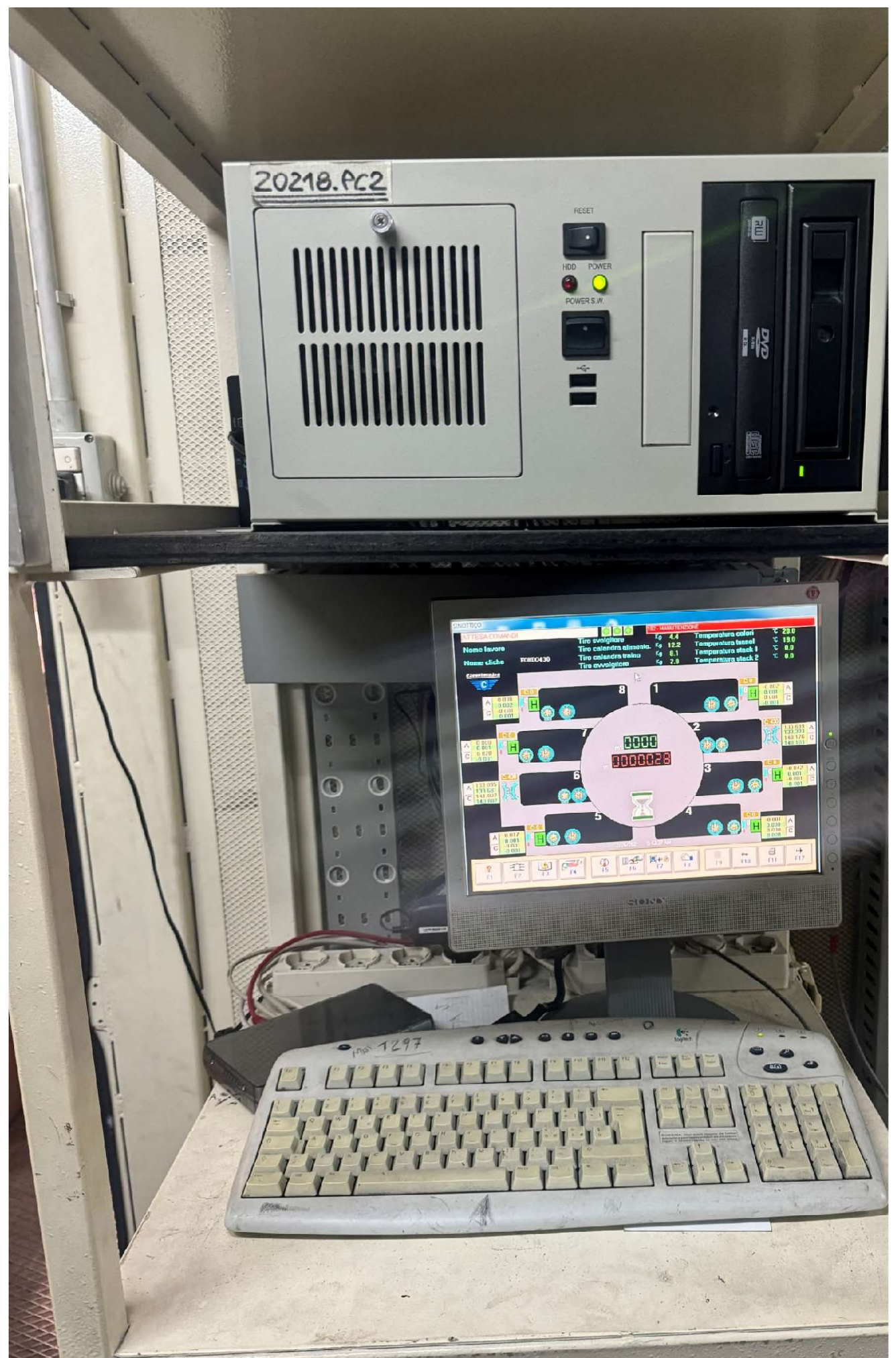

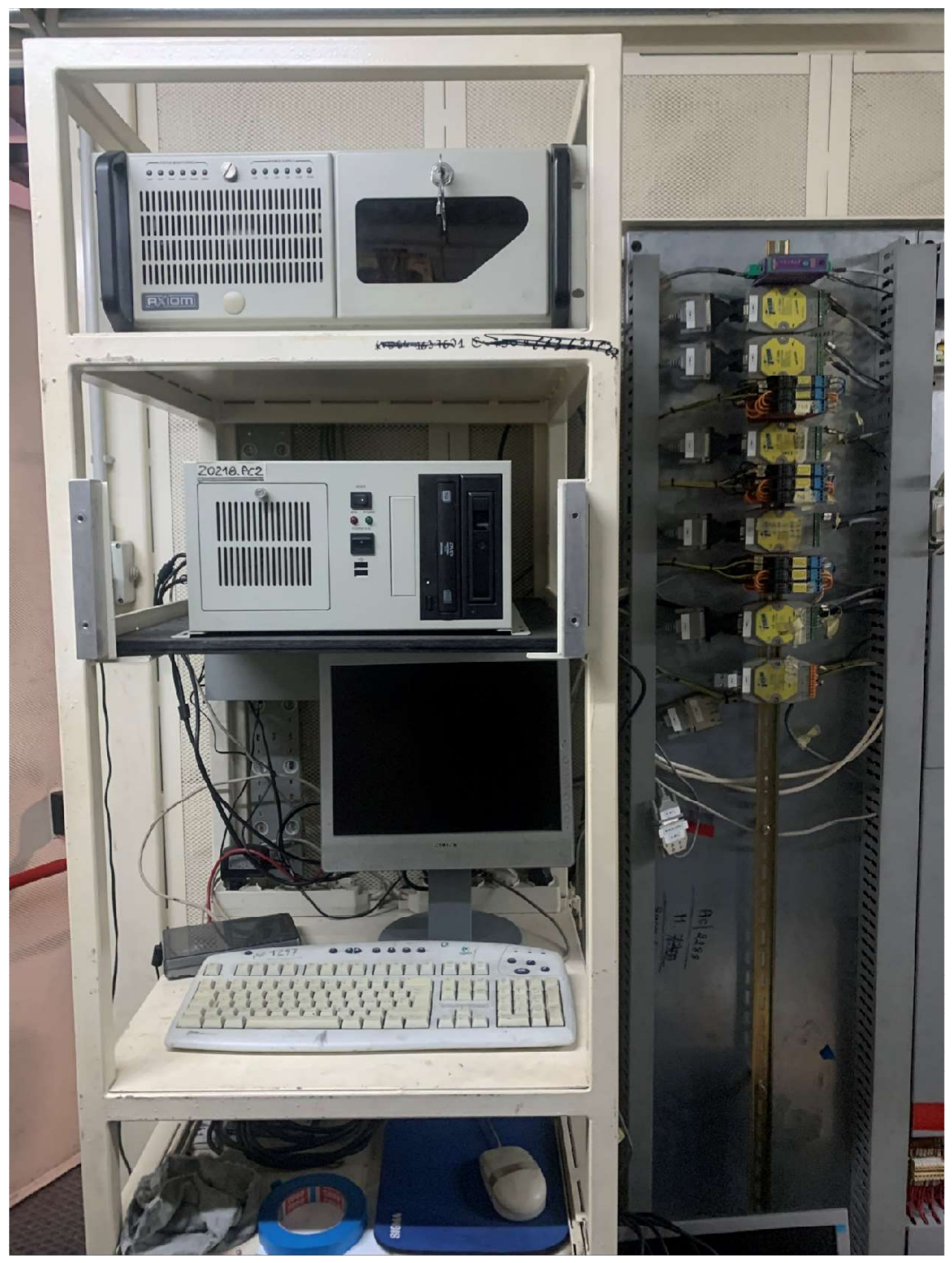

- New machine PC with remote assistance
- New inline cutting system, Helios – 2020

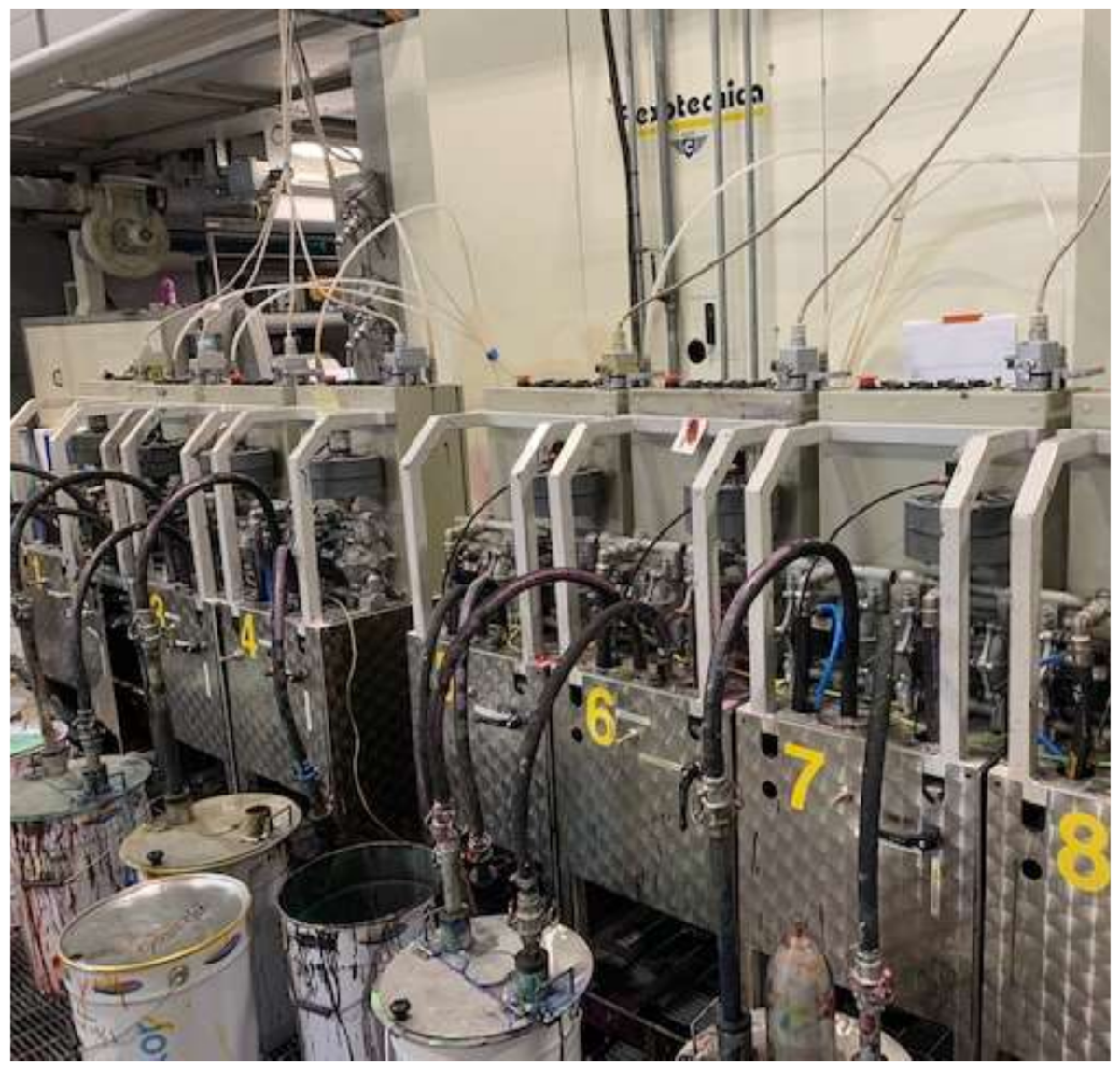

- New inking system, Expert – 2018

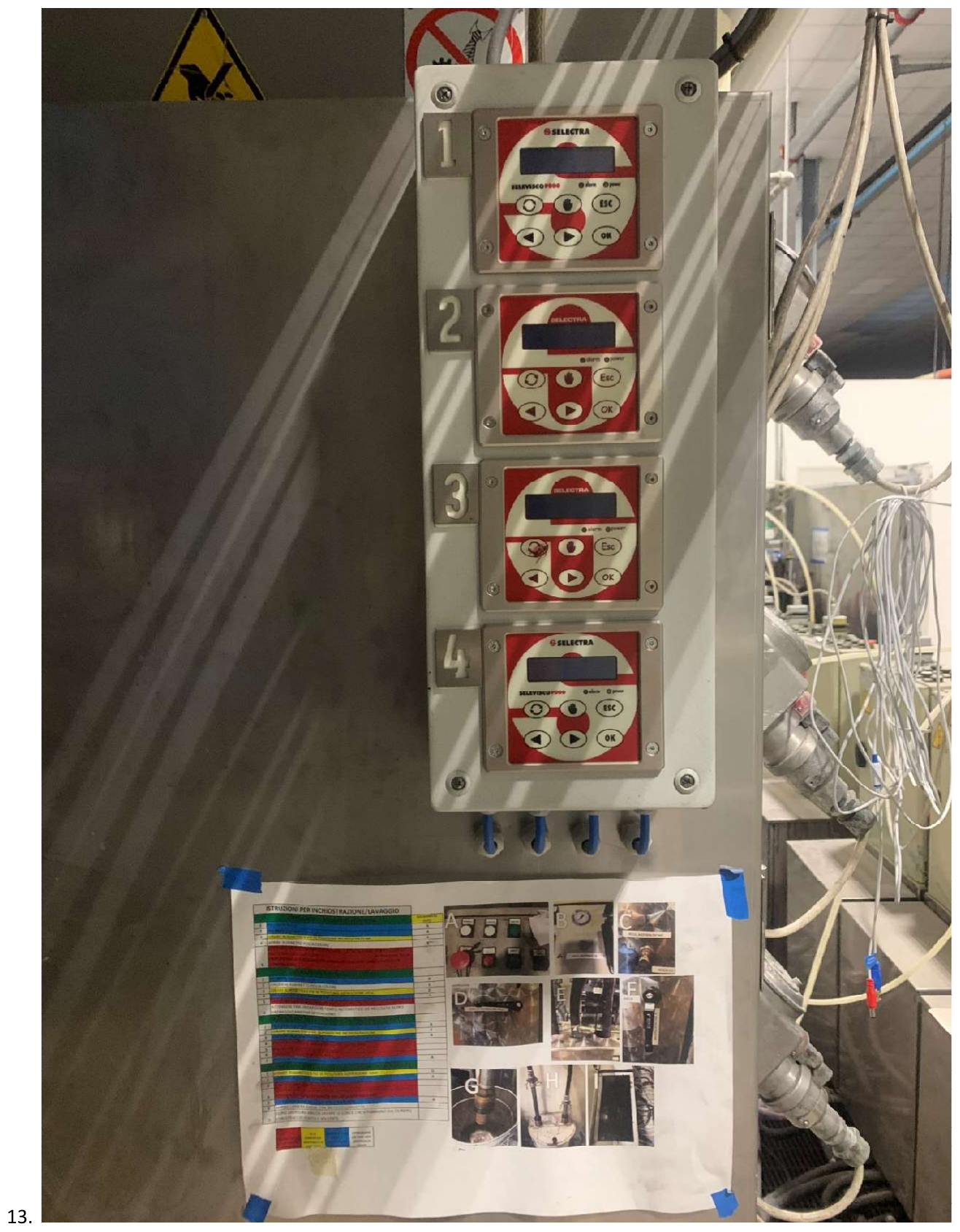

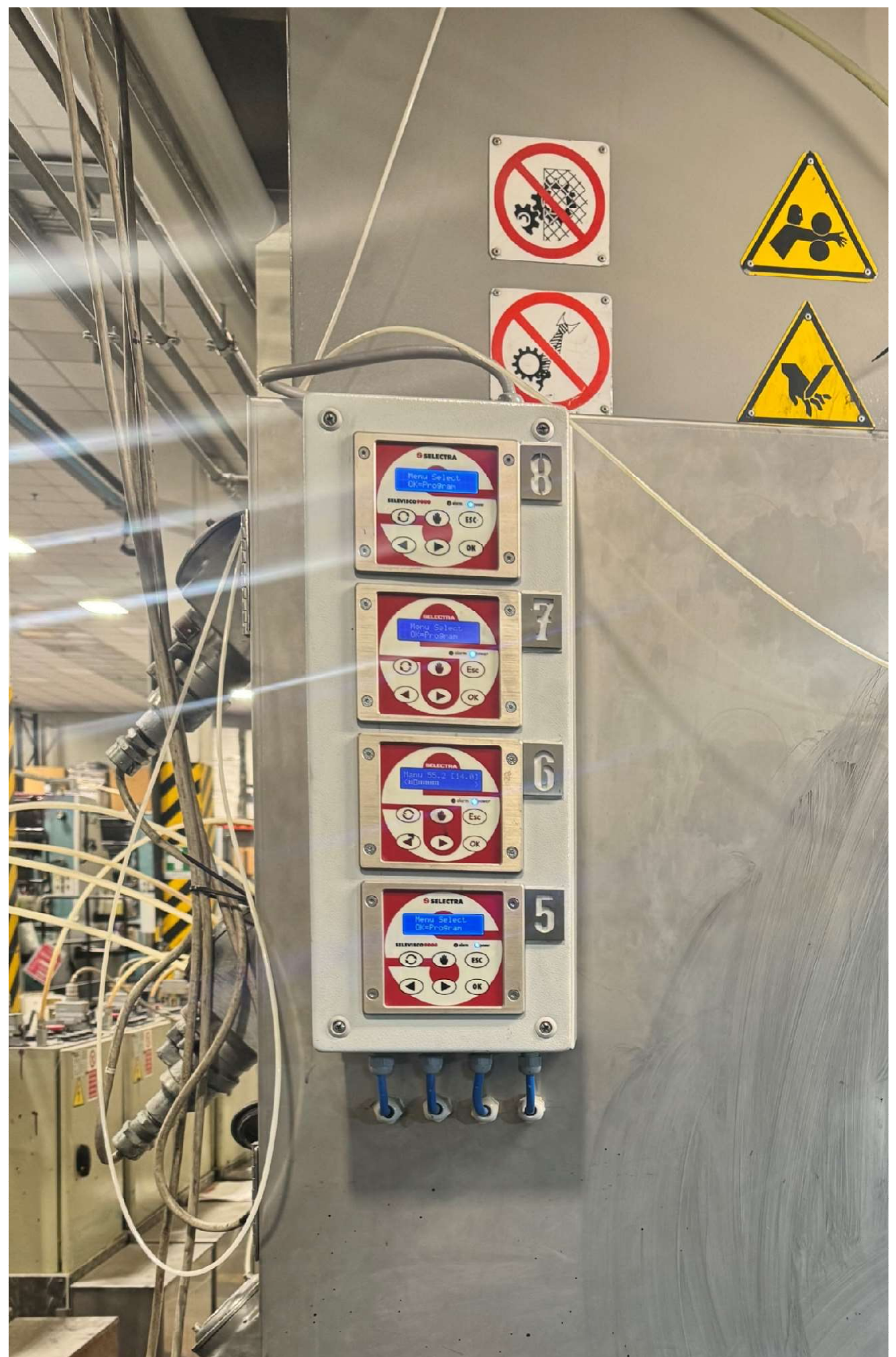

- New viscometer system, Selectra

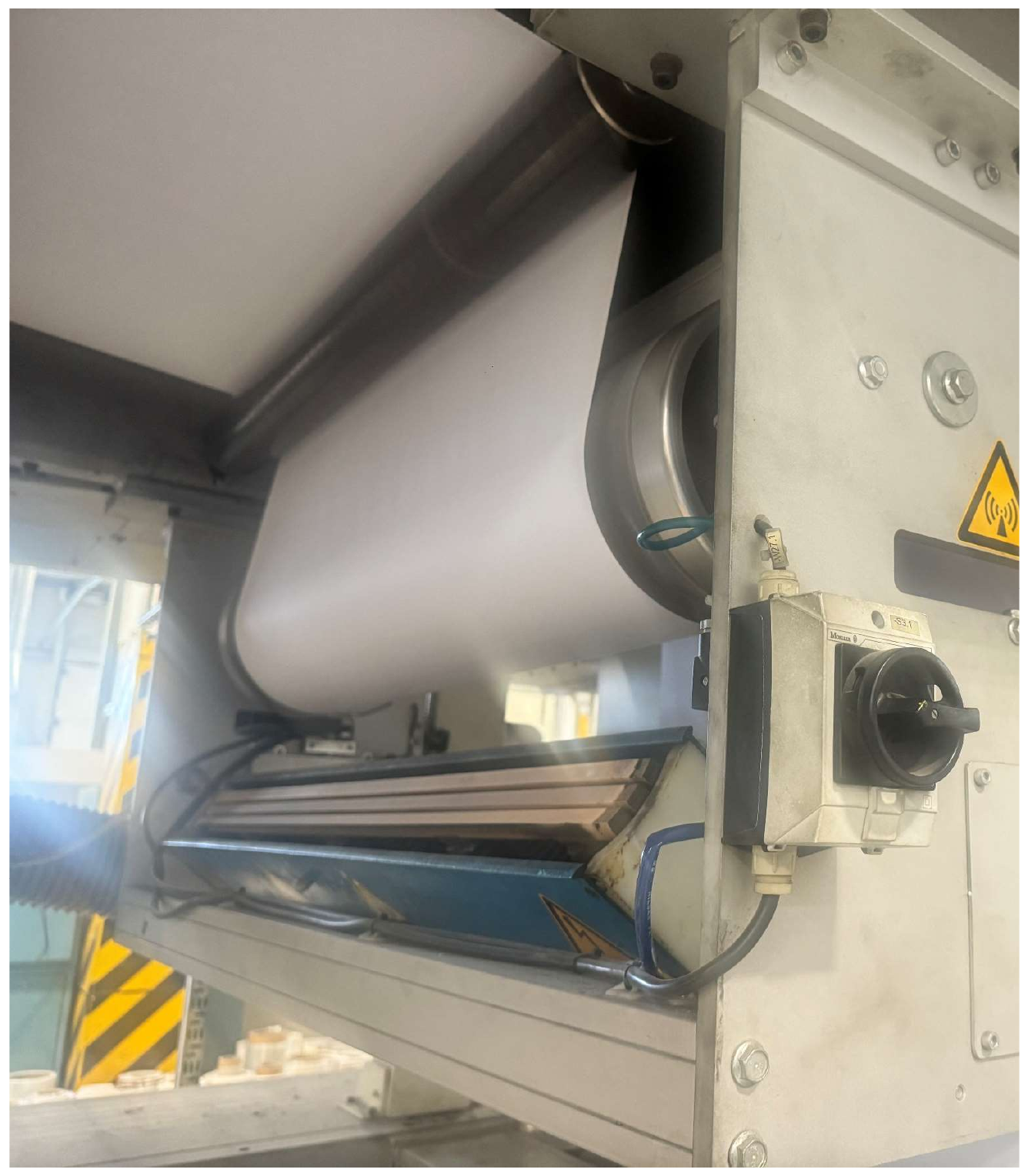

- Corona treatment, Softal – 2018
- Uninterruptible power supply, SOCOMEC Masterys 4BC 15kVA 3/3 – IP20
- Technical condition and maintenance:

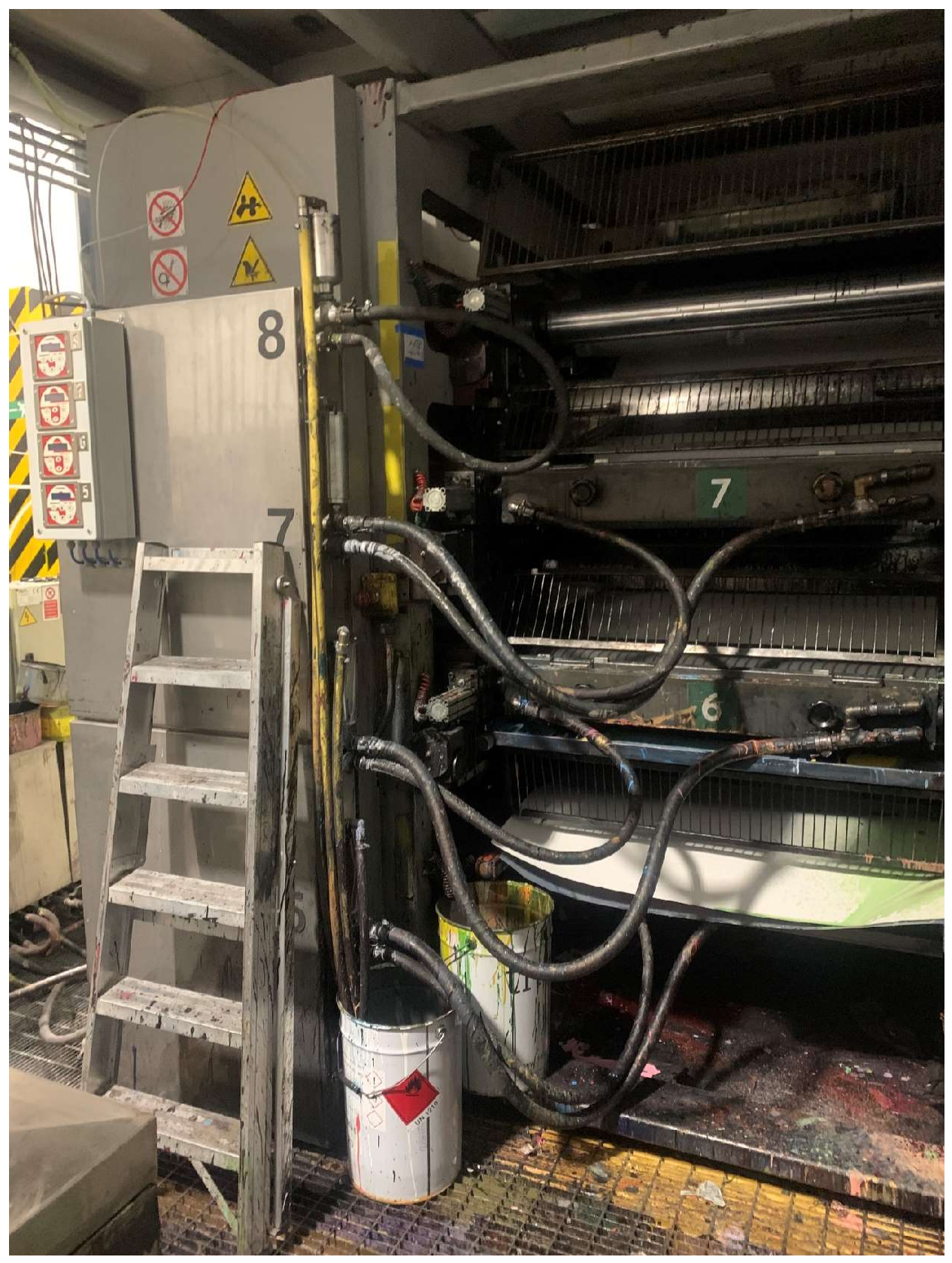

- All 8 printing units are confirmed operational
- Mechanical parts in generally good condition: only normal wear consistent with age, easily addressed if needed
- No known blocking issues reported by the seller
- Maintenance historically carried out by KBA technicians

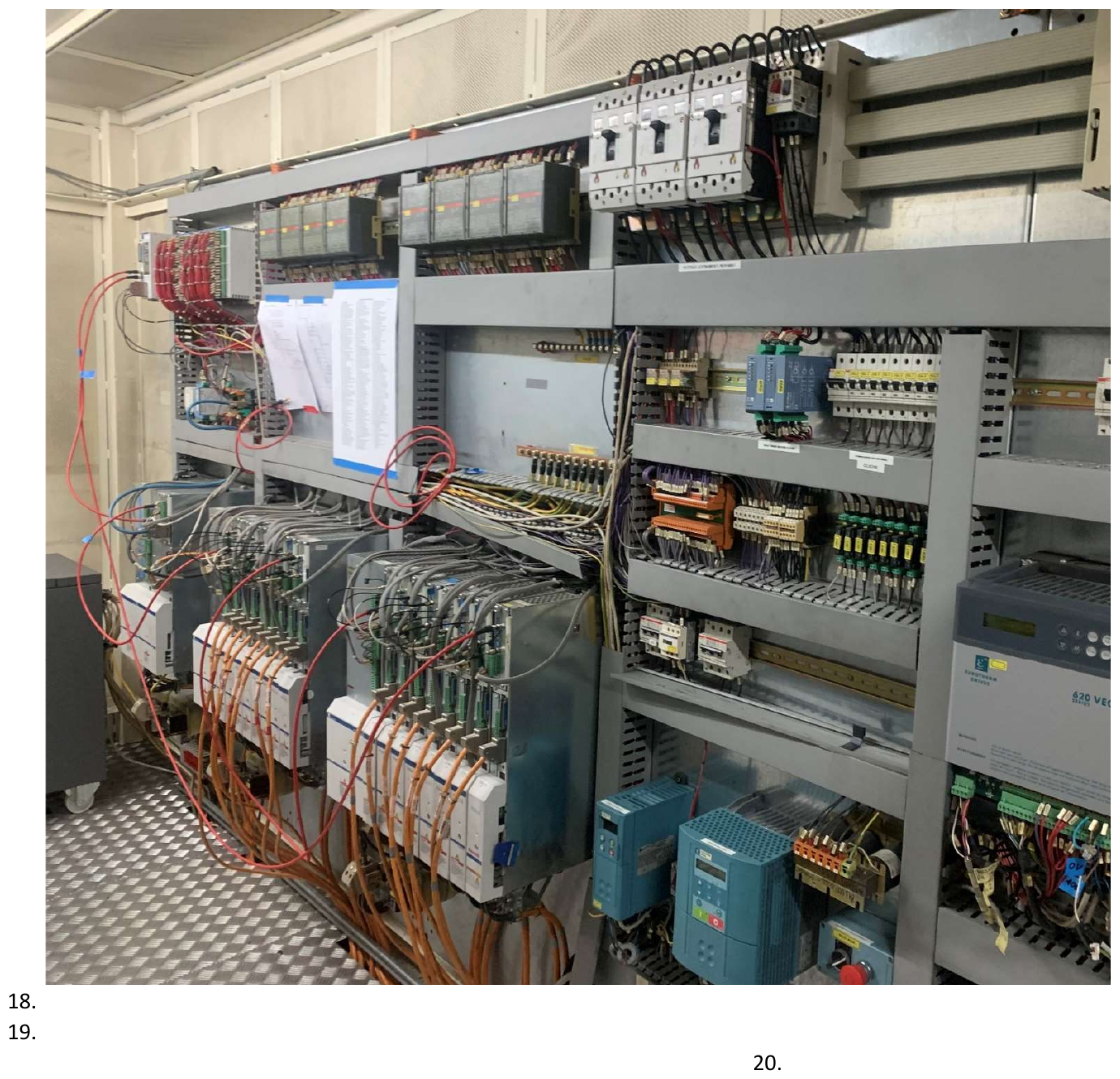

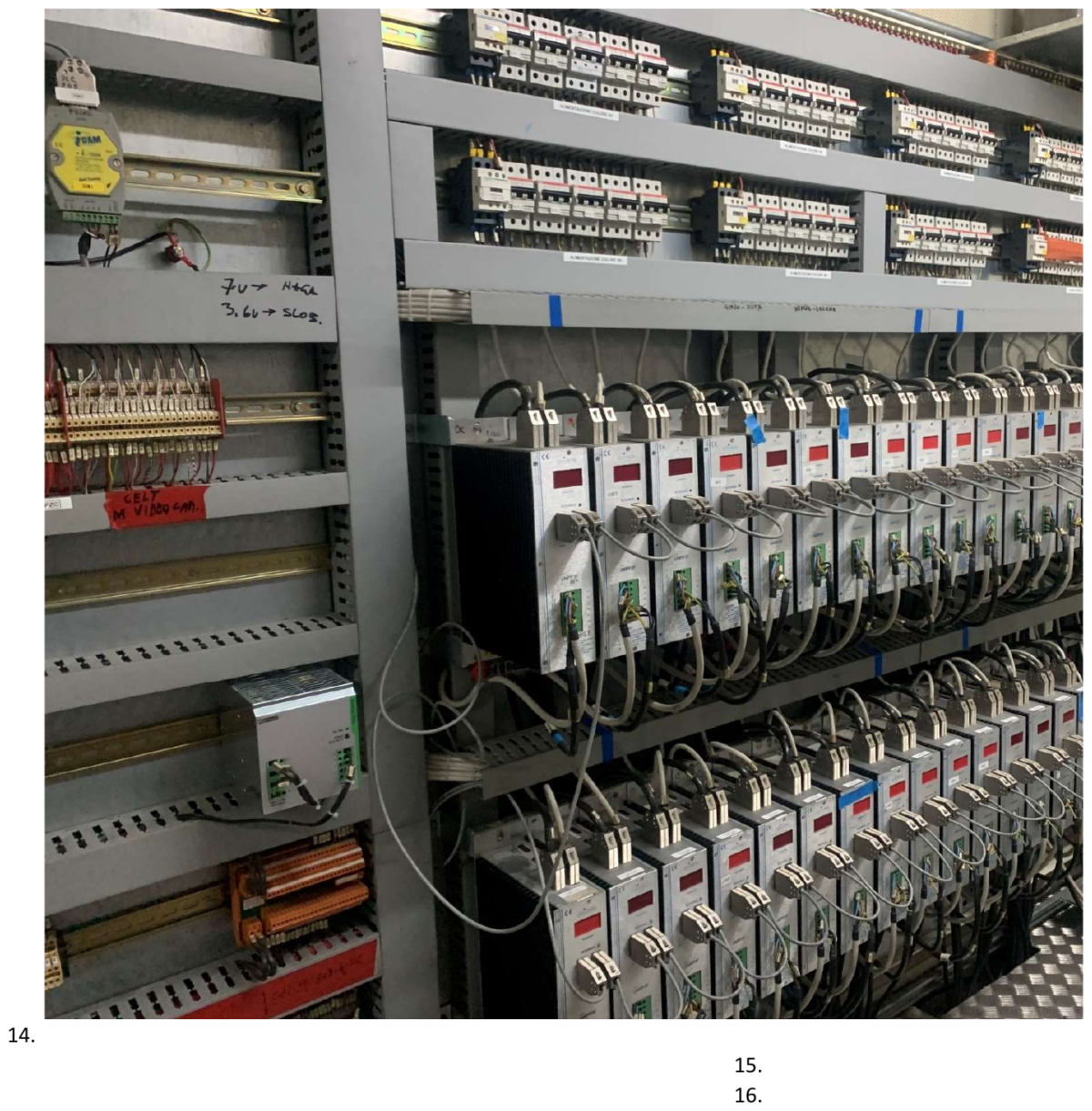

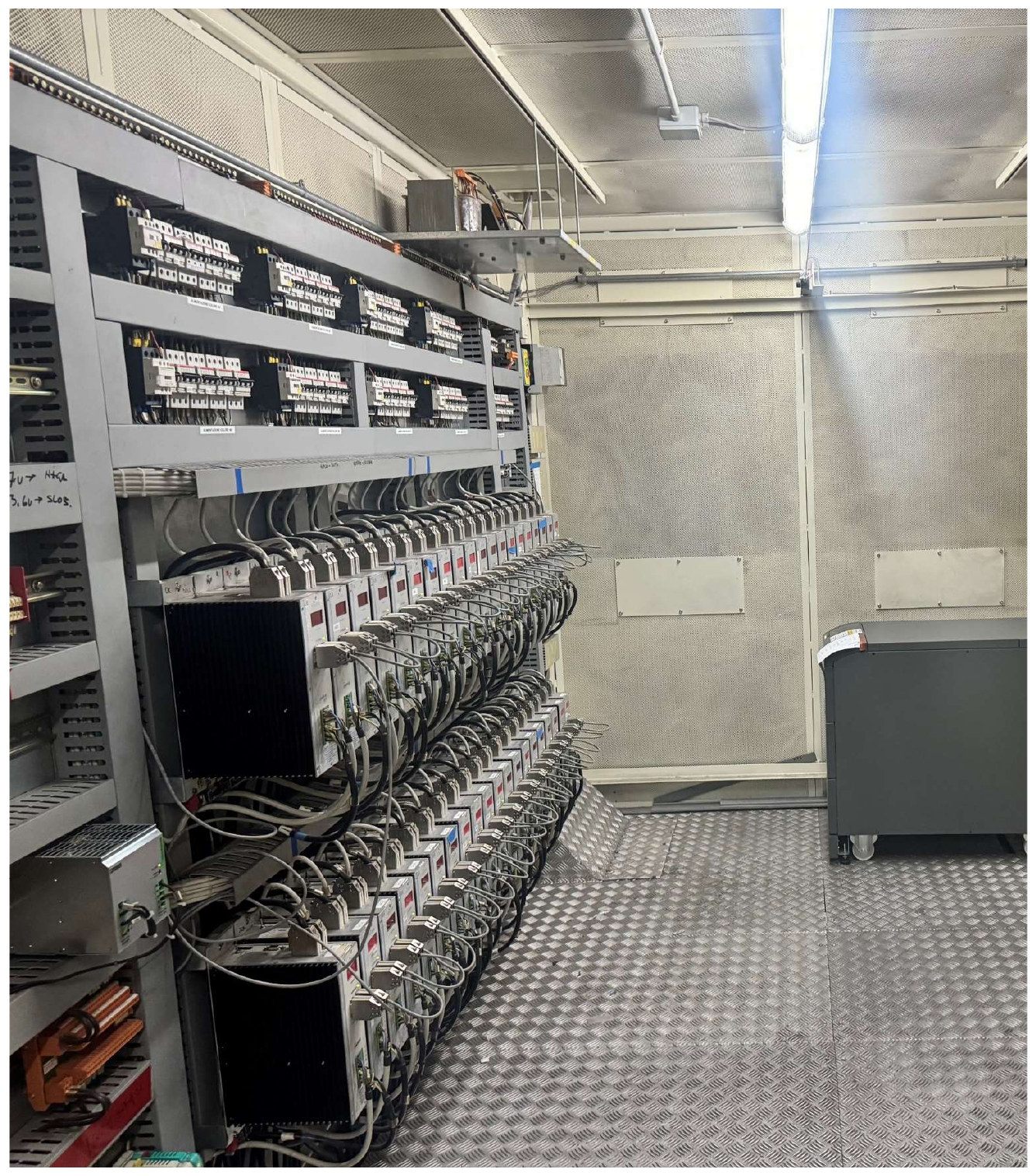

- Electric system: EX-D on the printing section
- Voltage: 400 Volts, 50 Hz, 400 A, 3 phase
- Auxiliaries: 110 Volts
- Water supply pressure: 2 bar or 30 psi
- Compressed air pressure: 6/7 bar or 85/100 psi
- Overall dimensions. 16 x 7,5 x 5,2 m
- Visible in production
- Availability (to be confirmed)
Italian brand
Koenig & Bauer Flexotecnica S.p.A. is a leading supplier of central impression flexographic presses, with customers in 63 countries.
Flexotecnica S.p.A. (now KBA) has been designing and manufacturing central impression (CI) flexographic printing presses for flexible packaging since 1979, offering configurations ranging from 1 to 12 colors.
In the mid-1990s, the company became part of the Cerutti Group, and in 2013 it was fully integrated into Koenig & Bauer. Today, Koenig & Bauer Flexotecnica is recognized as a reliable supplier of advanced CI flexo presses, incorporating state-of-the-art technology for high-quality and efficient flexible packaging production.
