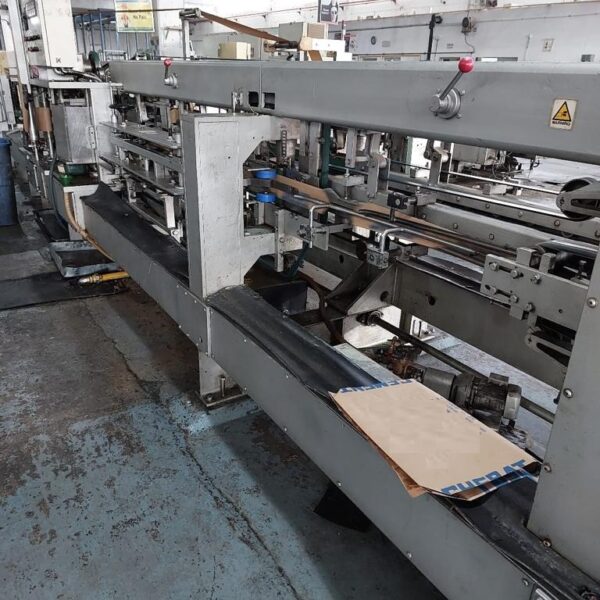

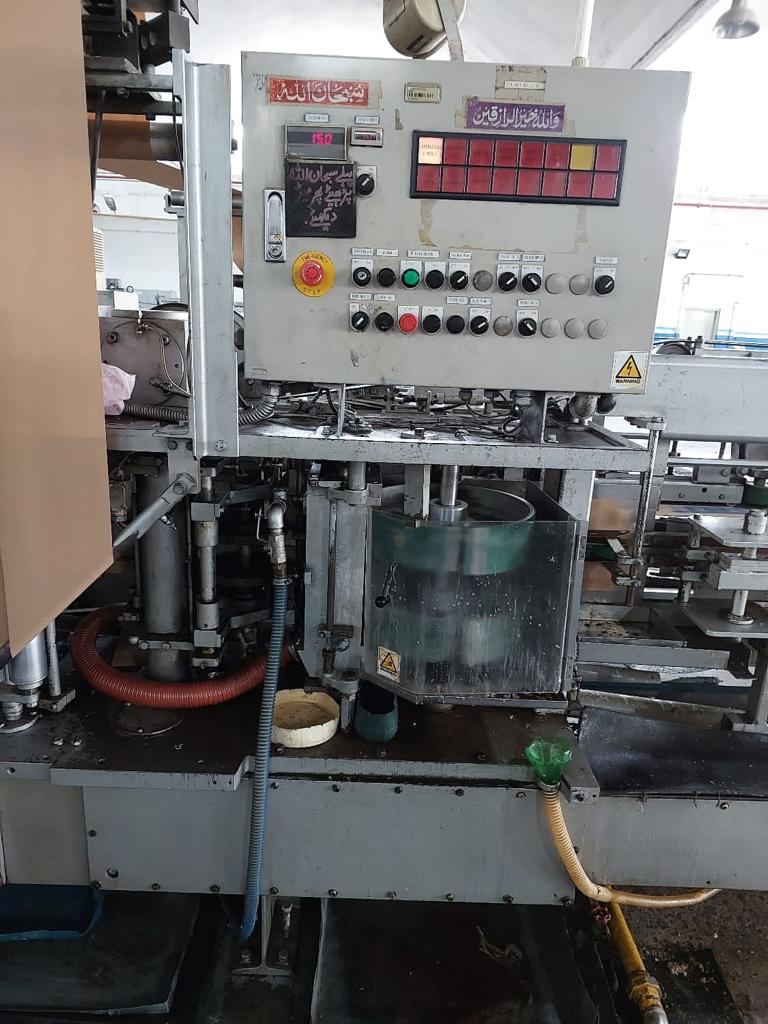

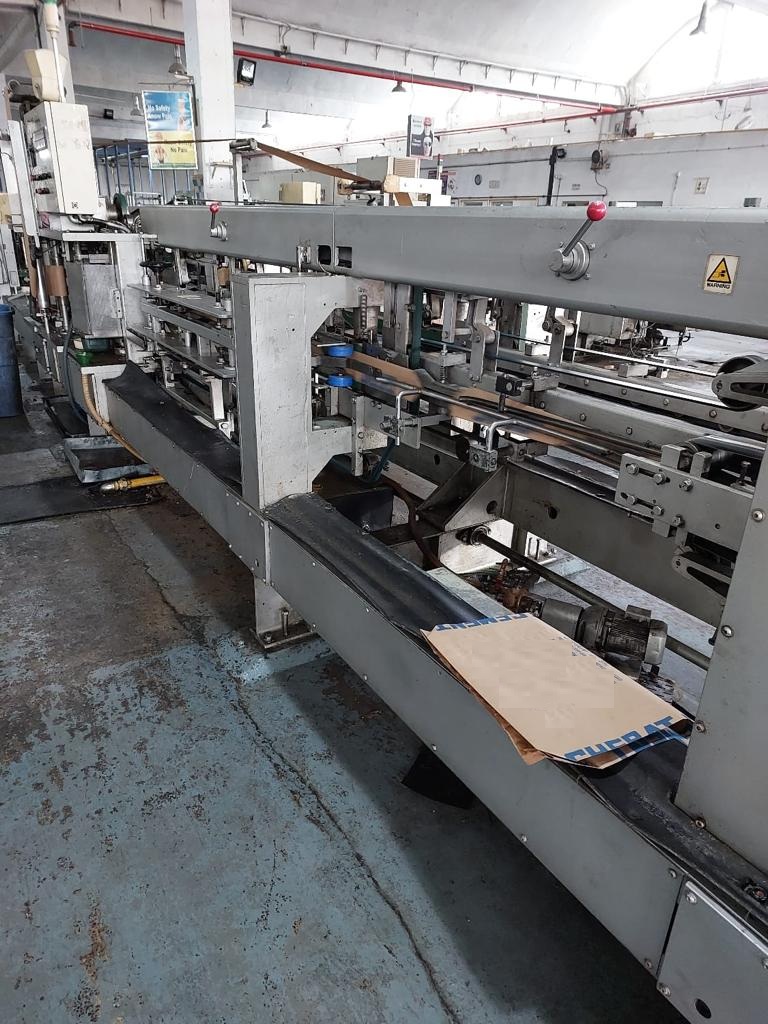

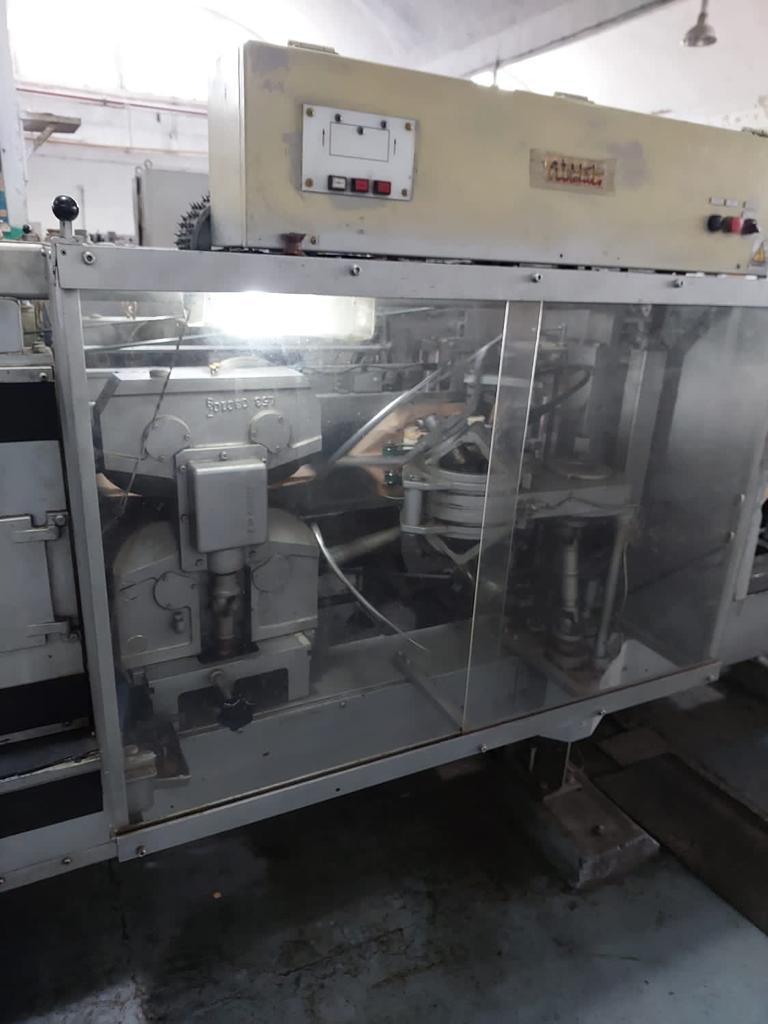

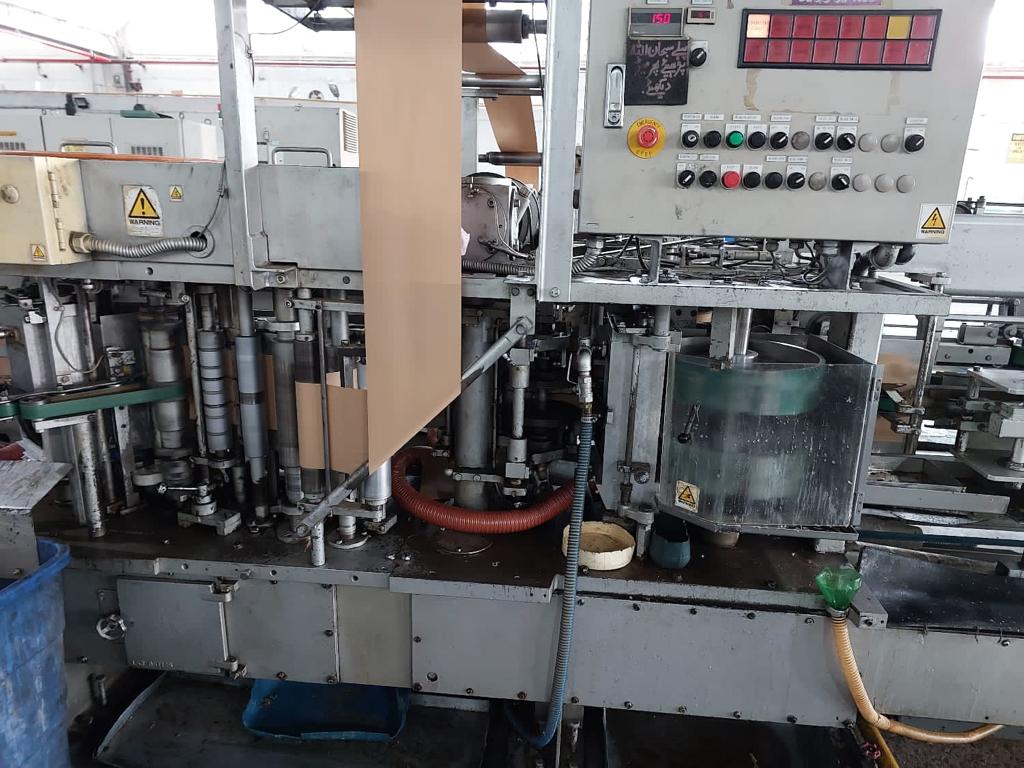

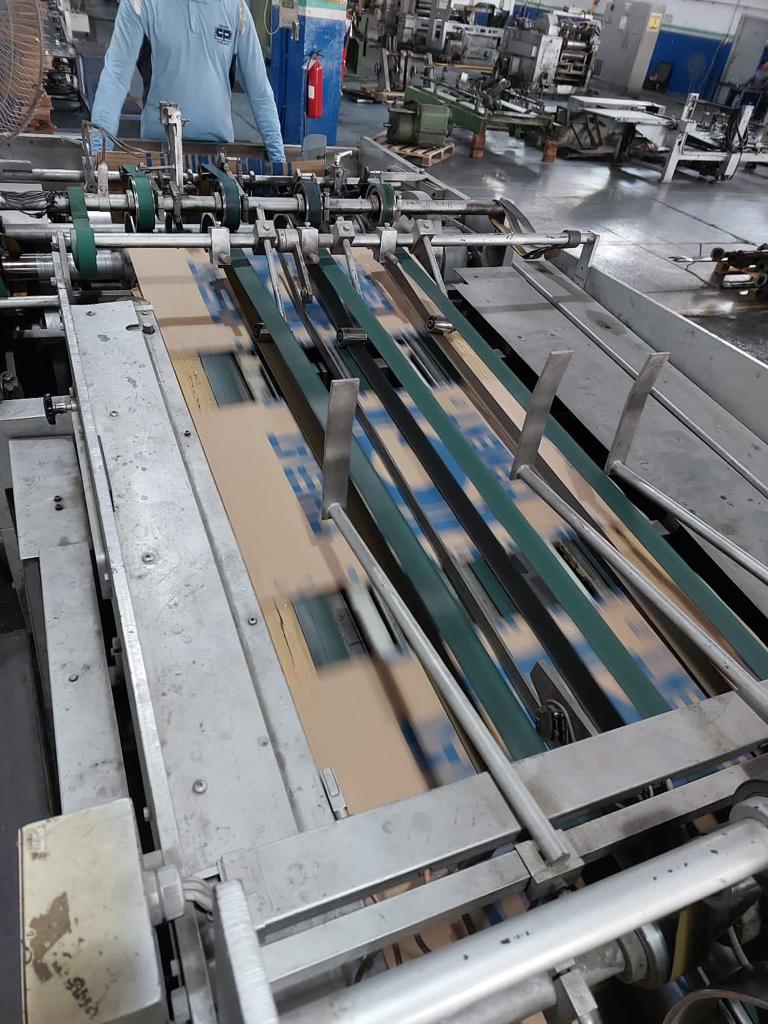

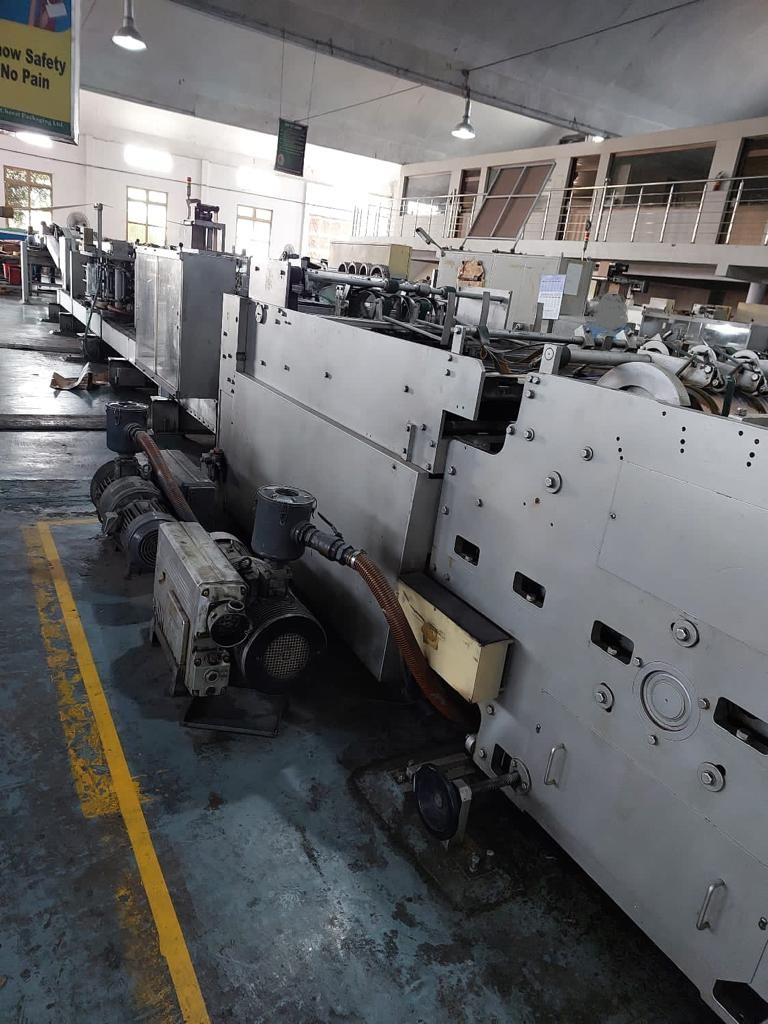

Newlong bottomer model 612B year 2005
Newlong bottomer model 612B year 2005 is designed for the sacks of min-max bag length 365 – 830 mm. Equipped with bottom patch printer 2 color for each side. Immediately available
Newlong bottomer model 612B year 2005
- Brand: Newlong
- Model: 612B
- Year: 2005
- 4 plies
- 1 valve station
- Type of valves:
- Valve reinforcement extended inward. The filling aperture lies below the patch
- “Tubular valve” with fold for reinforcing the leading edge. The tube is formed when the bottom flaps are folded
- Min-max bag length: 365 – 830 mm
- Min-max tube length: 490 – 1020 mm
- Min-max tube width: 280 – 550 mm
- Min-max bottom width: 85 – 130 mm
- Min-max bottom centre distance: 280 – 700 mm
- Min-max bottom opening distance: 230 – 320 mm
- Min-max valve sheet length: 80 – 220 mm
- Min-max valve sheet width: 100 – 280 mm
- Valve ply: 1
- Bottom patch installed by the owner (not original Newlong)
- Bottom patch 2 colors each side: Width. 85-160 mm, Length. 160 – 480 mm
- Speed: 185 sacks/min
- Main motor: 11 kW
- Vent hole perforation: yes
- CE certificate: no
- Visible in operation
- Immediately available
Japanese brand
Newlong Machine Works' product range includes a wide variety of bag-making machines, bag closing machines, and other related equipment designed to handle materials such as paper, plastic, and woven fabrics.
The company is renowned for its focus on customer satisfaction and quality, with a dedicated team of experts providing comprehensive technical support and after-sales service. Newlong machines are known for their durability, reliability, efficiency, and user-friendliness.
