INDUSTRIAL SACK LINES
Scae Dimatic ETH 471 HG/110 year 2019

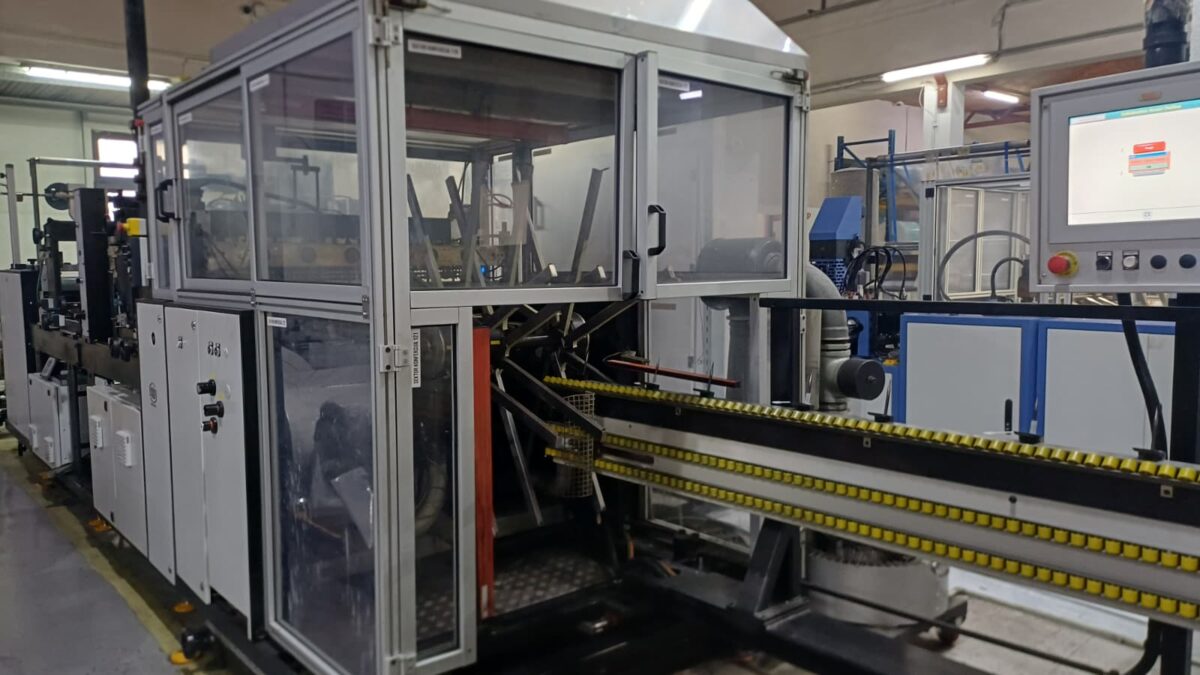

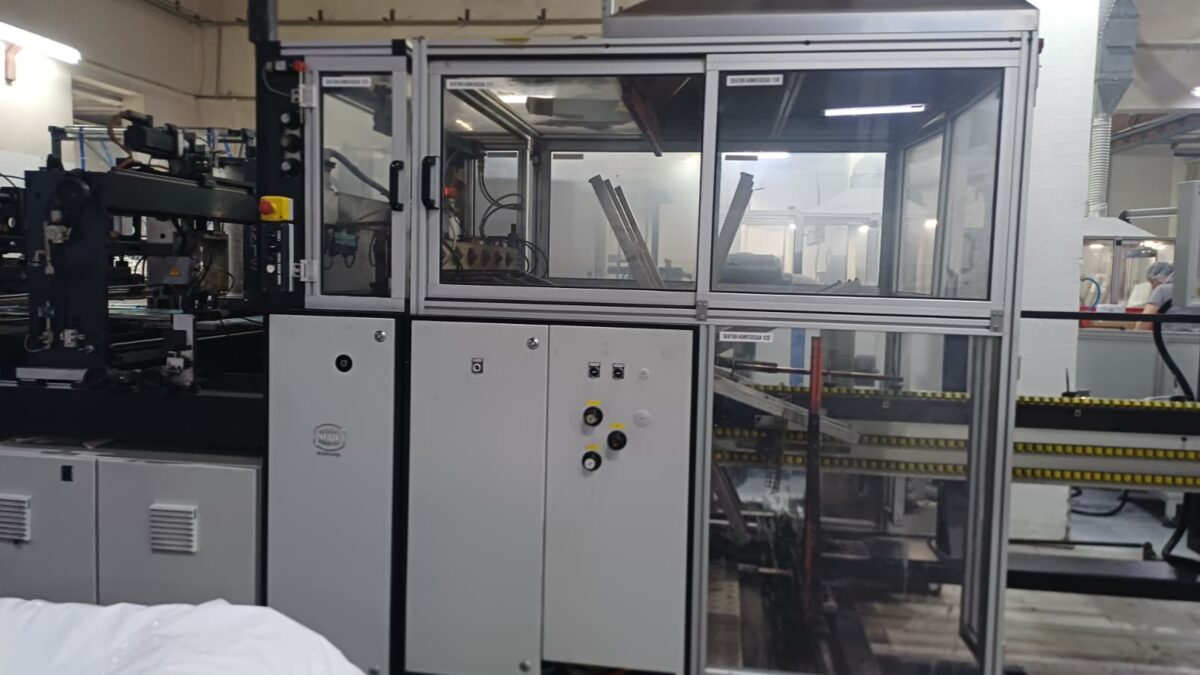

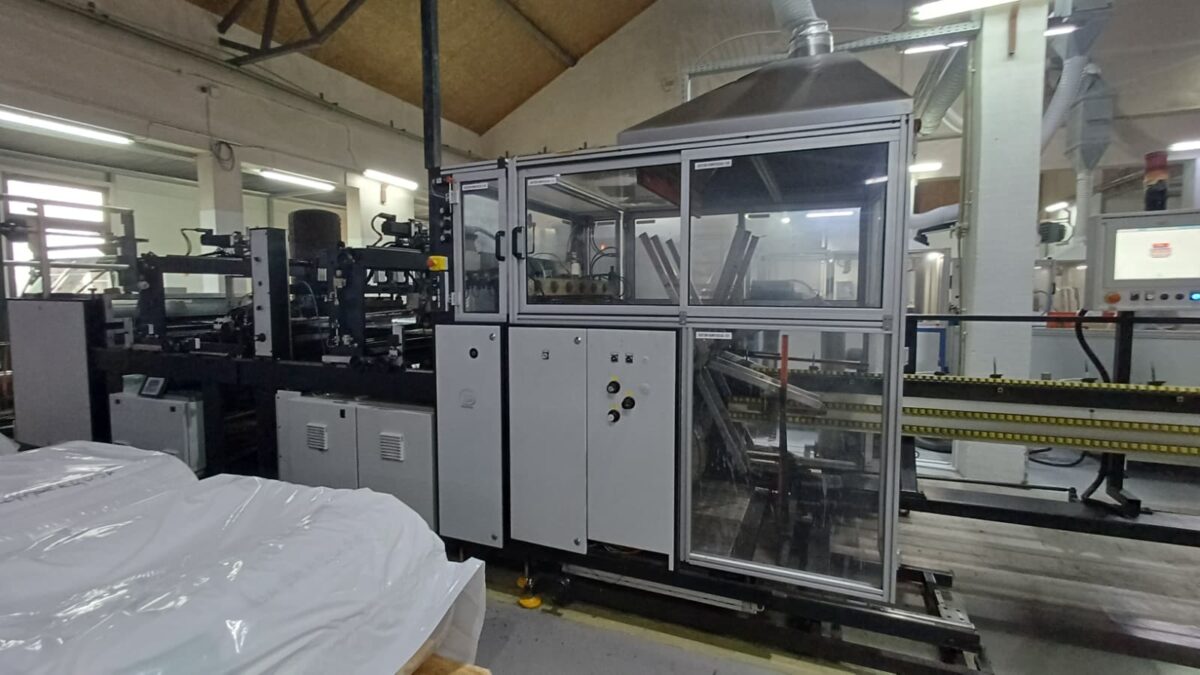

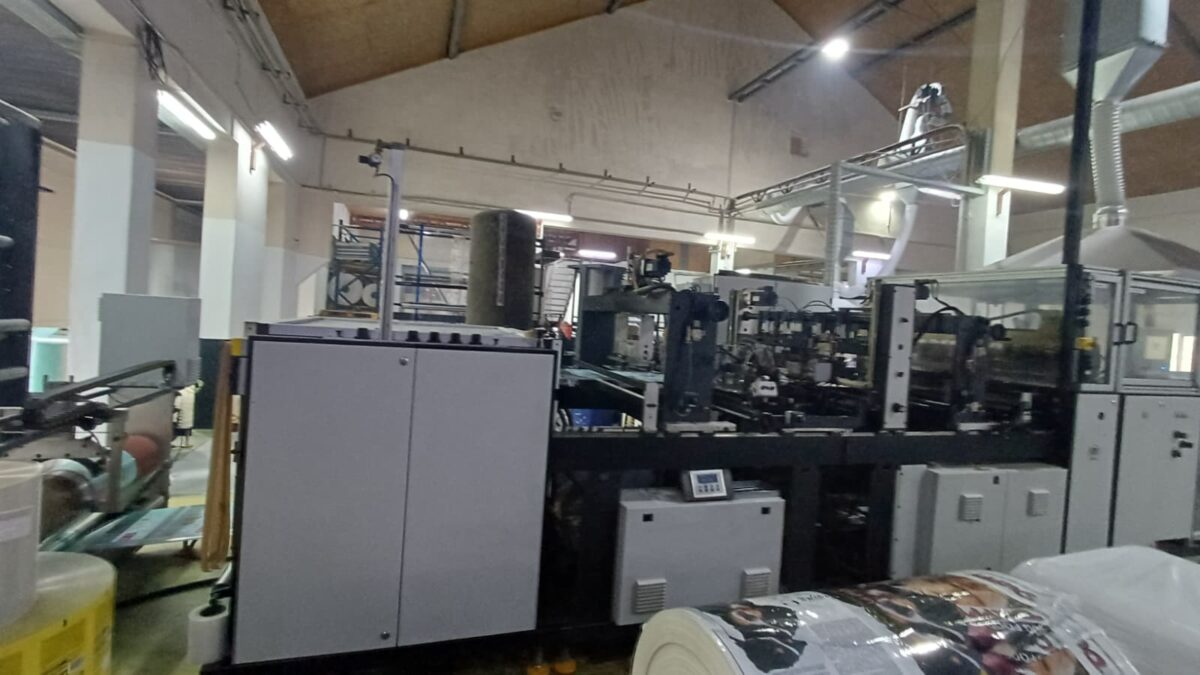

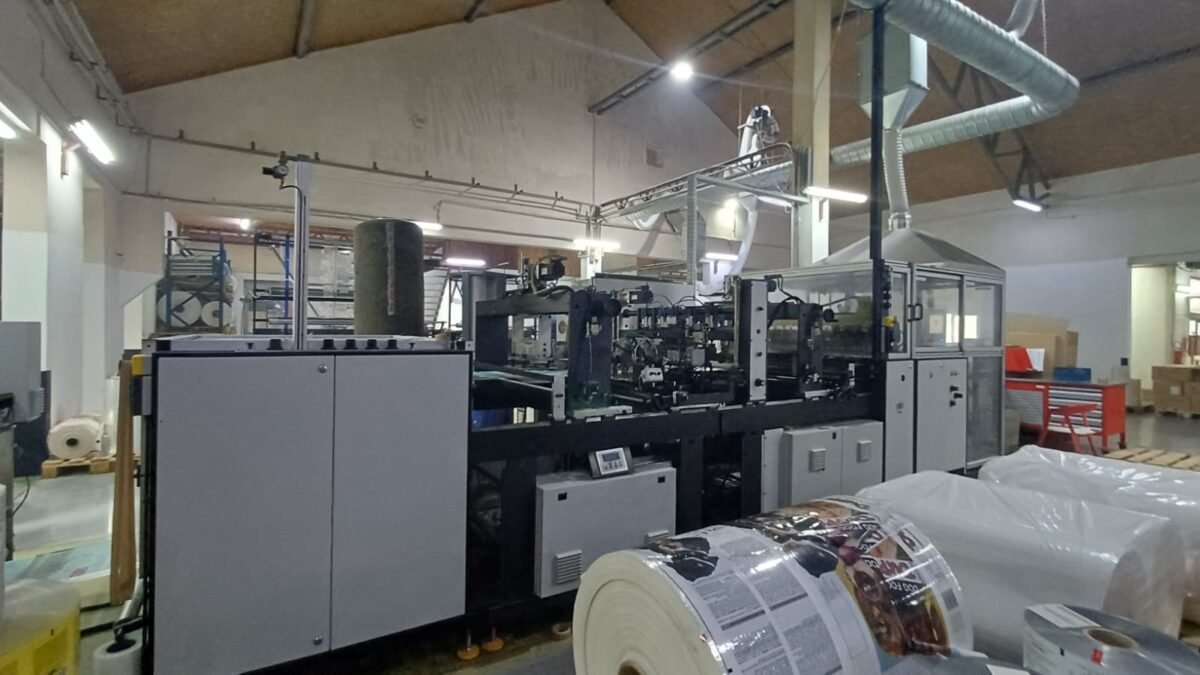

Scae Dimatic ETH 471 HG/110 year 2019 is plastic welding machine designed for the production of wicket bags with die-cut handle positioned on the top or on the side of the bag, with easy opening ripper.
Description
Scae Dimatic ETH 471 HG/110 year 2019
- Brand: Scae
- Model: Dimatic ETH 471 HG/110
- Year: 2019
- For the production of wicket bags with die-cut handle positioned on the top or on the side of the bag
- Materials: PE (25-70 my), CPP (20-50 my)
- Min – max reel width: 750 – 1670 mm
- Min – max bag width: 150 – 620 mm
- Min – max bag length: 200 – 800 mm
- Min – max gusset width: 40 – 180 mm
- Wicket holes diameter: 12 mm
- Mechanical speed (without film): 300 cycles/min
- Line speed: 10 – 110 m/min
- Min – max wicket holes distance: 45 – 400 mm
- Regular bag perforation width: 90 mm
- Max regular bag perforation length: 240 mm
- Max Scanpack perforation width: 120 mm
- Scanpack perforation length: 200 mm
- Die-cut handle: 80×20 mm
- Tele-assistance
- Servo driven easy-open tear off perforation
- Central driven unwinder for main film
- Clockwise or anti-clockwise unwinding direction by selector
- Pneumatic dancer
- Optical sensors for minimum diameter and stop switch for web break and reel end
- Ultrasonic sensor for edge guide system (FIFE)
- Max reel diameter: 1000 mm
- Max unwind width: 1600 mm
- Air holes: cross shaped
- Diameter of easy opening ripper: 12 mm
- Visible in production
- Availability: to be confirmed
