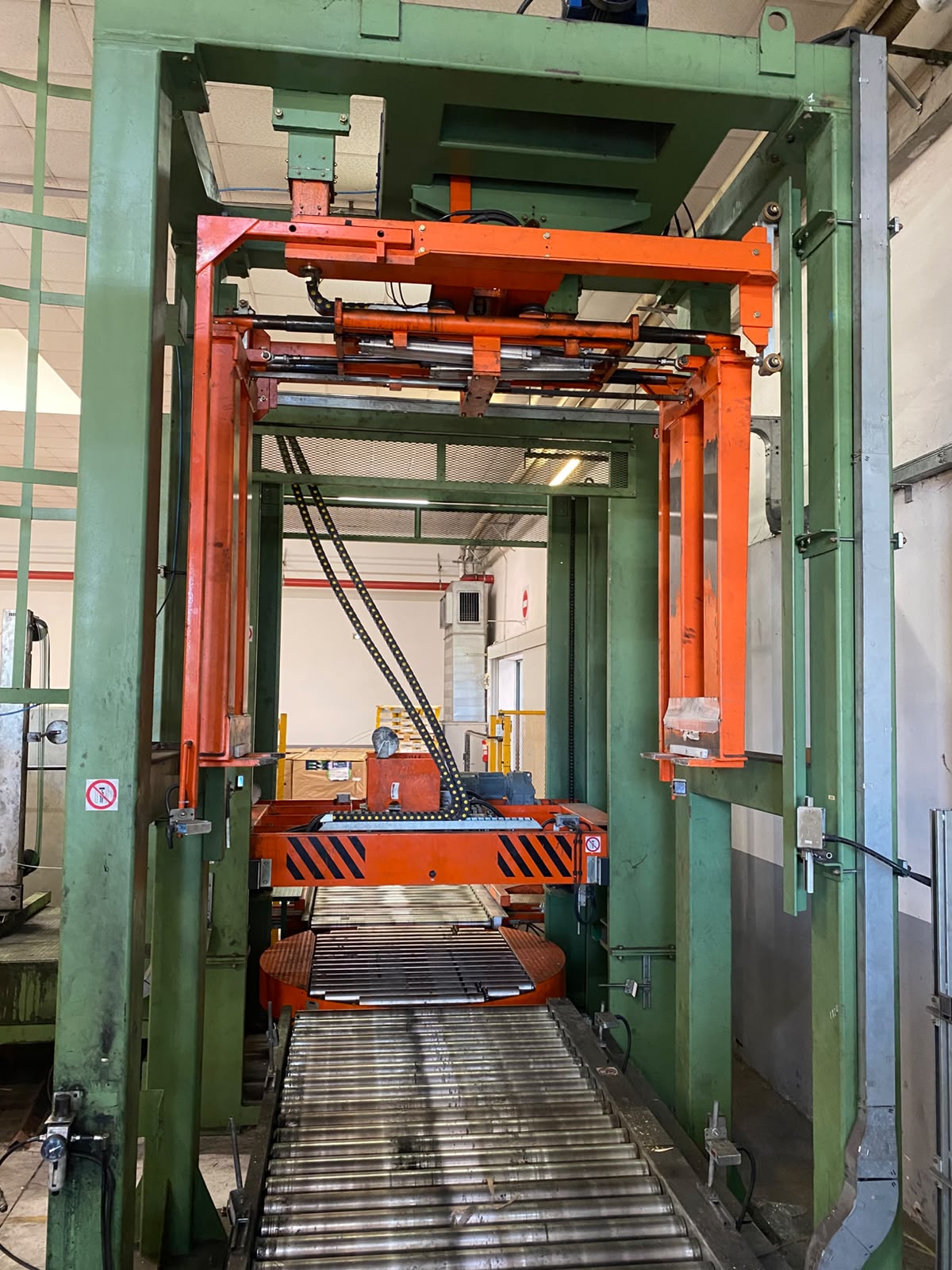

OMS End-of-line packaging system year 1998
OMS End-of-line packaging system consists of the Vertical straping machine with pressing plate of 3000 kg pressing force and Stretch wrapper. Max load weight is 1500 kg. In good working conditions and visible in production
OMS End-of-line packaging system year 1998
- Brand: OMS (Officina Meccanica Sestese)
- Model: 092
- Year: 1998
- The line consists of:
- Motorized infeed roller conveyor
- Motorized roller conveyor with hydraulic pallet centring unit
- Motorized roller conveyor (strapper infeed)
- Vertical strapping machine mod. 092, with pressing plate (3,000 kg pressing force)
- Pack doubler
- Motorized roller conveyor (wrapper infeed)
- Stretch wrapper mod. AV710
- 2 x Motorized outfeed roller conveyors
- Max load width: 800 -1200 mm
- Max load length: 1050 – 1400 mm
- Max load height: 1000 – 2500 mm
- Max load weight: 1500 kg
- Stretch film (wrapper):
- Max roll diameter 300 mm
- Core diameter 76 mm
- Roll width 500 mm
- Roll weight approx. 30 kg
- Film type polyethylene 20-35 microns
- Strapping band:
- Core diameter 400 mm
- Material PP or polyester
- Band width 9-16 mm
- Thickness 0.5-1 mm
- Output: approx. 40 packs/hour
- Packing capacity: more than 800.000 sacks/day
- Power supply: 400V (+/-10%), 3-phase, 50 Hz
- Compressed air: 5-6 bar
- Overall dimensions LxWxH: 16000 x 3600 x 7200 mm
- CE certificate
- Visible in production
- Availability: March 2027
