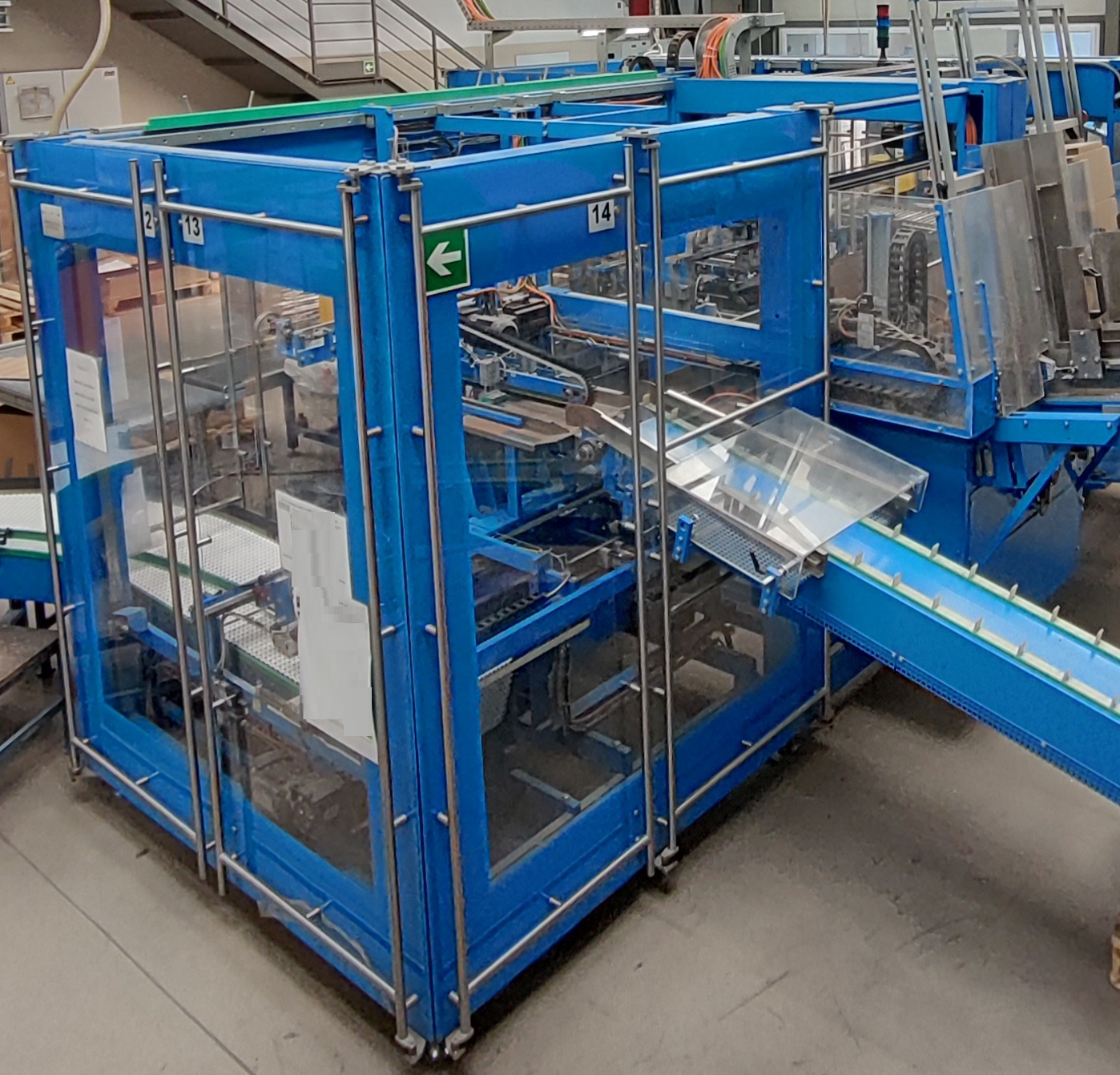

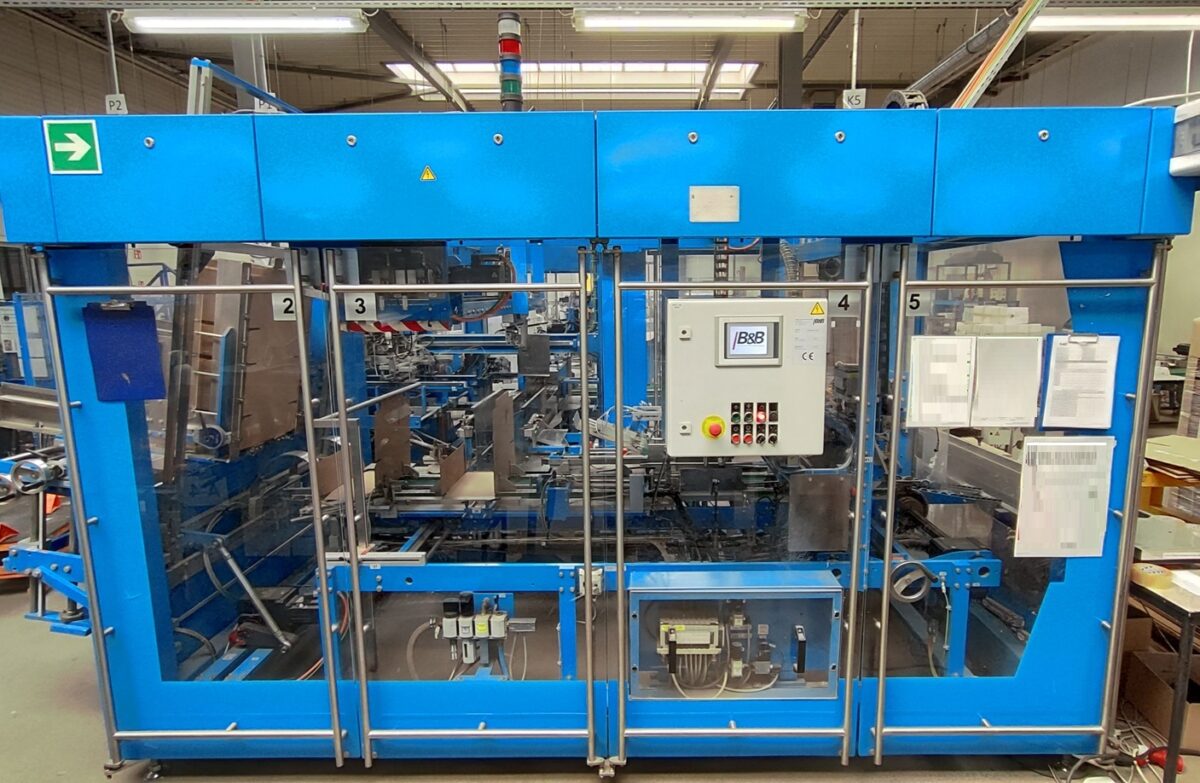

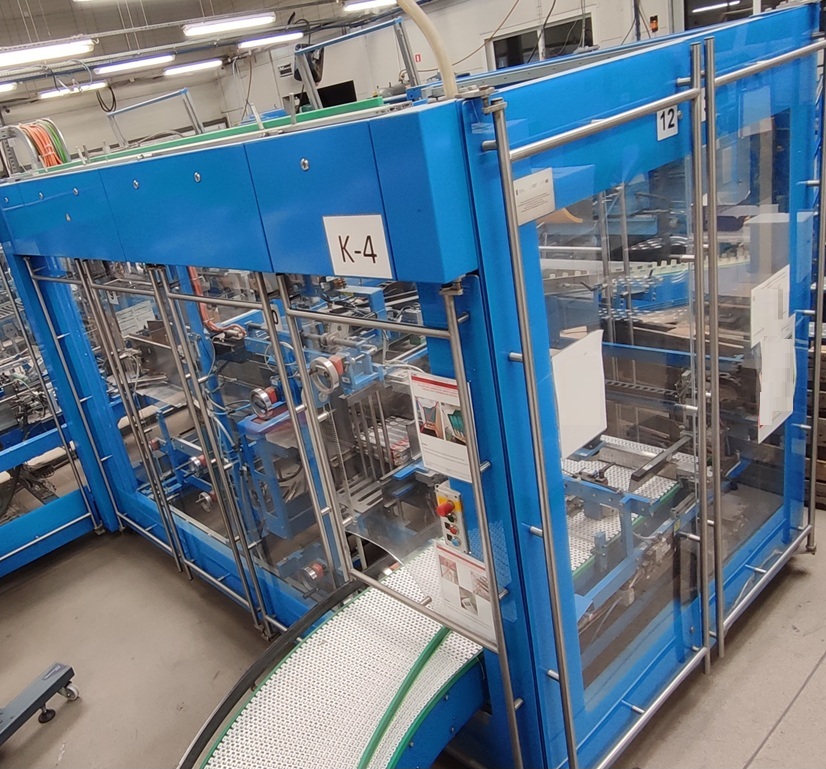

B&B Combimatic 700-2/3 packaging machine year 2017
B&B Combimatic 700-2/3 is a packaging machine from 2017. It is automatic cartoning machine, it forms, fills and closes cartons with rolls packed in film or rolls packed in boxes.
B&B Combimatic 700-2/3 packaging machine year 2017
- B&B Combimatic 700-2/3 packaging machine year 2017

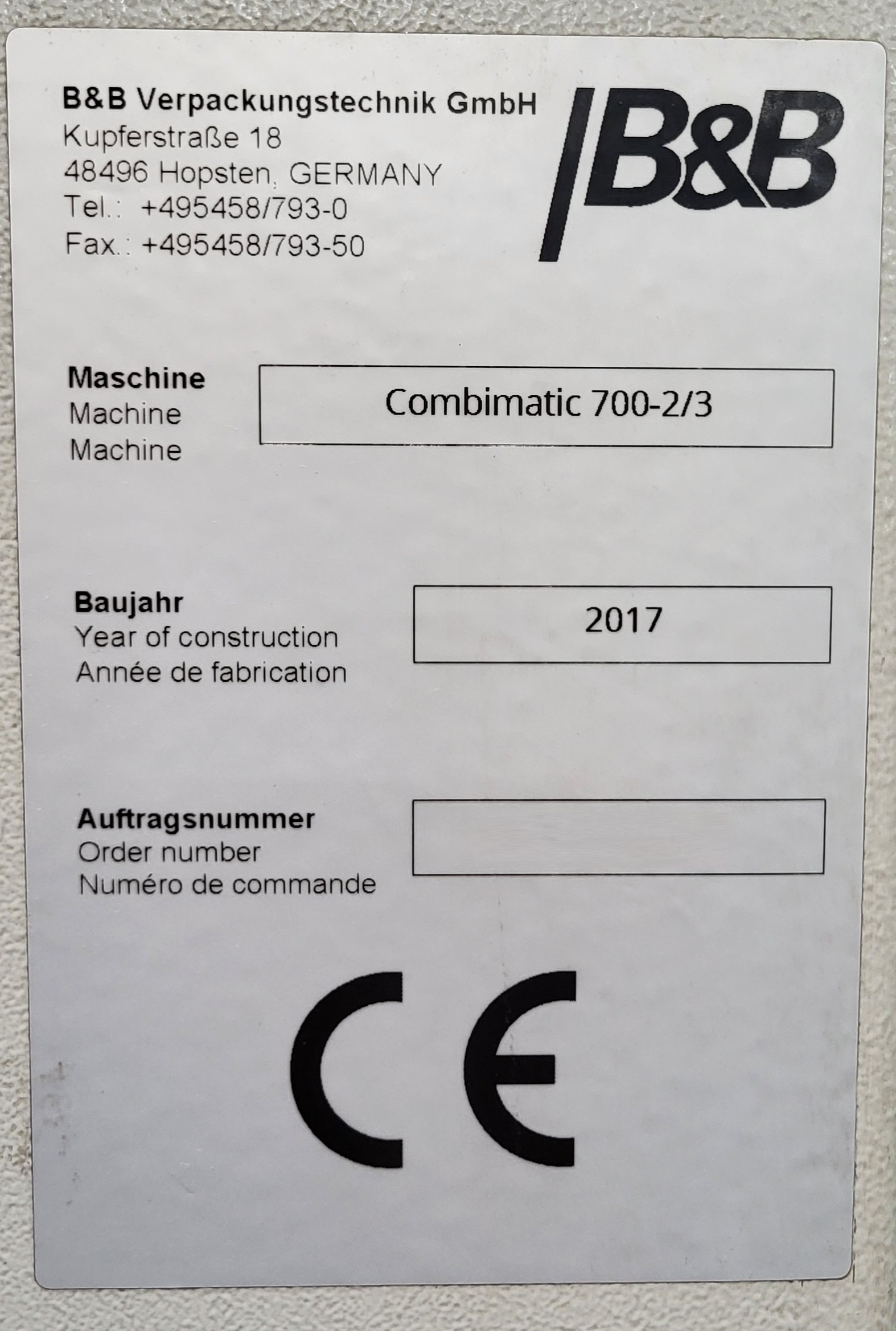

- Brand: B&B Verpackungstechnik GmbH
- Model: Combimatic 700-2/3
- Year: 2017
- Automatic cartoning machine: forms, fills and closes cartons with rolls packed in film or rolls packed in boxes
- Carton types: tray with U-lid, wrap-around
- Product – rolls: diameter 28 – 50 mm, length 285 – 505 mm
- Product – boxes: cross section min 30 x 30 mm, max 80 x 80 mm; length 300 – 510 mm
- Formation (layers): min 1 x 3 x 3, max 1 x 11 x 7 (max 20 cartons per minute)
- Carton size (L x W x H): min 300 x 120 x 130 mm, max 600 x 400 x 300 mm
- Speed: up to 100 ppm rolls, up to 135 ppm boxes (max speed depends on the formation)
- Format parts: for 6 different formats

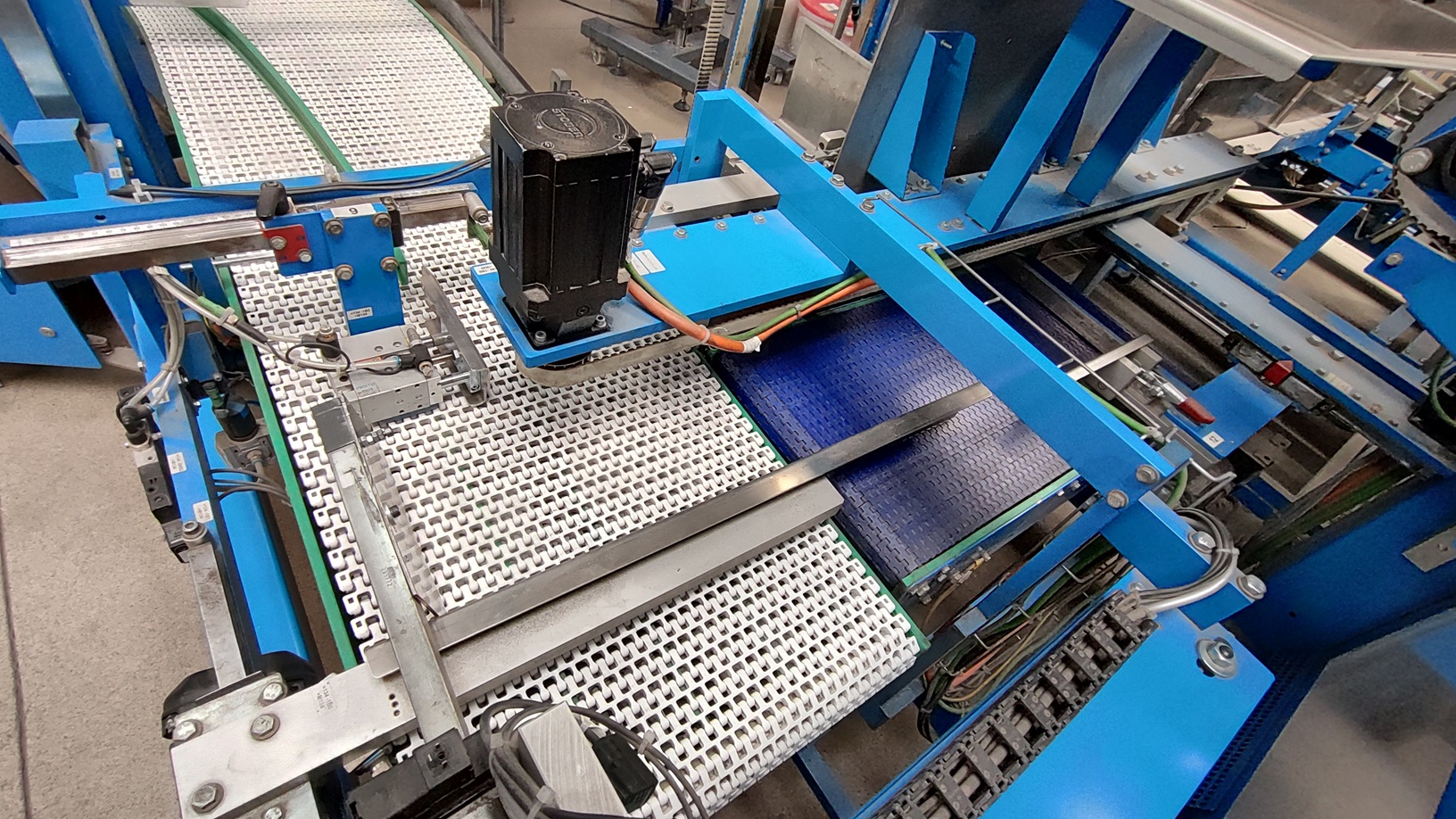

- In-feed from two roll packers (double-line belt conveyor, approx. 4000 mm long, 160 mm wide), alternatively from a 90° in-feed conveyor for boxes (mesh belt, approx. 4000 mm long, 520 mm wide)
- In-feed height: rolls 1300 +/- 30 mm, boxes 860 +/- 30 mm; discharge height 800 +/- 30 mm
- Operation and in-feed side: LH or RH

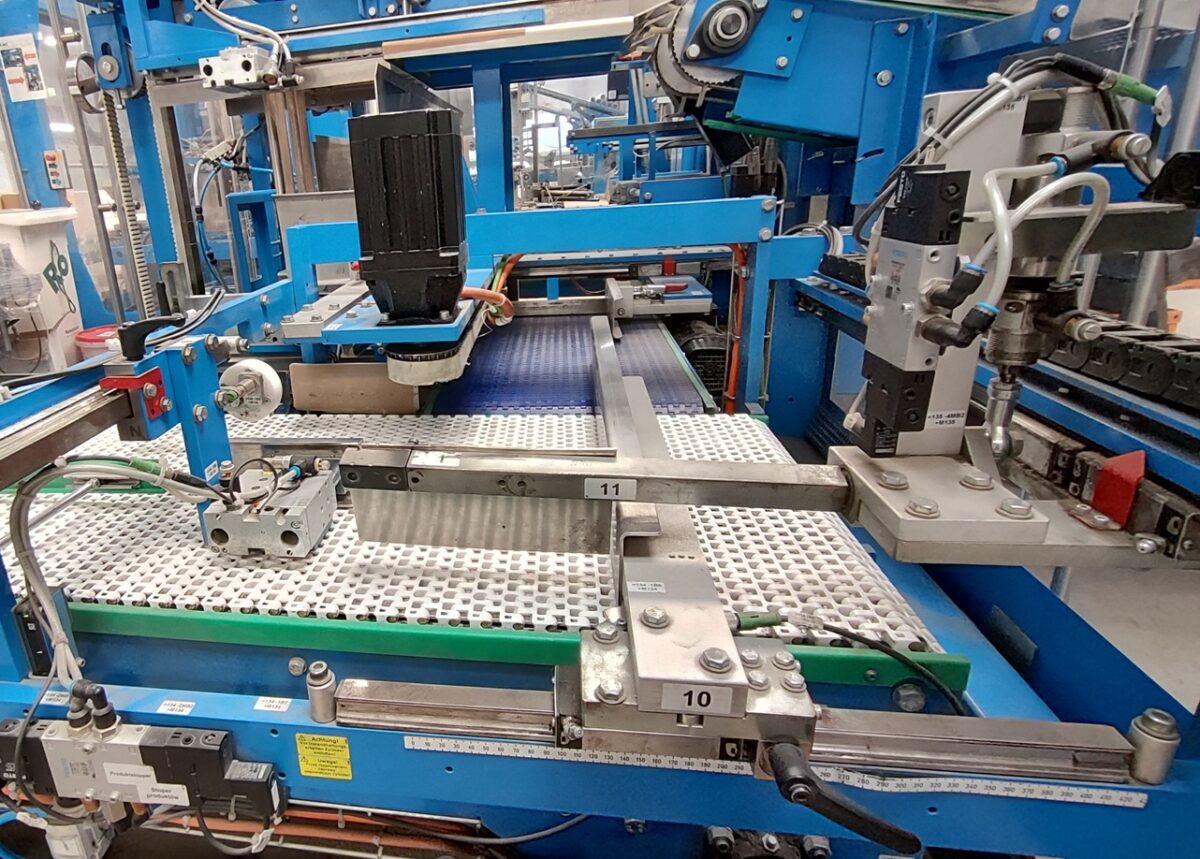

- Stacking unit for rolls and boxes, servo driven stacking plate and product pusher

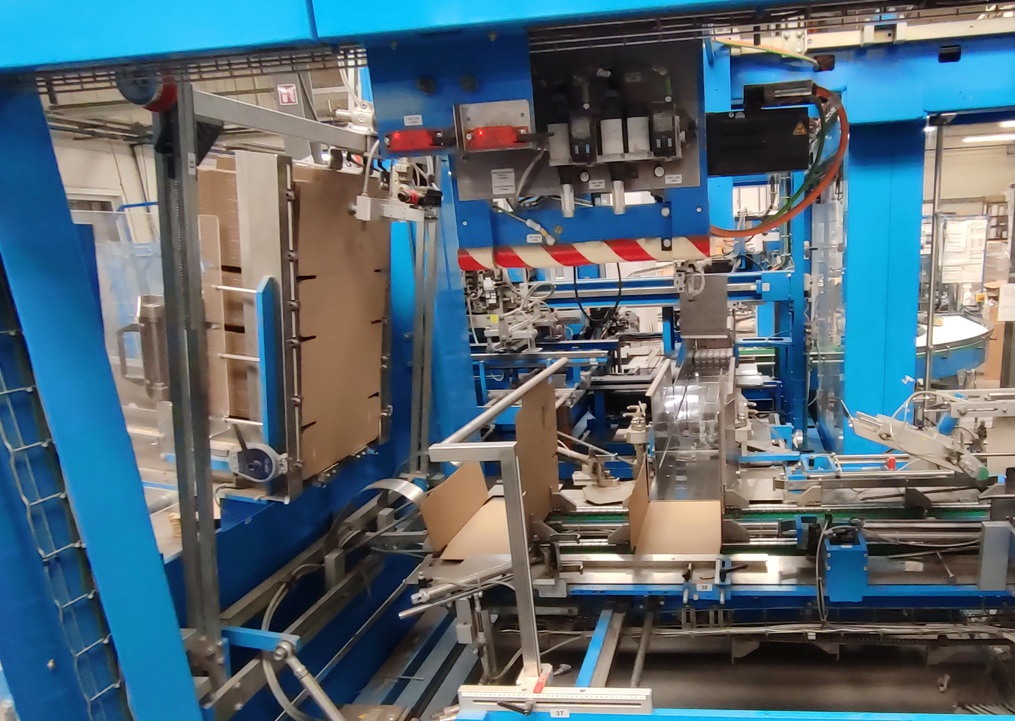

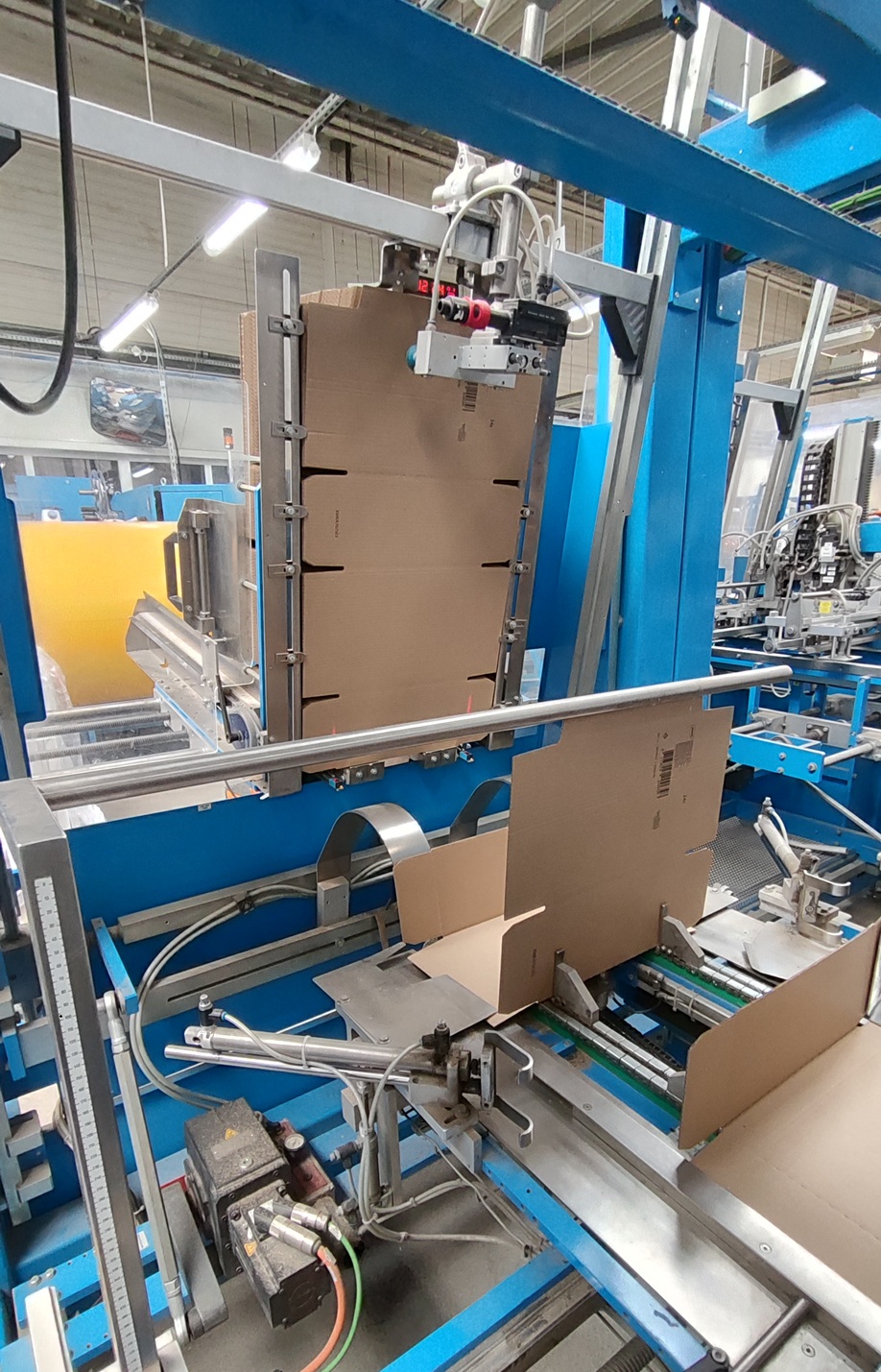

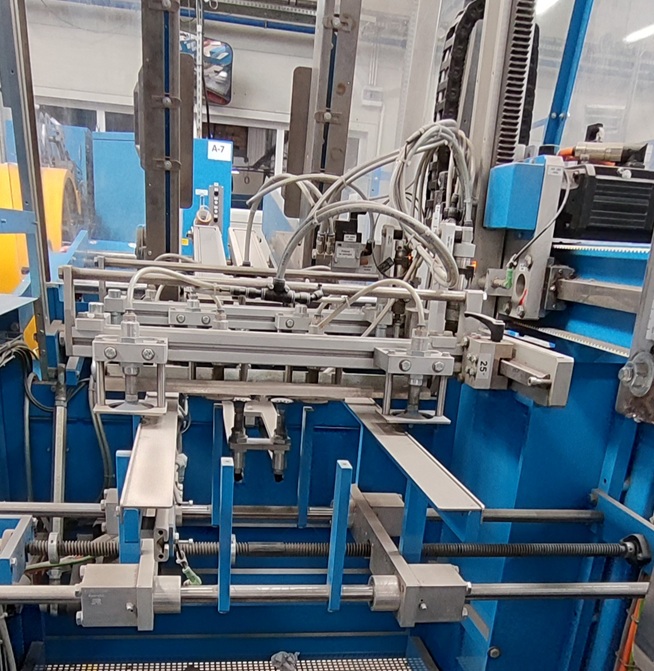

- Pick & place system for U-lids, lid blank magazine and carton blank magazine (front loading, hand-wheel adjustment, fill level control)

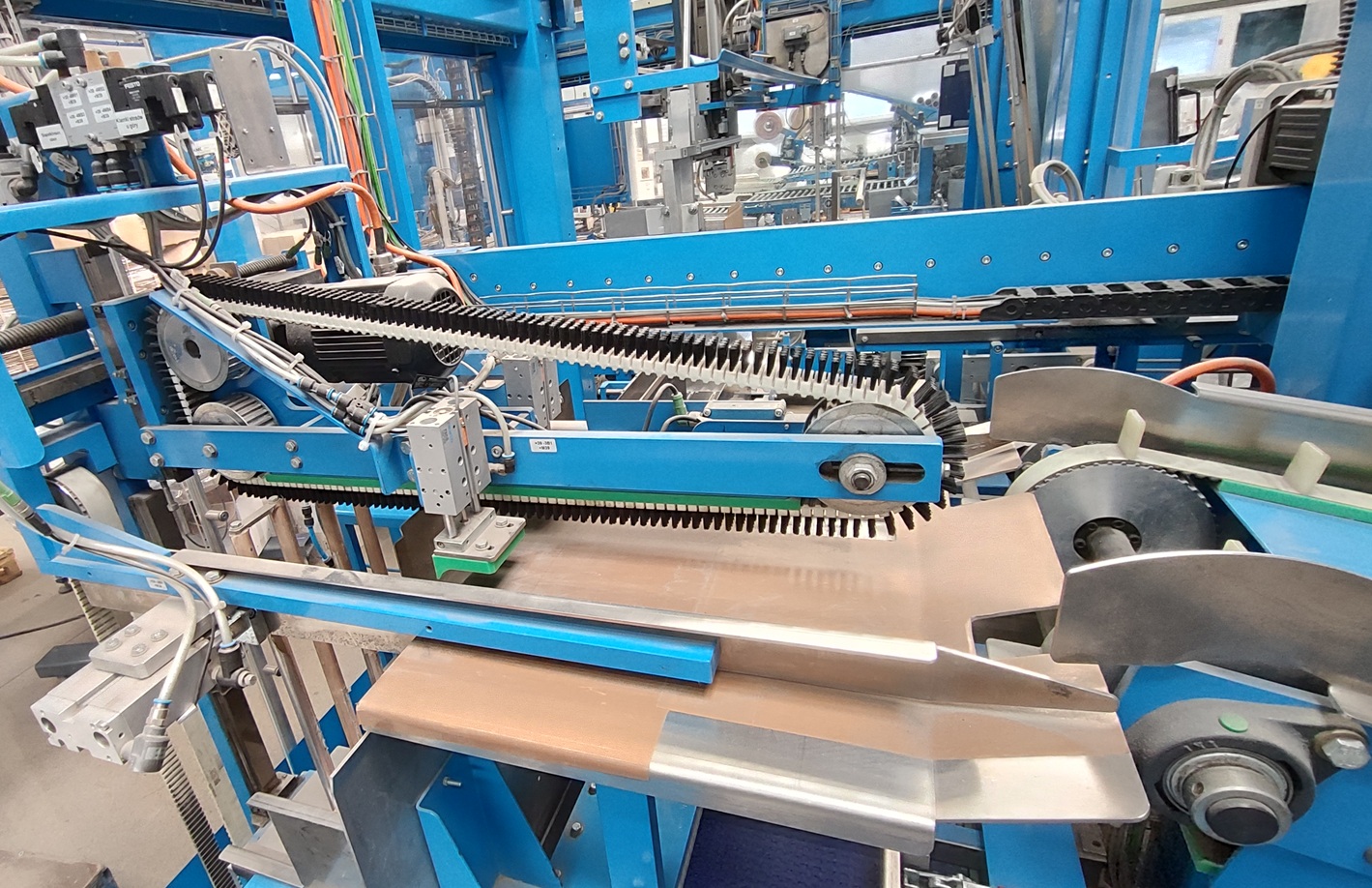

- Carton transport by double carrier chain, servo driven, case length adjustment from the operator panel
- Production counter: 753,408 boxes
- Gripper in-feed and closing station with hot-melt glue
- Hot-melt unit: Nordson ProBlue Liberty 7.2 (2 heated glue tubes and nozzles), Full-Fill system Servo motors: Stöber; AC motors: SEW; frequency converters: Lenze
- Sensors: Sick; pneumatics: Festo
- Control cabinet: Rittal, RAL 7035, separate standing with 15 m cable length, IP 54
- Voltage: 400 V, 3 Ph + N + PE, 50 Hz (TN-net)
- Installed power: 22 kW, 58 A, main fuses 3 x 50 A
- Control voltage: 24 V DC
- Compressed air: 6 bar, lube-free, connection 1/2″
- Overall layout, L x W: approx. 3550 + 1077 x 3300 mm
- CE marked
- Manuals are available
- Visible in production
- Immediately available
