INDUSTRIAL SACK LINES

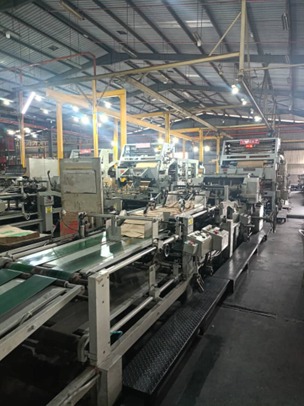

Newlong tuber model 12M – 3 +FD year 1982
Newlong 12M – 3 +FD year 1982 is a flush cut tuber. The machine is equipped with 4 color in line printer.
Description
Newlong tuber model 12M - 3 +FD year 1982
- Brand: Newlong
- Model: 12M – 3 +FD
- Year: 1982
- Flush cut
- 4 color tail end Tecon printer
- 6 plies
- Max paper width: 1400 mm
- Max paper roll diameter: 1300 mm
- Min – max tube width (gusseted): 368 – 495 mm
- Min – max tube width (flat): 368 – 685 mm
- Gusset width: 64 – 178 mm
- Min – max cutting length: 508 – 1270 mm
- Valve extension height: 25,4 mm
- Valve extension width: 57 – 76 mm
- Max speed: 280 tubes/min
- 1 cross pasting
- 5 paper roll stands
- Main drive motor: 18,5 kW
- Overall dimensions (LxWxH): 39.500 x 3.700 x 3.000 mm
- Visible in production
- Immediately available
About brand
Japanese brand
Newlong is a total engineering company dealing in printing press, converting machinery, bag making machinery and sealing/tying machinery.
The company has branch offices in more than 10 overseas, we provide our products and after sales service to customers. Newlong technology is used for familiar products such as foods, chemicals, shopping bag in department stores, etc.
Sheet fed NEWLONG model 335T + 504TH year 2007
Newlong 150-Y2 with 2 colors in-line printer refurbished in 2009 by Newlong
