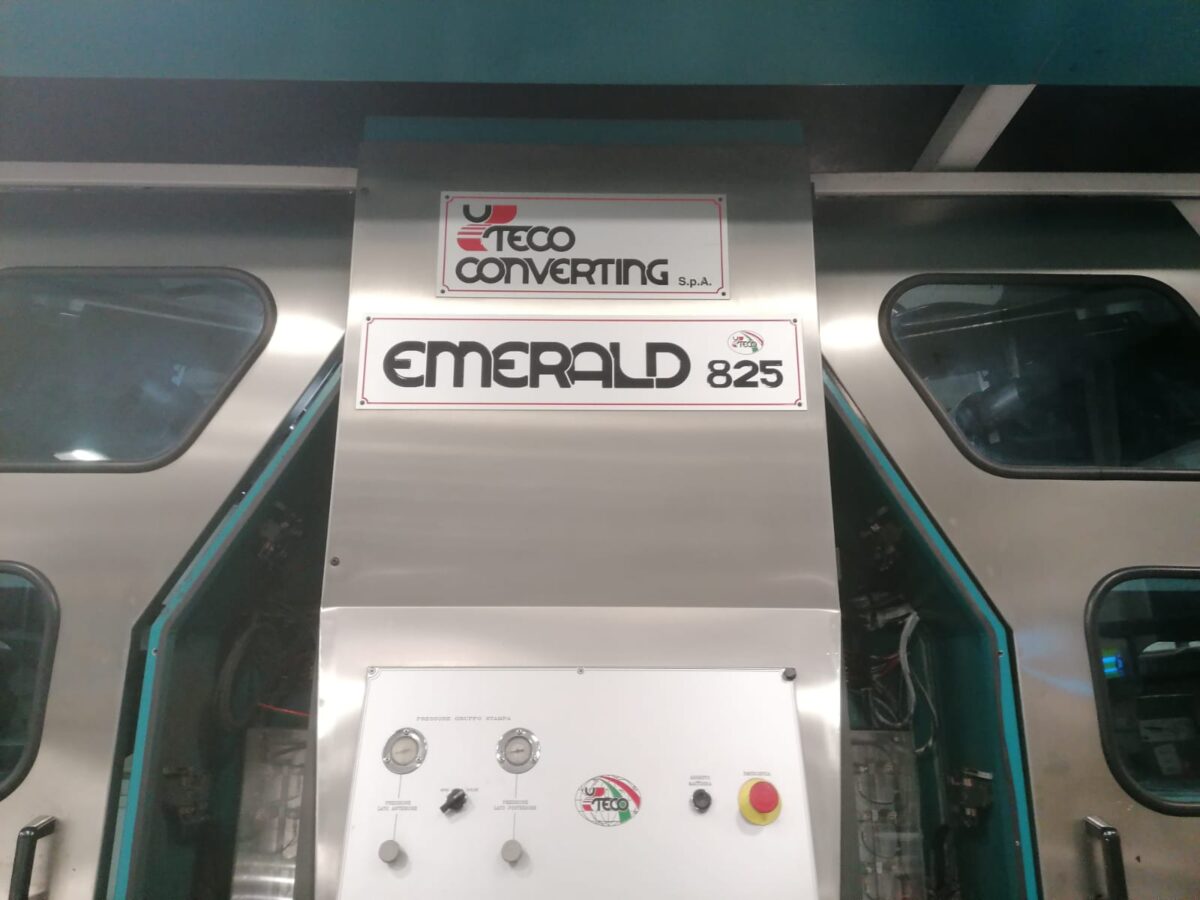

Uteco Emerald 825 model 120 year 2006
Uteco Emerald 825 model 120 year 2006 is a central drum flexo printer designed to work with film and paper. Many sleeves and aniloxes included with the machine.
Description
Uteco Emerald 825 model 120 year 2006
- Brand: Uteco
- Model: Emerald 825 model 120
- Year: 2006
- 8 colors
- Central drum
- Gearless
- For paper and film
- Materials: paper (18 – 120 g/m2), polypropylene (15 – 70 my), polyethylene (25 – 120 my), polyester (12 – 120 my)
- Solvent based inks
- Unwinder TA-U 1000
- Rewinder TA-R 1000
- Maximum material width: 1250 mm
- Maximum printing width: 1200 mm
- Min – max print repeat: 330 – 800 mm
- Mechanical speed: 400 m/min
- Drives and motors of Control Technique
- Tension 400 VOLT +/- 5%
- Automatic washing system
- Drying system: diathermic oil batteries
- Viscosimeters: FKR – S3/PH FASNACHT (updated in September 2017, new software)
- Corona treatment: Ferrarini & Benelli
- BST video camera and smart register
- Feeding roller CA012
- 10 cylinders Garell
- 26 aniloxes:90APEX, 90-451, 90-45II, 70-55, 110I, 110II, 110III, 140I, 140II, 140III, 140N, 160I, 160II, 160III, 200-10, 320A, 320B, 320C, 320D, 320IV6, 320IV7, 320VERNICE, 360III, 360A, 360C, 360D
- Sleeves for full printing job (in total 14): 1 x 65, 1 x 87, 1 x 93, 1 x 95, 1 x 99, 1 x 99,5, 1 x 101, 1 x 101,5, 1 x 109, 1 x 113, 1 x 113,5, 1 x 115,5, 2 x 121
- Sleeves (in total 317): 9 x 33, 9 x 34, 9 x 35, 9 x 36, 9 x 37, 9 x 38, 9 x 39, 9 x 40, 9 x 41, 9 x 42, 9 x 43, 9 x 44, 8 x 45, 9 x 46, 9 x 47, 9 x 48, 9 x 49, 8 x 50, 8 x 51, 9 x 52, 9 x 53, 9 x 54, 9 x 56, 9 x 57, 8 x 58, 9 x 59, 9 x 60, 9 x 61, 8 x 62, 7 x 62, 9 x 63, 9 x 64, 9 x 65, 9 x 66, 9 x 68
- 11 Doctor blades
- 12 pumps
- 10 ink trays
- 16 inkwells
- Visible in operation
- Availability: to be confirmed
About brand
Italian brand
For over 35 years, Uteco Group have offered printing and converting solutions that anticipate market changes, believing in the values of innovation, flexibility and sustainability. The most important milestones in Uteco Group history are closely linked to the manufacturing of particular innovative solutions for printing and converting, both for Italian customers and European, American and other markets.
Uteco offers 4 main platforms of CI flexo presses: Diamond, Crystal, Onyx and Topaz, each one thought and design to best suit different market segments each with features and innovative solutions thought for each segments.
Uteco Onyx 876 GL model 80 year 2006
Uteco Onyx 876 GL model 80 year 2006 is 8 colors, gearless flexo printer with central drum, intended for usage of film and solvent based inks, with mechanical speed of 365 m/min and material width of 850 mm equipped with pneumatic ink system, electrical drying system, camera BST Premius etc. It is visible in production and immediately available.
Uteco Onyx 876 model 140 year 2006
