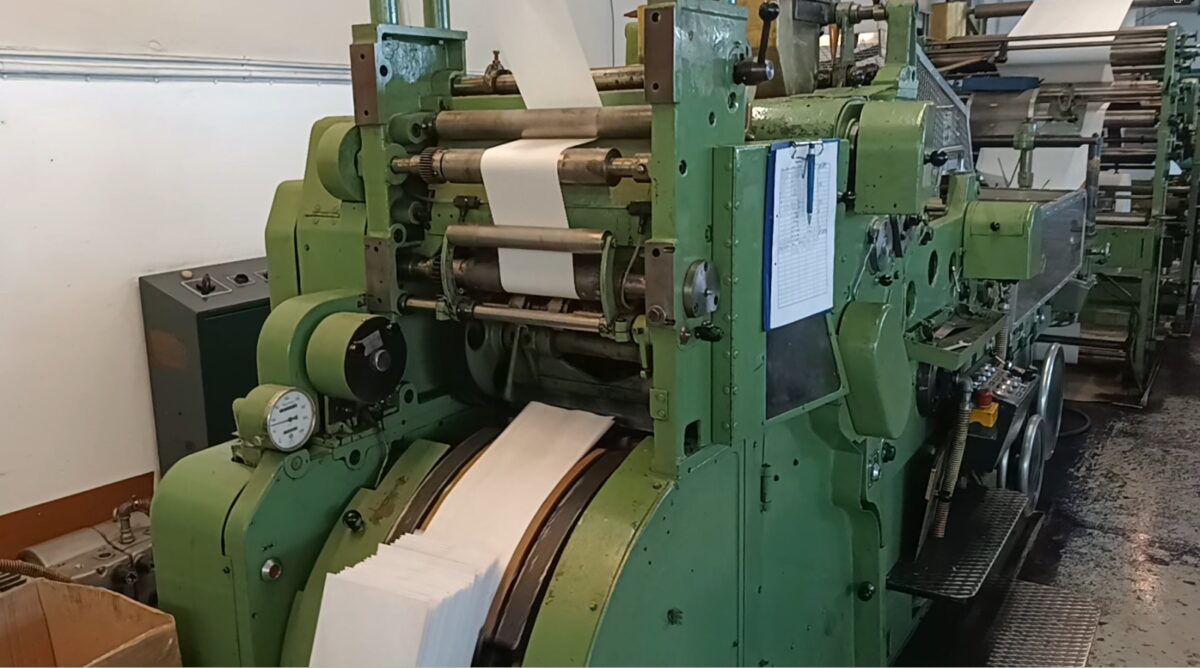

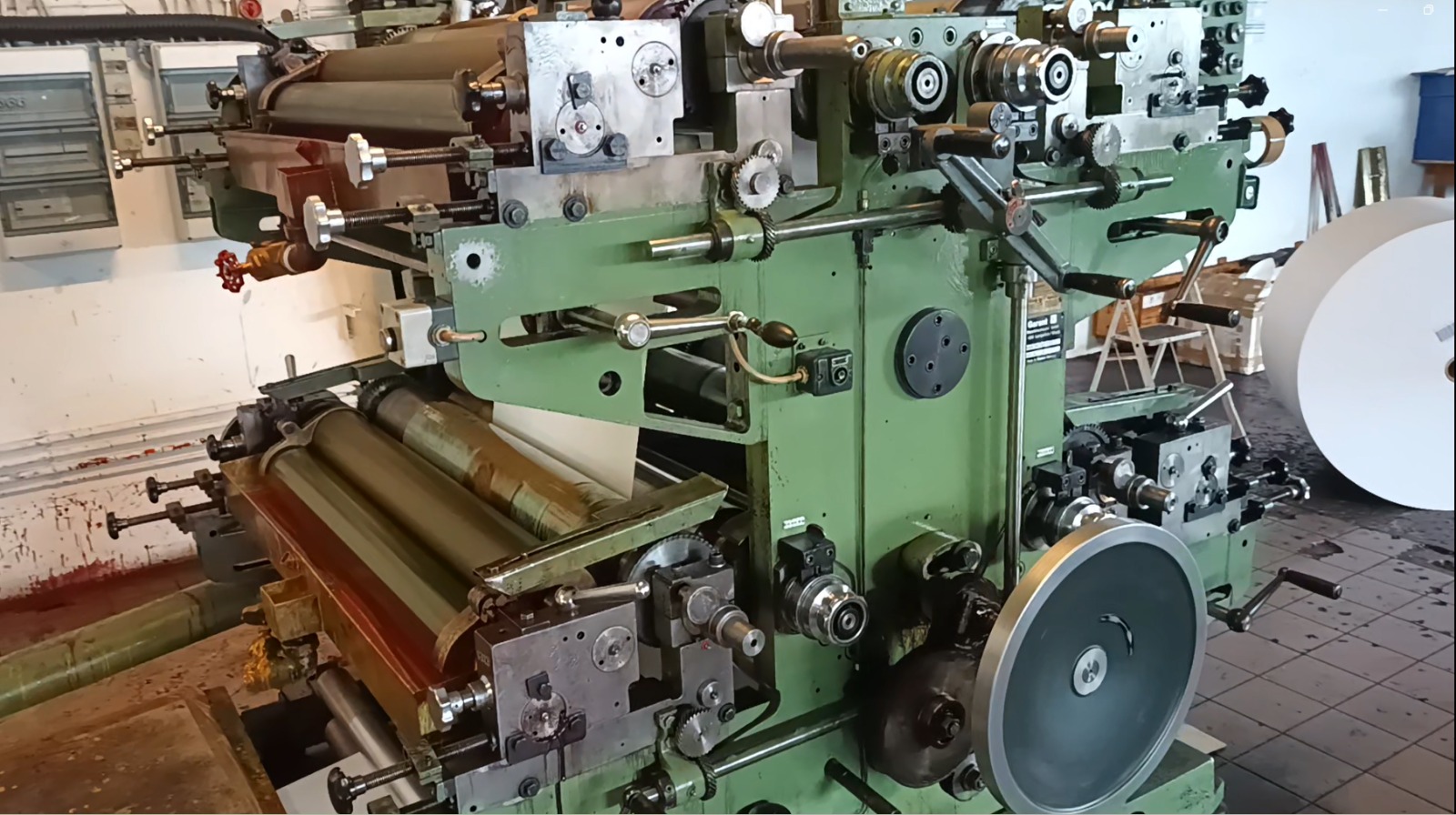

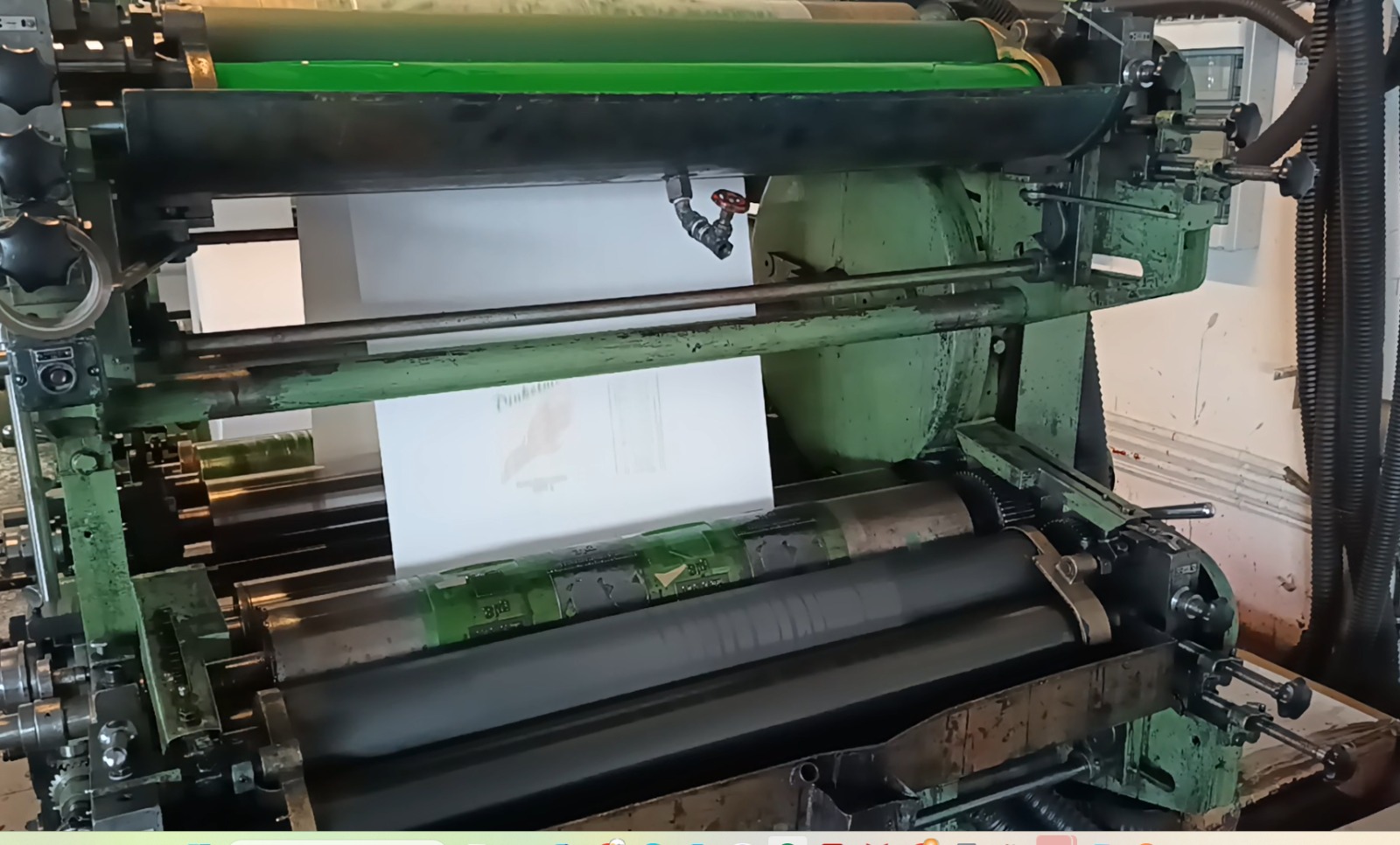

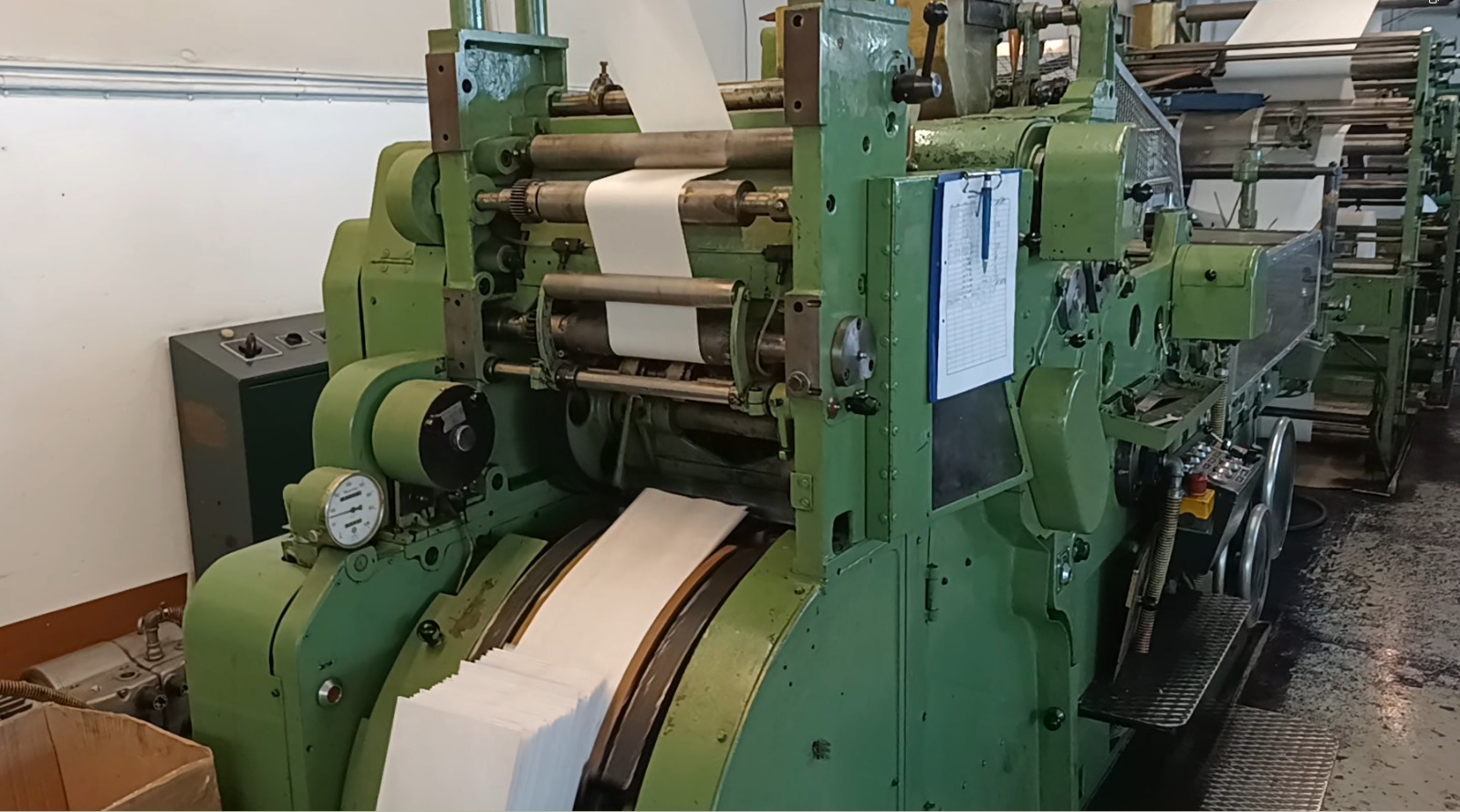

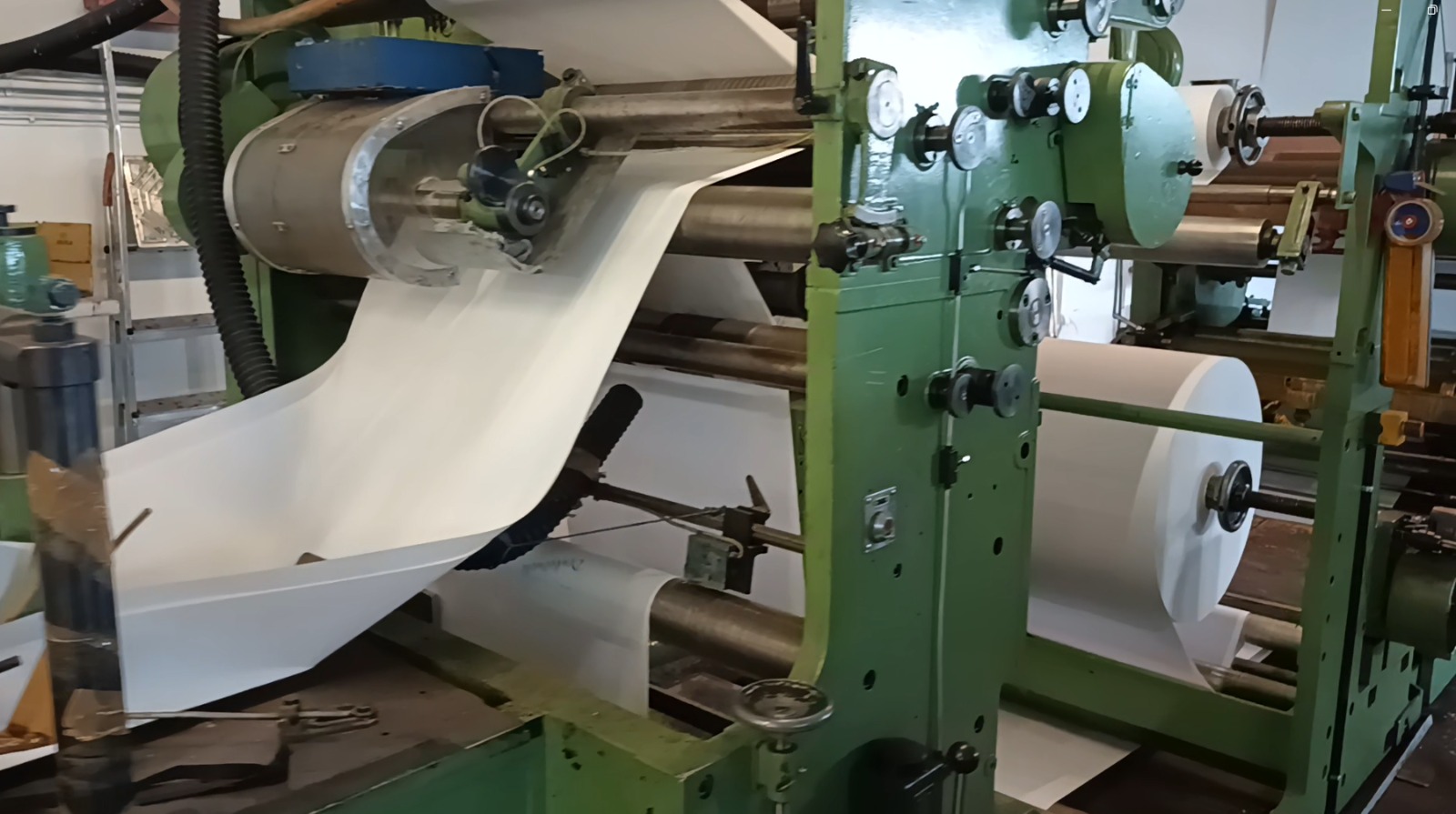

Triumph 3A with QMS 992
Triumph 3A with 4 color QMS 992 is SOS bag making machine for the production of single or double layer paper bags with glued bottoms.
Triumph 3A with QMS 992
- Brand: Garant Maschinen
- Model: Triumph 3A
- With 4 color QMS 992 (maximum printing length: 1000 mm)
- For the production of single- or double-layer paper bags with glued bottoms
- 1 or 2 plies
- Maximum roll diameter: 1000 mm
- Maximum web width: 1020 mm
- Core diameter: 76 mm
- Min – max bag width: 180 – 230 mm
- Gusset: 60 – 180 mm
- Max bag length: 510 mm
- Max cutting length: 610 mm
- Cutting length (to be confirmed): 460, 490, 500, 530, 550, 580, 600, 610 mm
- Printing cylinders (to be confirmed): 4 x 490, 4 x 530, 4 x 550, 4 x 580, 4 x 610 mm
- Forming plates (to be confirmed): 1 x 160, 1 x 165, 1 x 170, 1 x 175, 1 x 180, 1 x 210, 1 x 230, 1 x 250, 1 x 260, 1 x 300, 1 x 320
- Maximum output depending on format): 40 – 60 bags per minute
- Overall dimensions L x W x H: 13000 x 2200 x 2300 mm
- Visible in production
- Immediately available
German brand
Founded in 1992, Garant Maschinenhandel GmbH is a German company and part of the Windmöller & Hölscher Group. It specializes in the purchase, overhaul, and resale of used flexible packaging and converting machinery.
They supply pre-owned flexographic printing presses, extrusion lines, bag-making machines, and other equipment for film and packaging production.
