Hosokawa Alpine extruder year 1979/80, made in Germany
Hosokawa Alpine is an extruder made in Germany for the production of tubular and flat film. The machine is designed to work with HDPE film.
Description
Hosokawa Alpine extruder year 1979/80, made in Germany
- Brand: Hosokawa Alpine

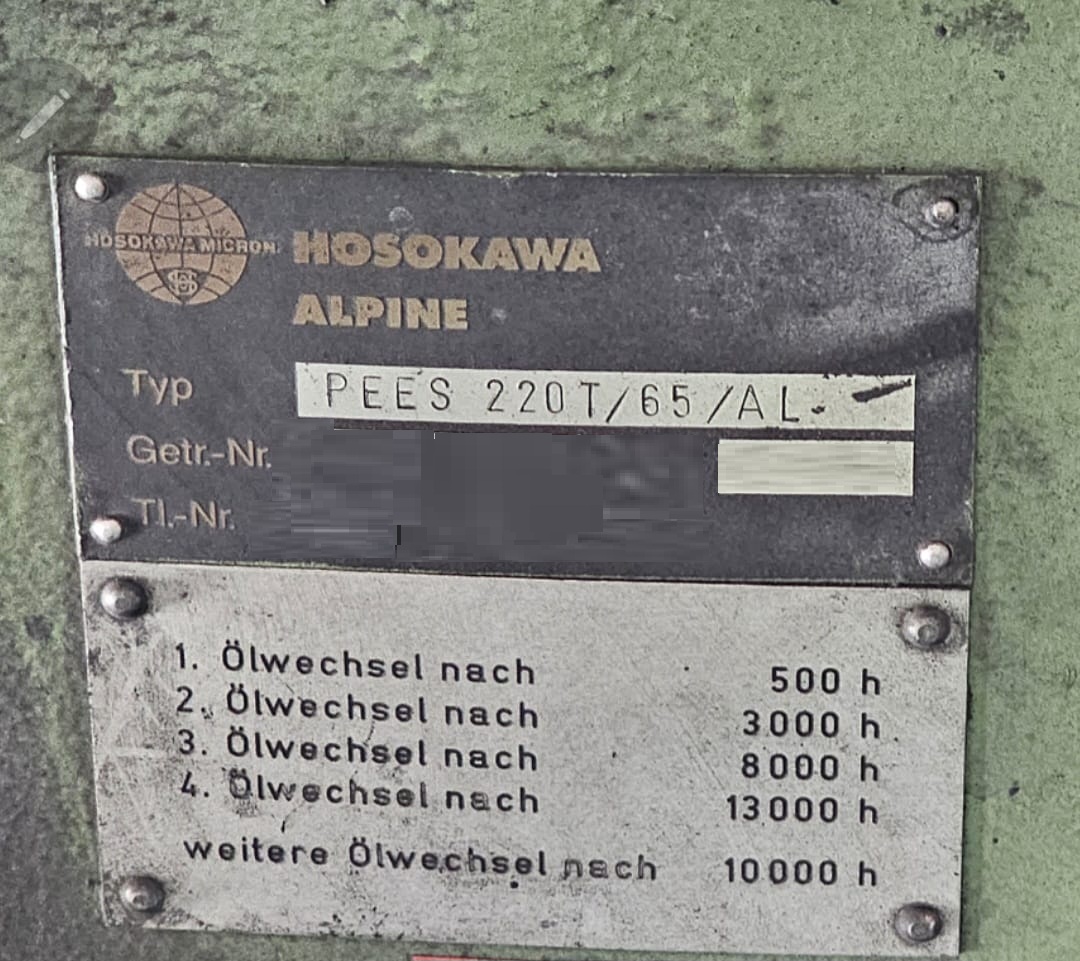

- Model: PEES 220/T/65/AL
- Year: 1979/80
- Monoextruder
- In 2002 was done a refurbishment (new screw cylinder complete, outer part of screw, PLAST CONTROL dosing system for 3 materials).
- For the production of tubular and flat film
- Material: LDPE film (from 30 microns) and HDPE film (from 15 microns). The owner produces only HDPE 15 to 25 microns (for t-shirt bags), but they also produced HDPE film with thicknesses over 100 microns

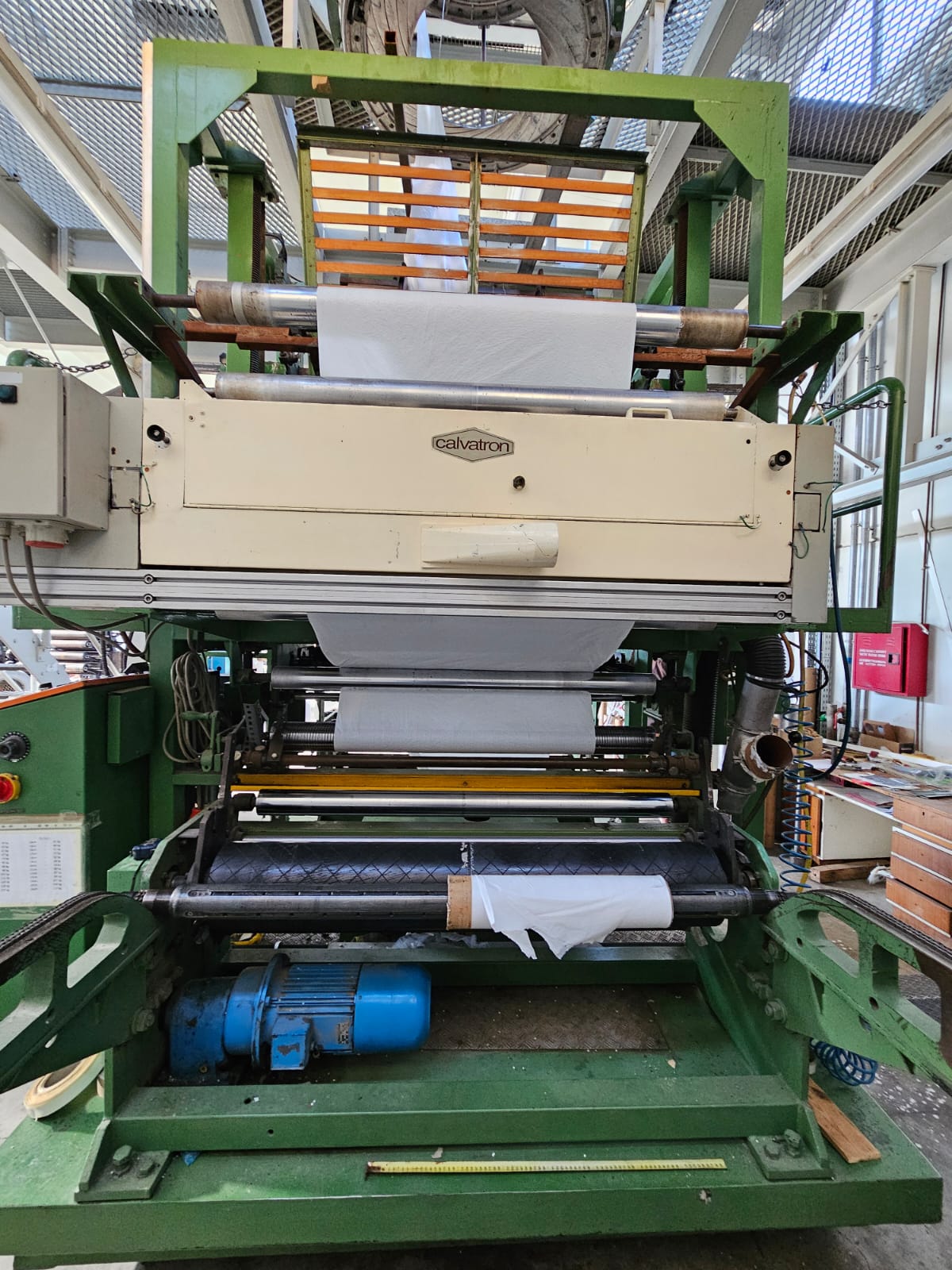

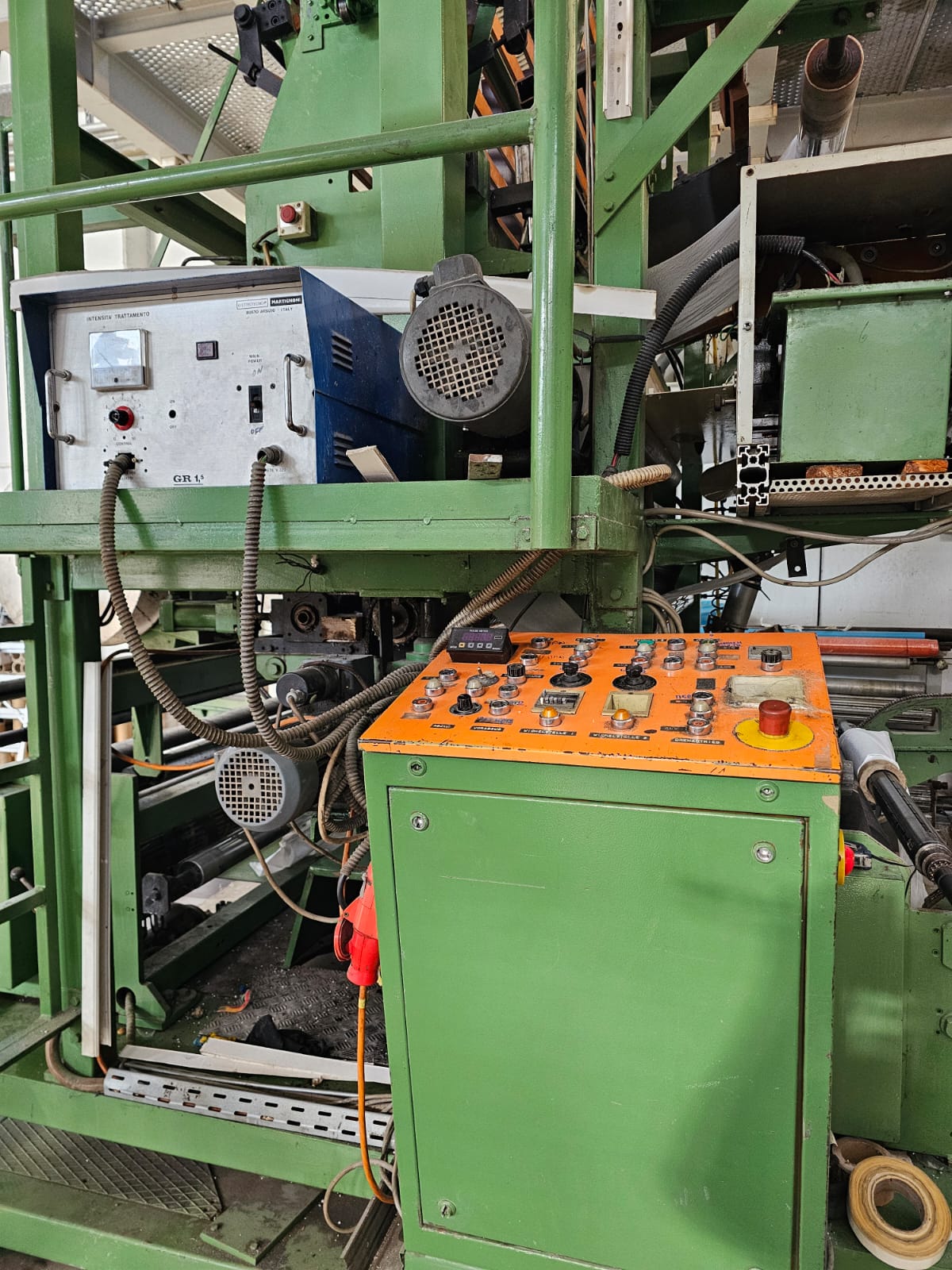

- With Corona treatment
- With micro perforation with cold needles on line

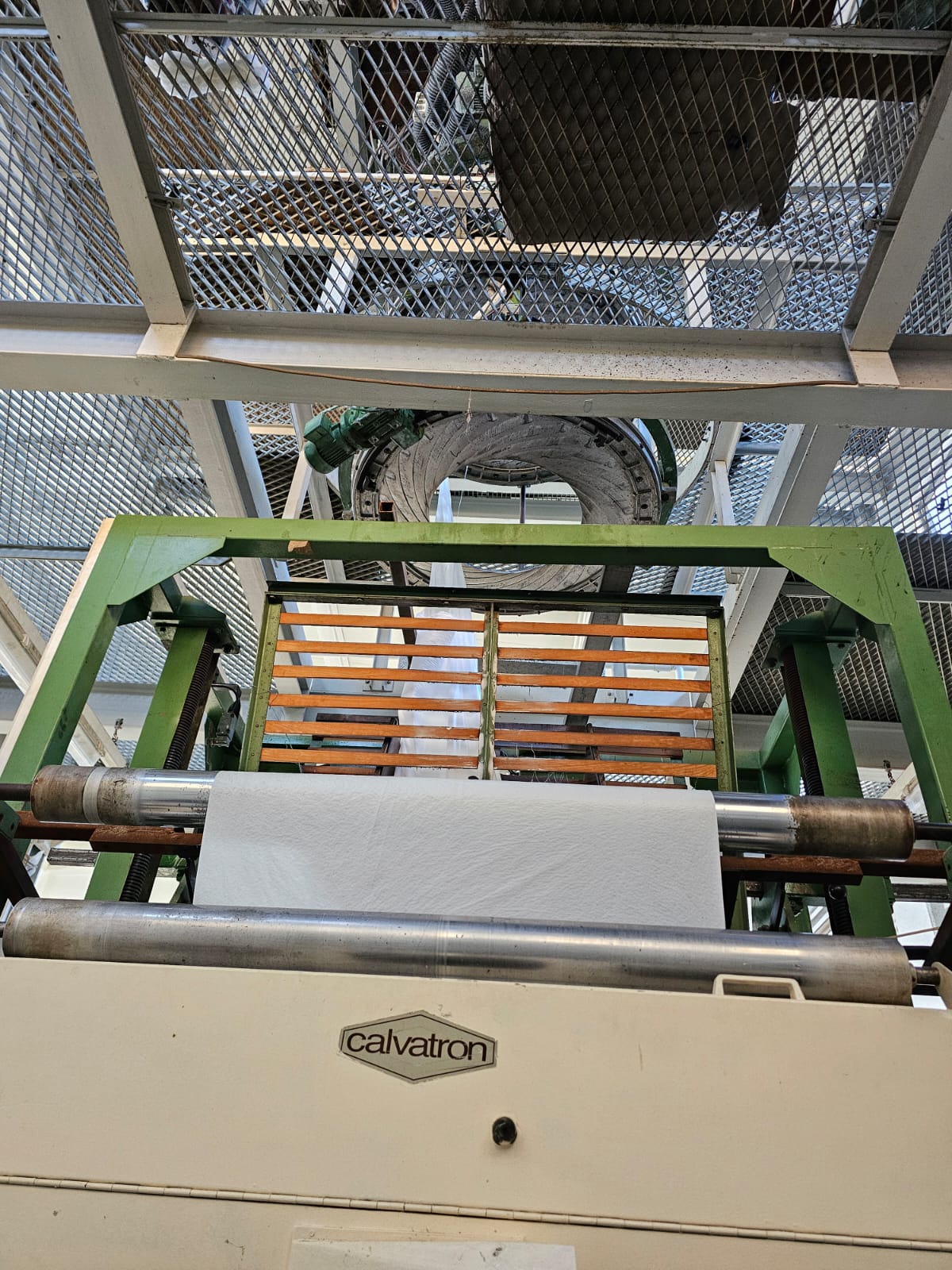

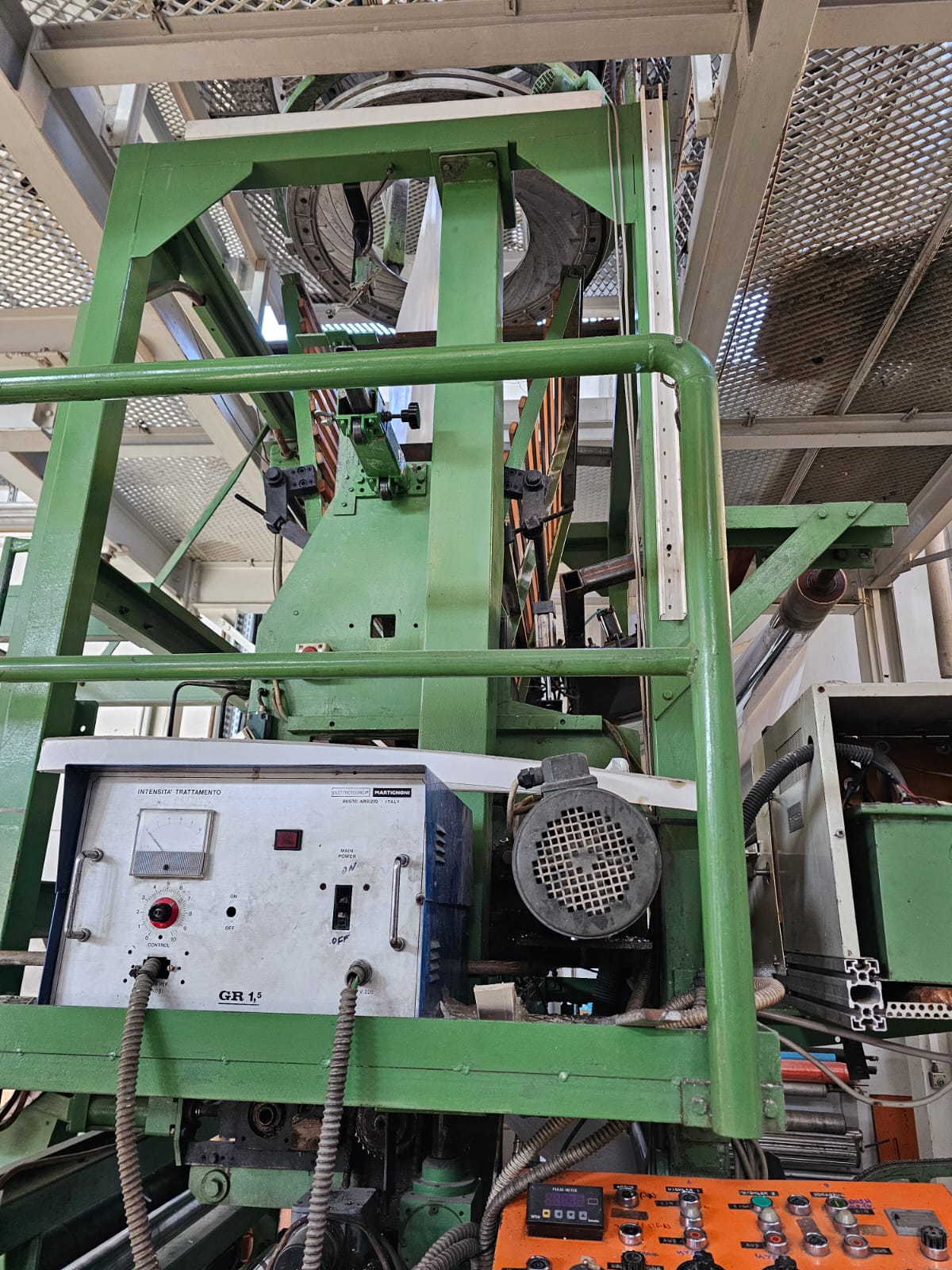

- With tower

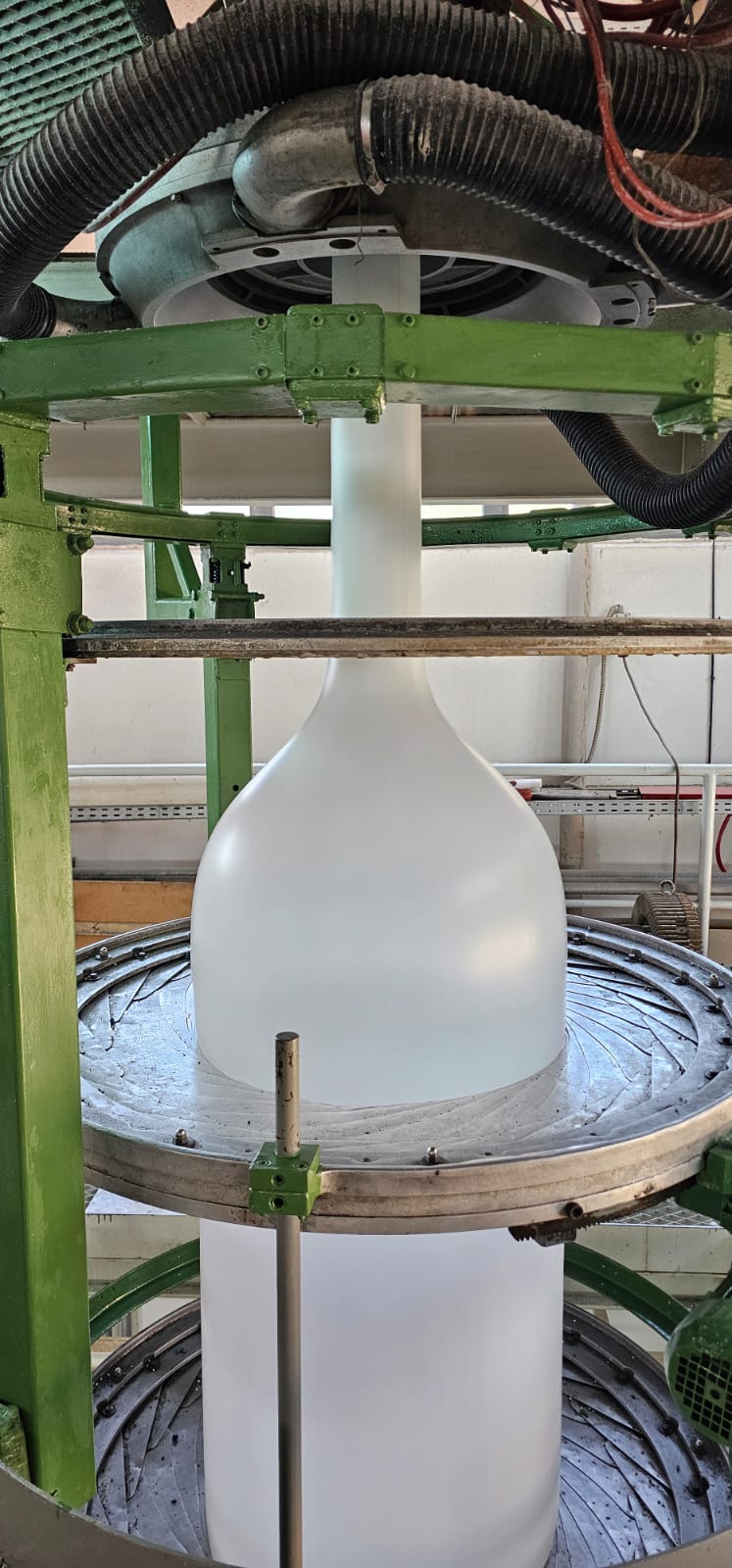

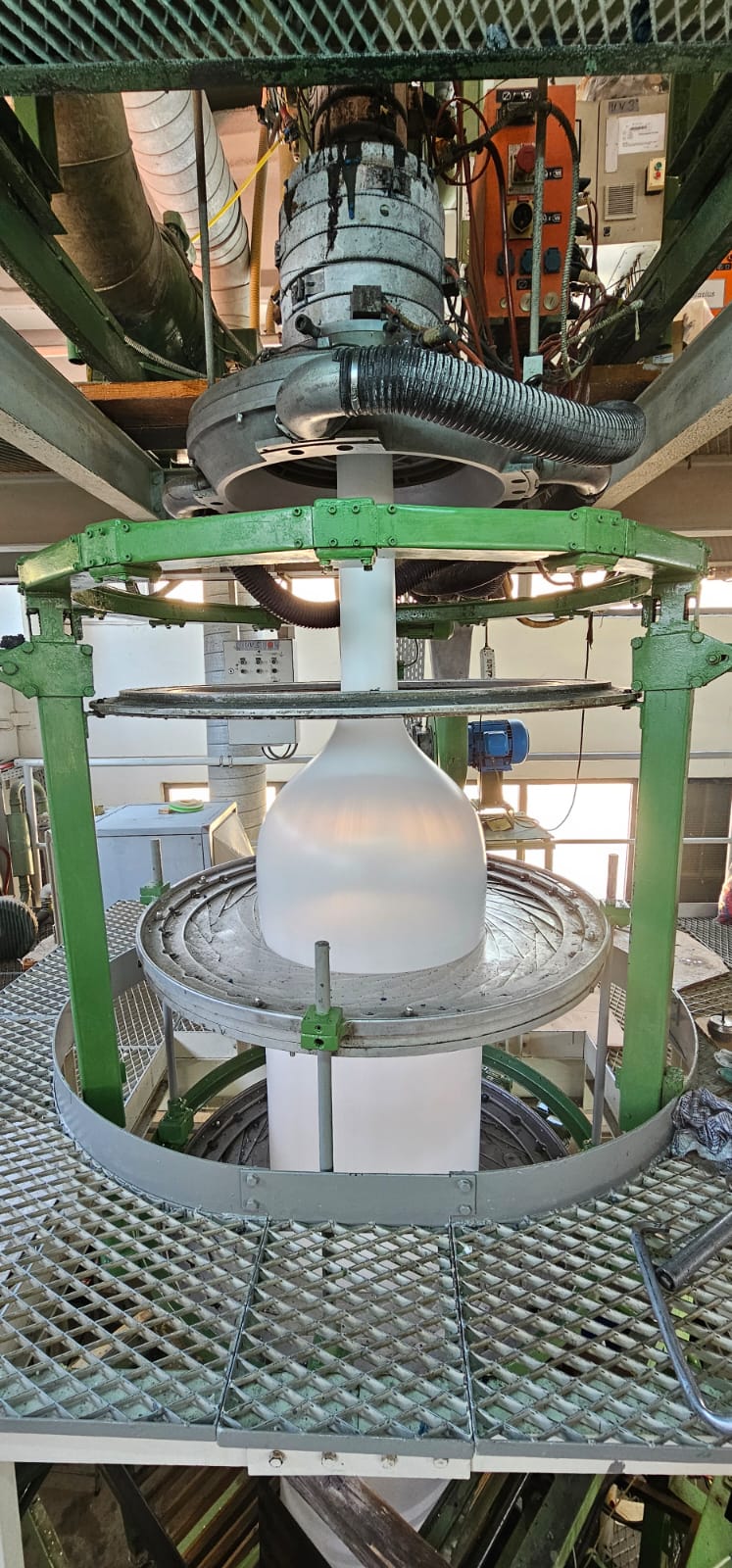

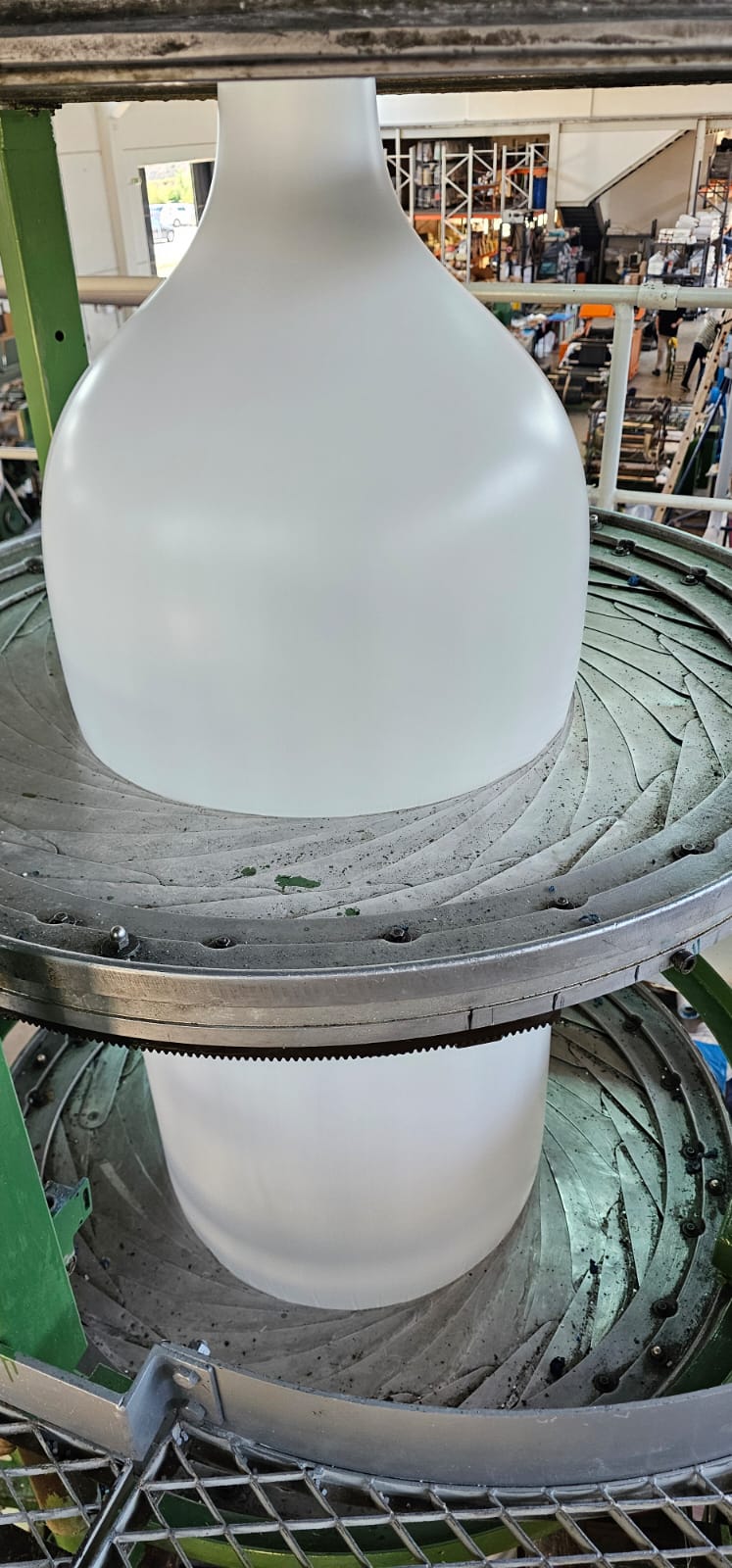

- With bubble cage (with 2 diaphragms – iris)

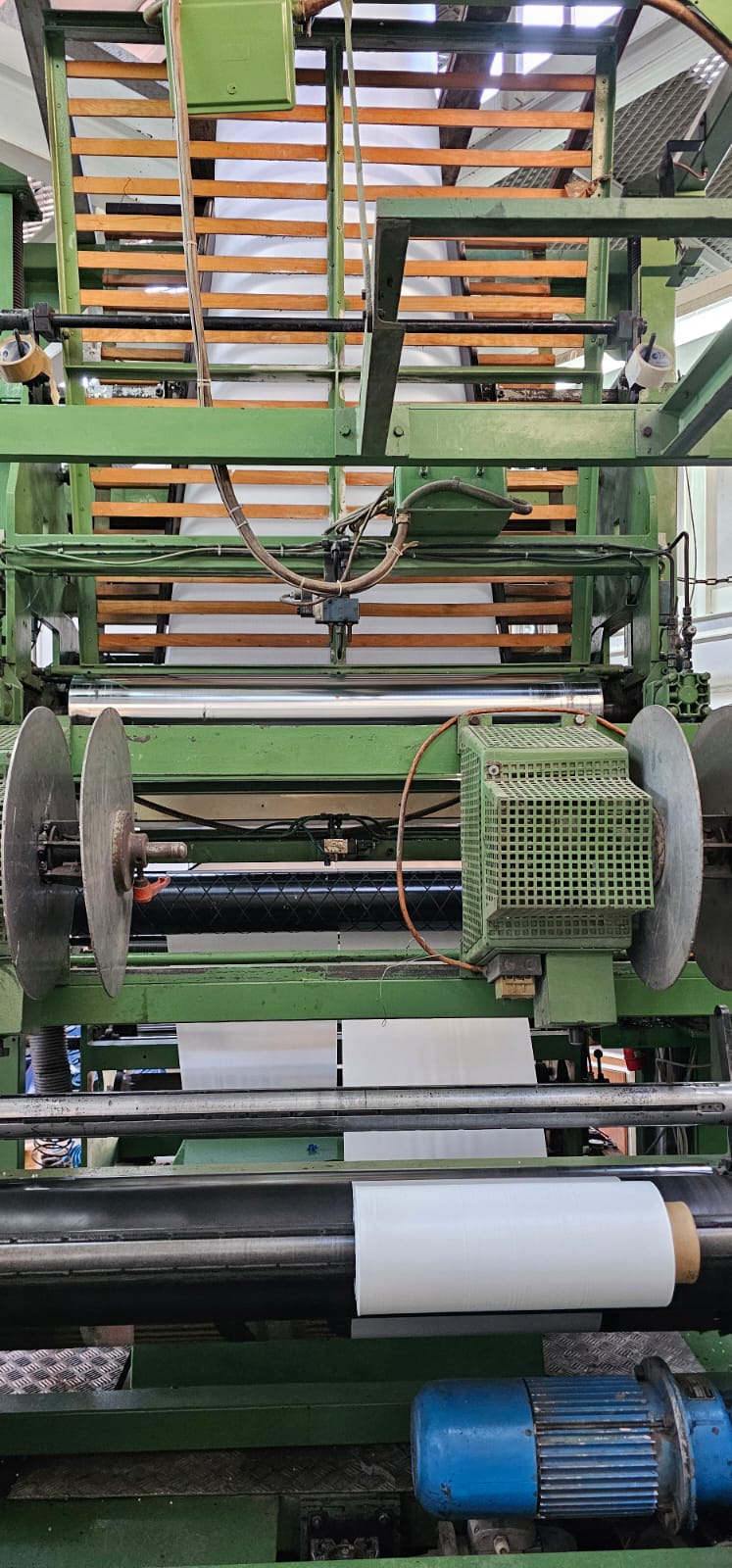

- With a side gusseting system and a hot slitting unit to split the film and seal it, allowing the production of two separate tubular film reels (for example 500 mm + 500 mm)
- Max film width: 1000 mm
- Max diameter of the finished reels: 800 mm
- Max production: 120 kg per hour

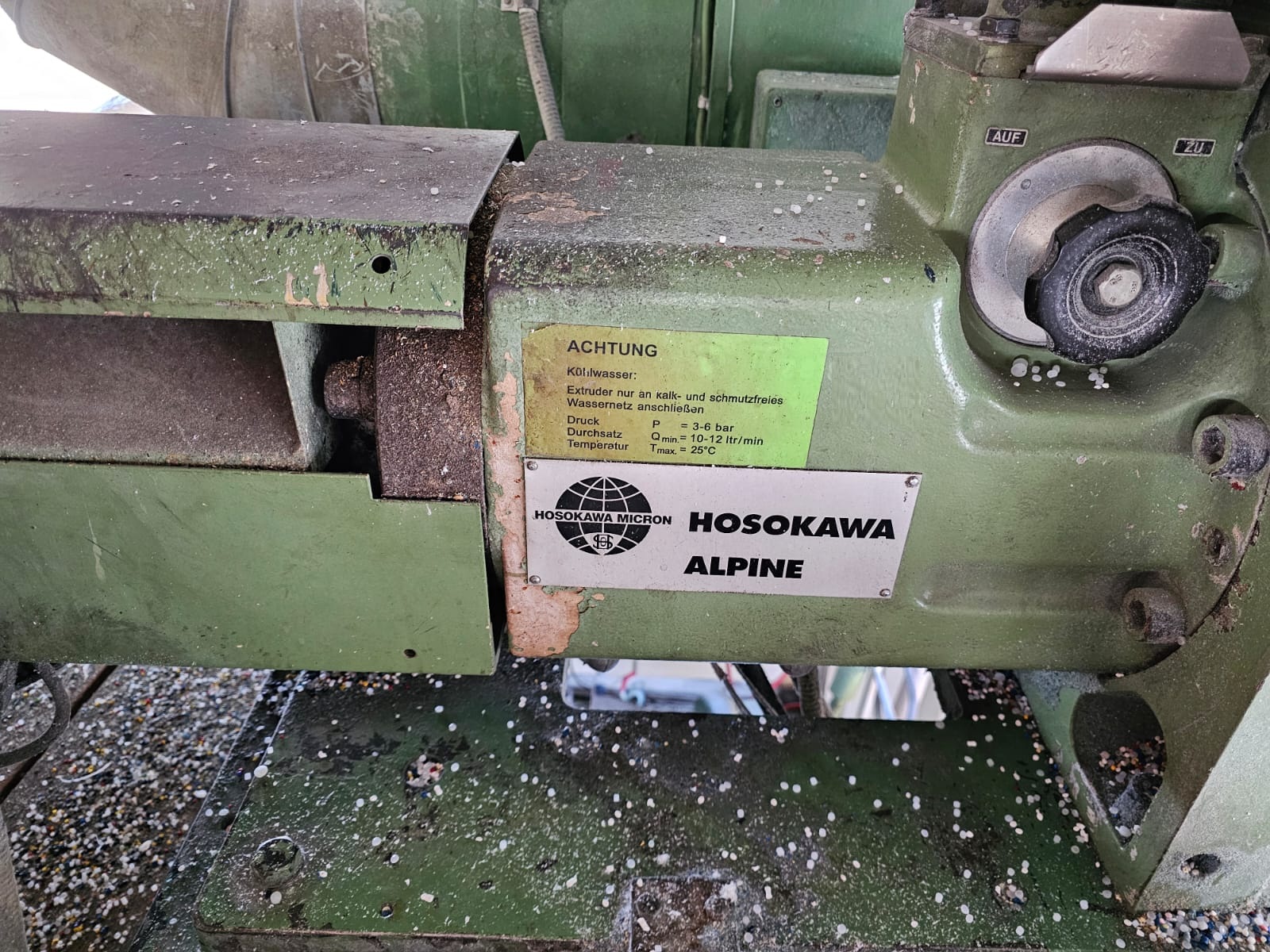

- Screw diameter: 65 mm (HOSOKAWA ALPINE HS65-18D)
- Die diameter: 150 mm

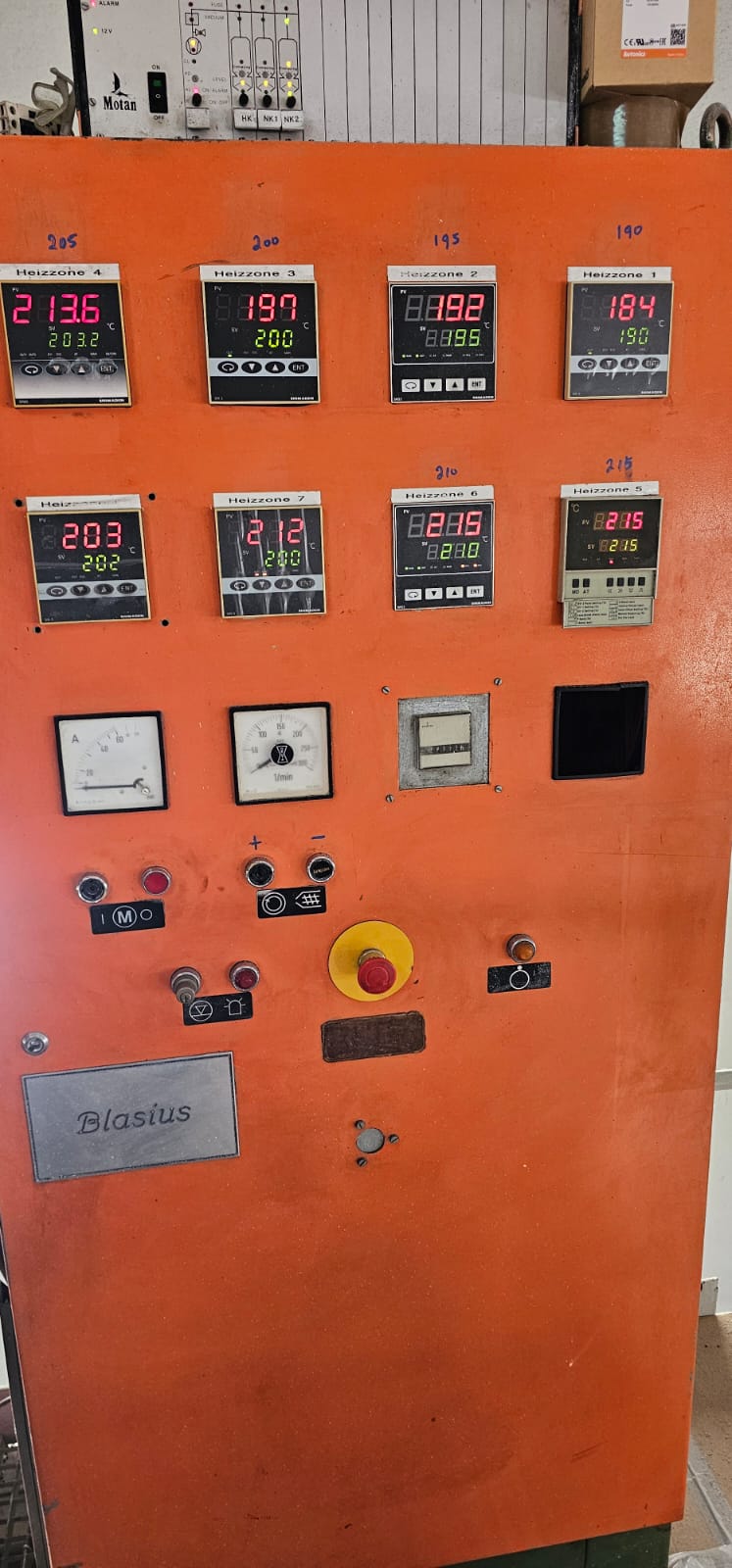

- With Hosokawa Alpine die head with many temperature zones

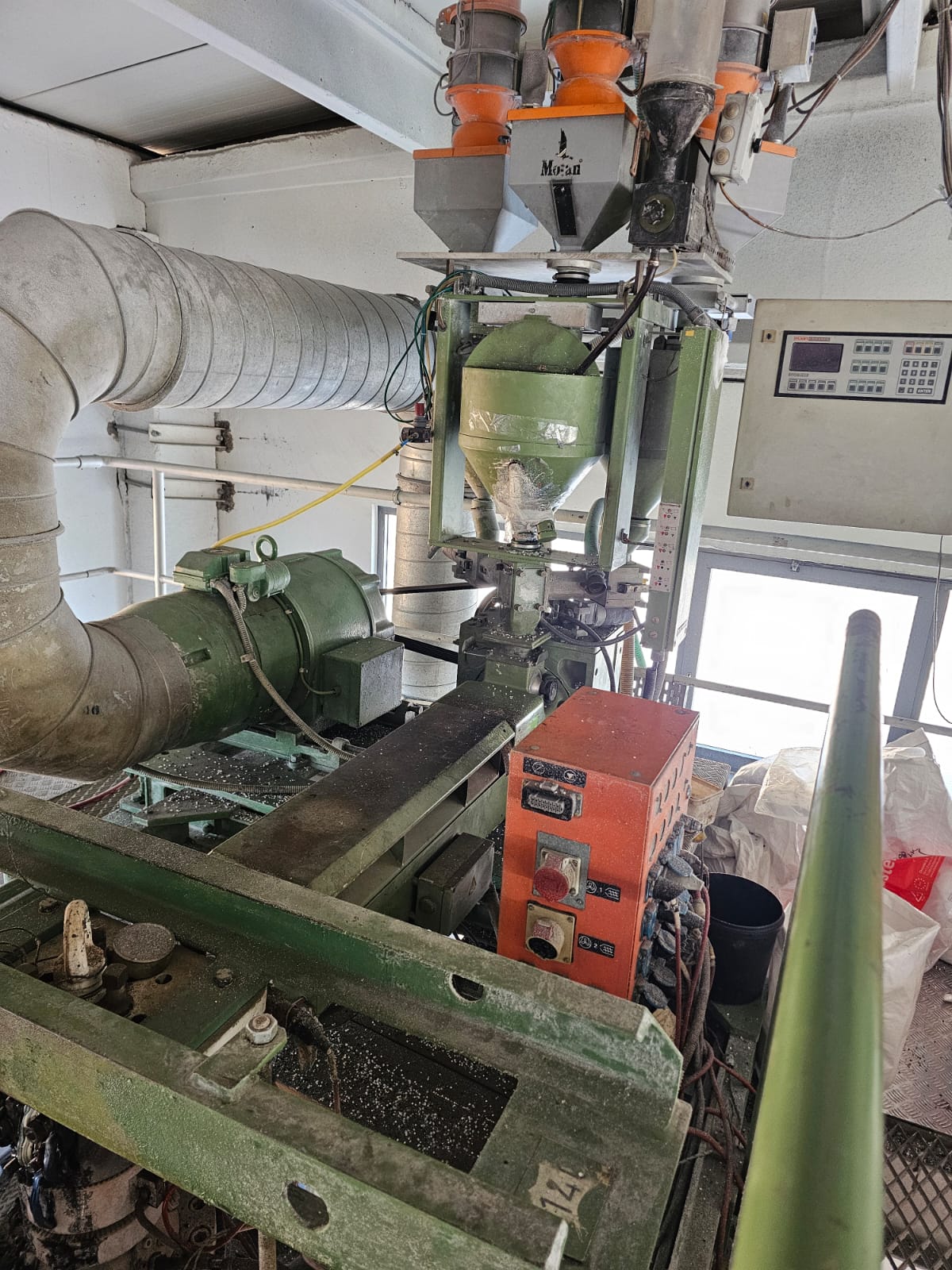

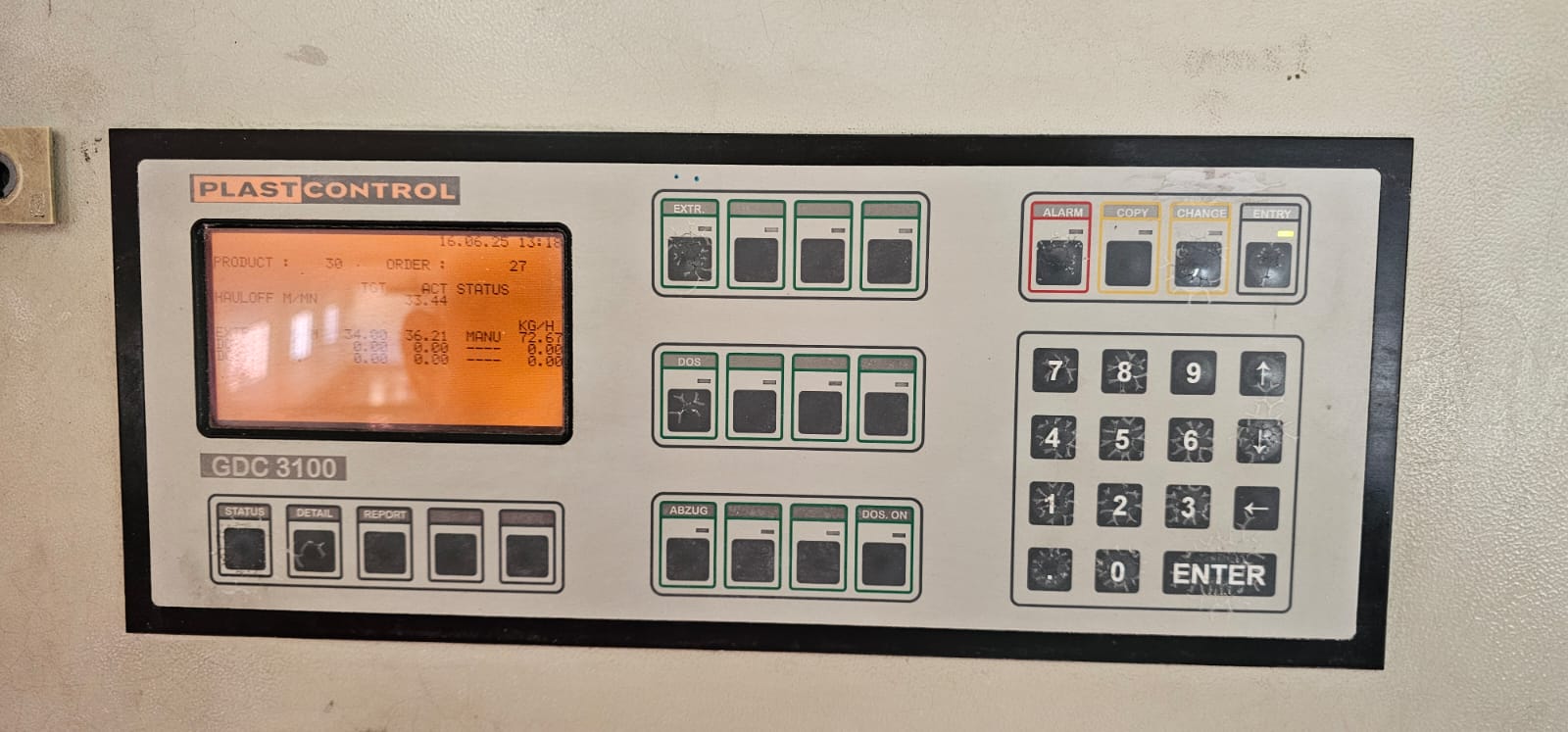

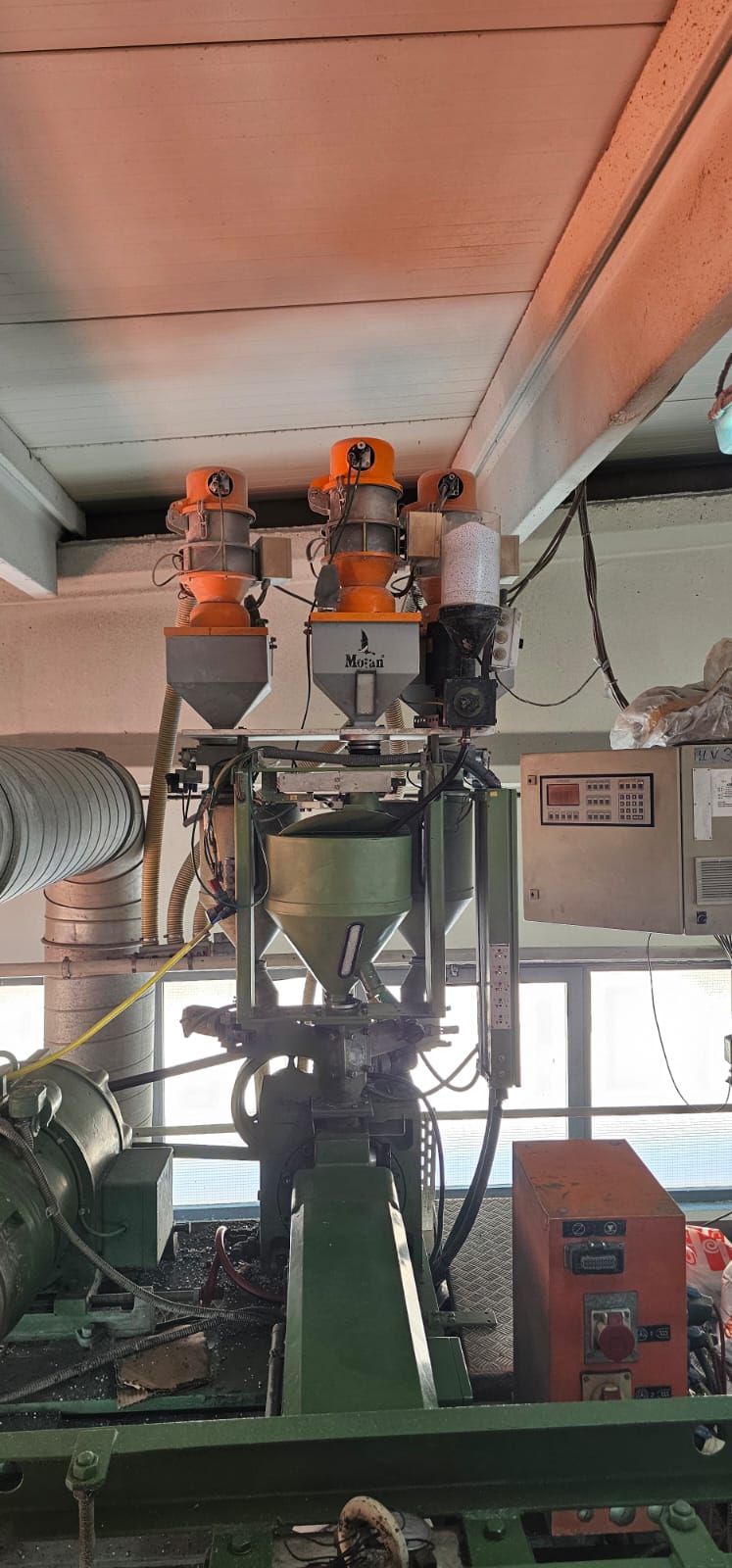

- Dosing system: Plast Control with 3 ingredients dosing system type CDC 3100

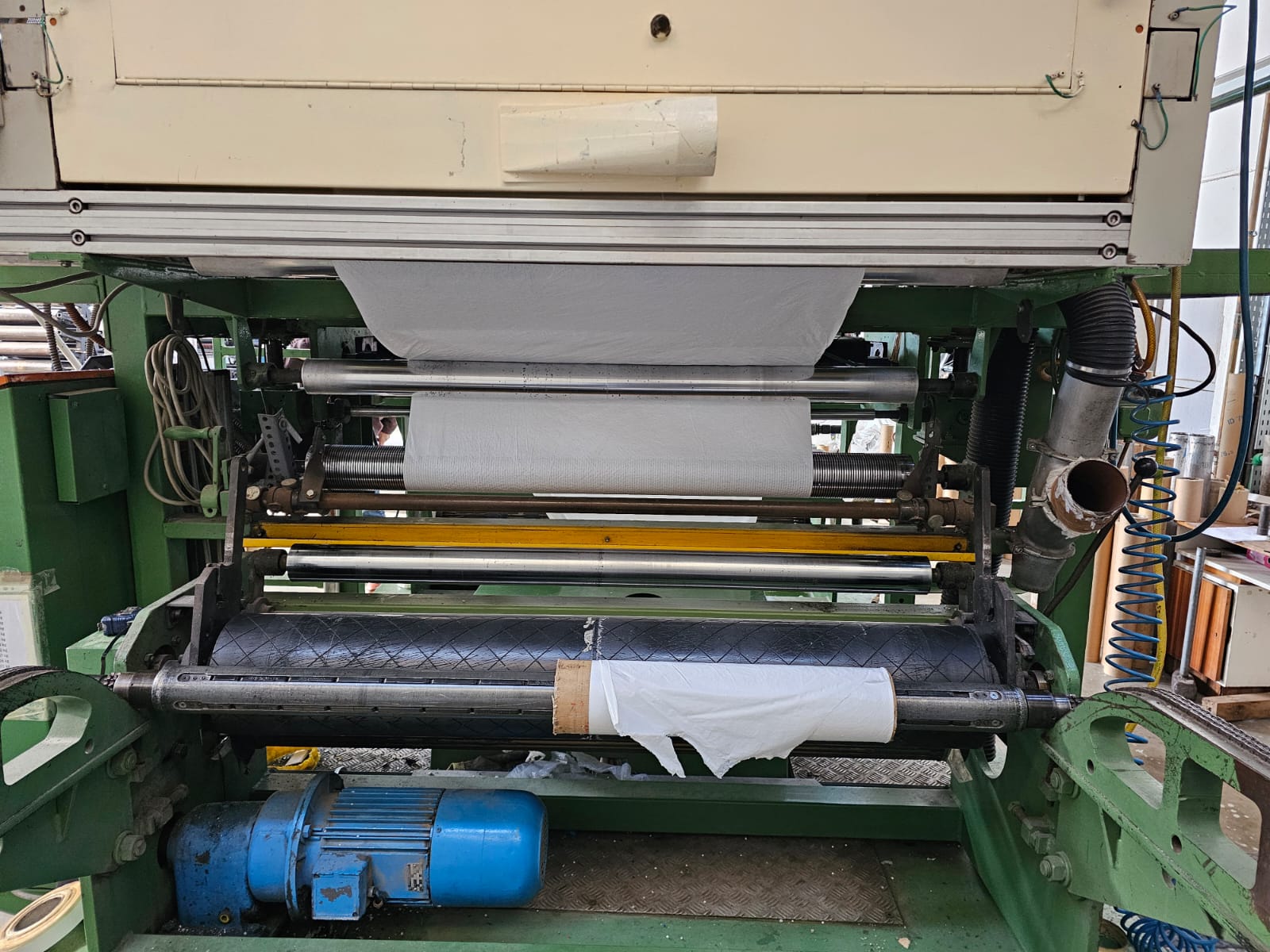

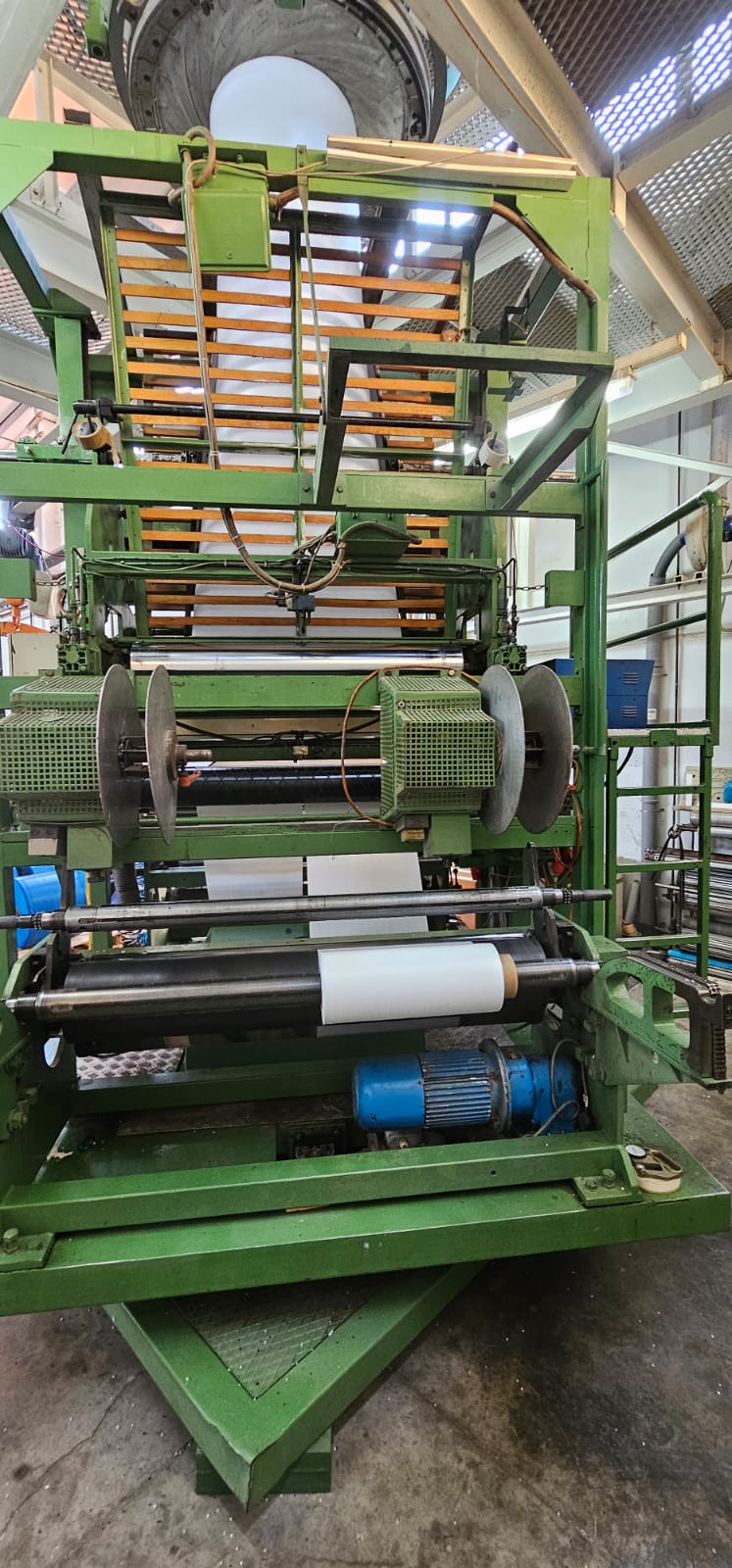

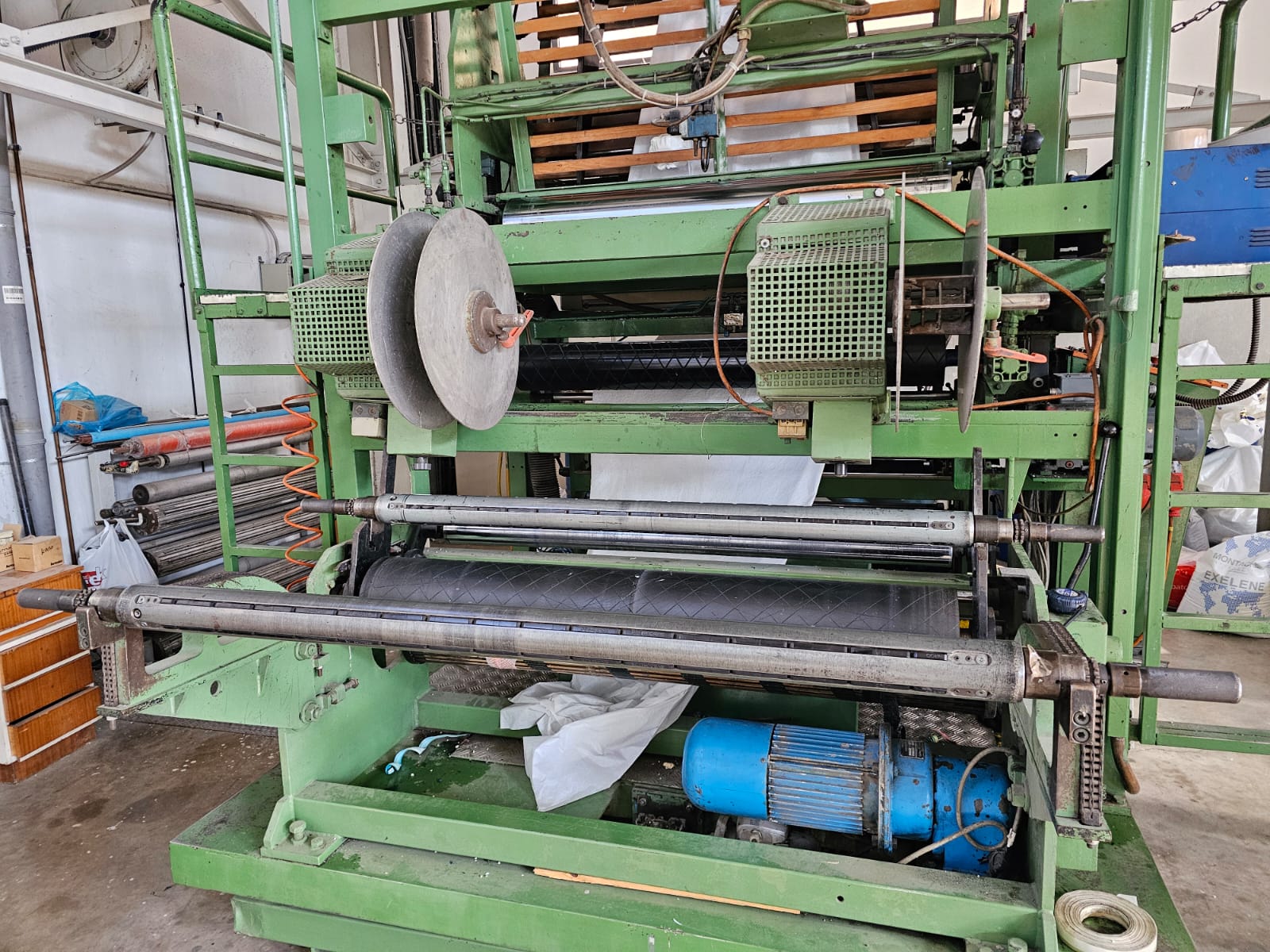

- 2 roll winders: one on each side

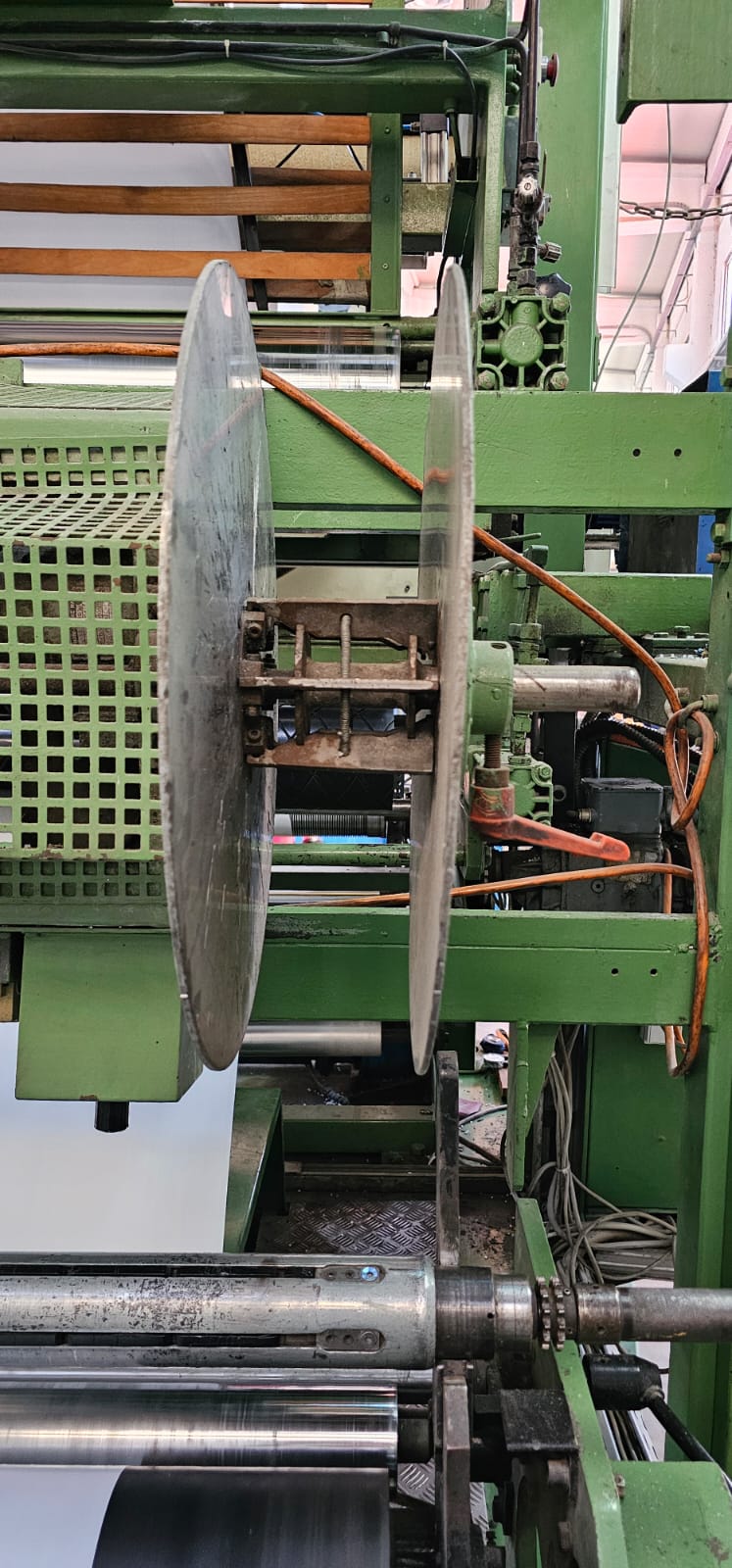

- 2 edge trim collection winders on each winder
- With pneumatic expandable shafts 2 x 76 mm (currently used by the owner). Supplied with the machine additional 4 x 152 mm.
- No film guide (not necessary)
- There is no thickness control system, but the existing PLAST CONTROL system gives good thickness results.
- No extra cooling system

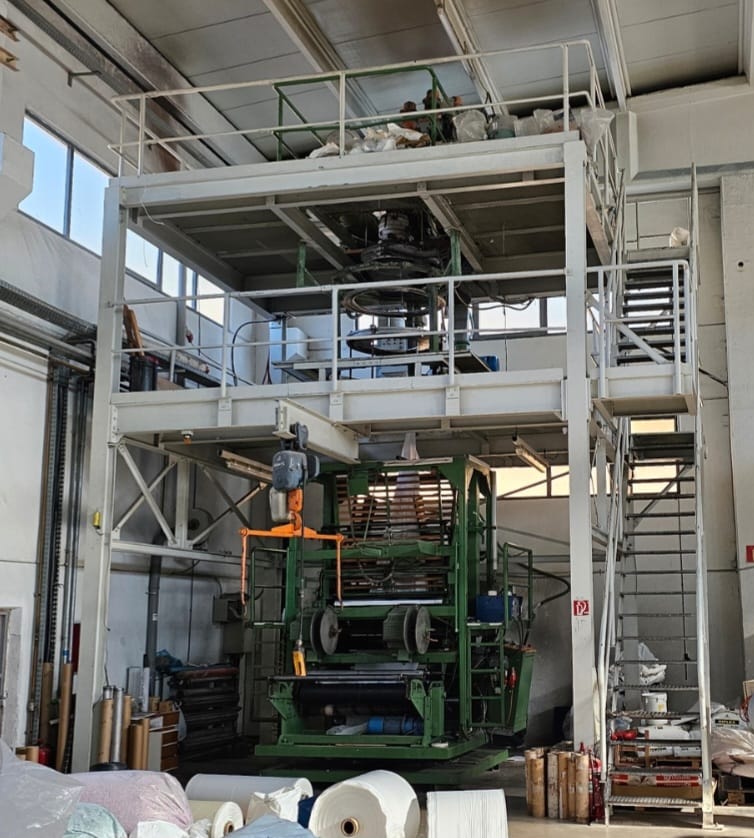

- Steel painted structure with stairs, heavy duty made by Alpine company, for safety of operators
- Manual and electrical schemes are available
- Visible in production
- Immediately available
